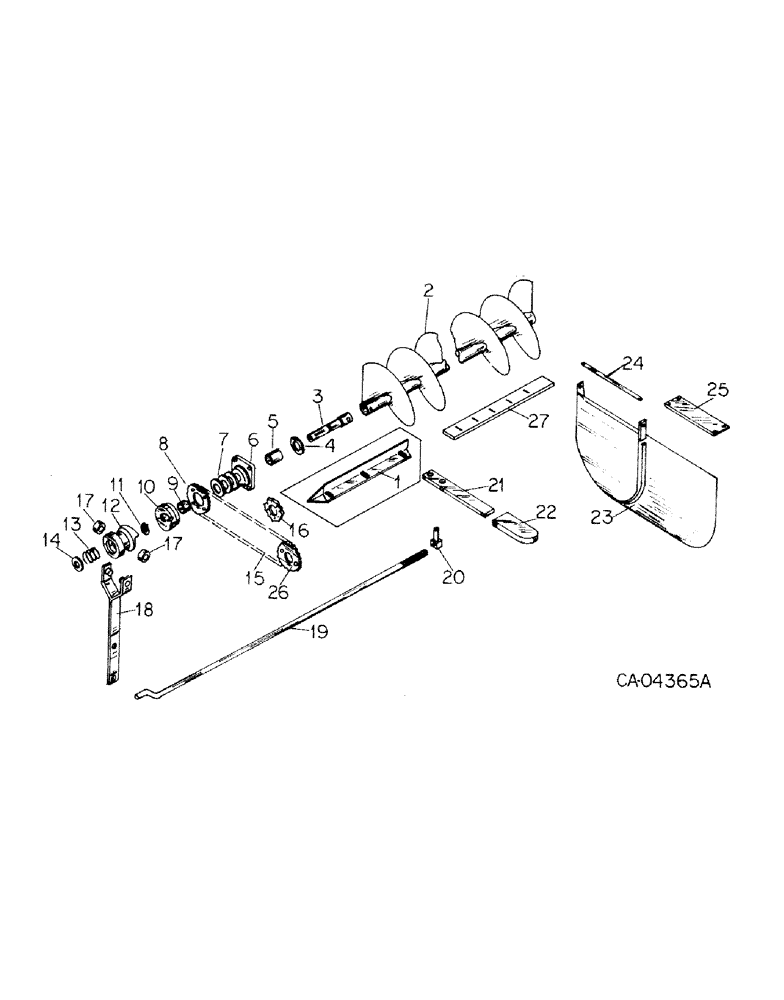

Запчасти Case IH 300 (F-08) - DISCHARGE AUGER ASSY

1

62695C1

ANGLE, discharge auger, serial no. 125 & below

1шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .344 x .688 x .051 znd

3шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

120376

NUT,5/16"-18, G5

3шт.

2

62697C1

AUGER, main discharge, serial no. 125 & below

1шт.

2

73474C1

AUGER, main discharge, serial no. 126 & above

1шт.

3

62698C1

SHAFT, auger drive, serial no. 125 & below

1шт.

3

64933C1

SHIELD, drive RH, serial no. 126 & above

1шт.

180185

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

SCREW, 1/2-13 x 2-1/2 znd hex-hd cap

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

4

576403R1

WASHER, 1-1/4 x 1-7/8 x 14 ga.

1шт.

5

M93915

SPACER,1 1/4" Pipe x 3/4"

1-1/4 x 3/4

1шт.

6

62618C91

BEARING, 1-1/4 flange block

1шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

SCREW, 1/2-13 x 1-1/2 znd hex-hd cap

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

7

576403R1

WASHER, 1-1/4 x 1-7/8 x 14 ga., (2 or as required)

1шт.

8

62699C1

SPROCKET, 18 T

1шт.

9

62701C1

BUSHING

1-1/4 x 1-1/2 x 2

1шт.

10

62700C1

CLUTCH, discharge auger w/serial no. 125 & below

1шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16-18 x 1 znd hex-hd cap

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

10

73475C1

CLUTCH, discharge auger, serial no. 126 & above

1шт.

11

383878R1

SNAP RING,1.25, Int, #125

Ring, Snap, 1.25", Int, #125

1шт.

12

62702C1

CLUTCH, sliding auger, serial no. 125 & below

1шт.

12

73476C1

CLUTCH, sliding auger, serial no. 126 & above

1шт.

13

62703C1

SPRING, clutch

1шт.

14

475715R1

WASHER

3/8 x 1-3/4 x 10 ga

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 znd hex-hd cap

1шт.

15

CHAIN, auger drive, w/serial no. 126 & above use 99 links from 10 ft roll marked 611362R91, plus 1 connecting link 574532R91

1шт.

15

CHAIN, auger drive w/serial no. 125 & below, use 65 links from 10 ft. roll marked 1793D, connecting link 1786D and 1 offset link 1318D

1шт.

16

571441R91

SPROCKET ASSY.,15T

SPROCKET, idler 15T

3шт.

180185

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

SCREW, 1/2-13 x 2-1/2 znd hex-hd cap

3шт.

178374R1

WASHER

17/32 x 1-1/4 x 16 ga. znd

15шт.

120384

WASHER,1/2"

LOCK, 1/2"

3шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

3шт.

17

476876R91

BEARING ASSY,12.71mm ID x 34.92mm OD x 11mm W

BEARING

2шт.

18

62704C1

ARM, discharge auger clutch

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

SCREW, 3/8-16 x 1-1/4 znd hex-hd cap

1шт.

9413953

LOCK NUT,3/8"-16, GB

NUT, 3/8-16 znd hex. lock

1шт.

19

62706C1

ROD, clutch

1шт.

20

475708R1

BOLT

EYEBOLT, clutch adjusting

1шт.

21

62707C1

LEVER, clutch

1шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051 znd flat

1шт.

120169

COTTER PIN,5/32" x 1"

PIN, SPLIT (COTTER), 5/32" x 1"

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

SCREW, 3/8-16 x 1-1/4 znd hex-hd cap

1шт.

9413953

LOCK NUT,3/8"-16, GB

NUT, 3/8-16 znd hex. lock

1шт.

22

488448R1

GRIP

clutch handle

1шт.

23

62708C1

EXTENSION, housing discharge

1шт.

24

62709C1

ROD, hinge

1шт.

120169

COTTER PIN,5/32" x 1"

PIN, SPLIT (COTTER), 5/32" x 1"

2шт.

25

62710C1

BAR, housing top support

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

SCREW, 5/16-18 x 3/4 znd hex-hd cap

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

120376

NUT,5/16"-18, G5

4шт.

26

62640C1

KIT

SPROCKET, 18T, refer to main drive this section

1шт.

27

73472C1

BAR, auger, serial no. 126 & above

1шт.
