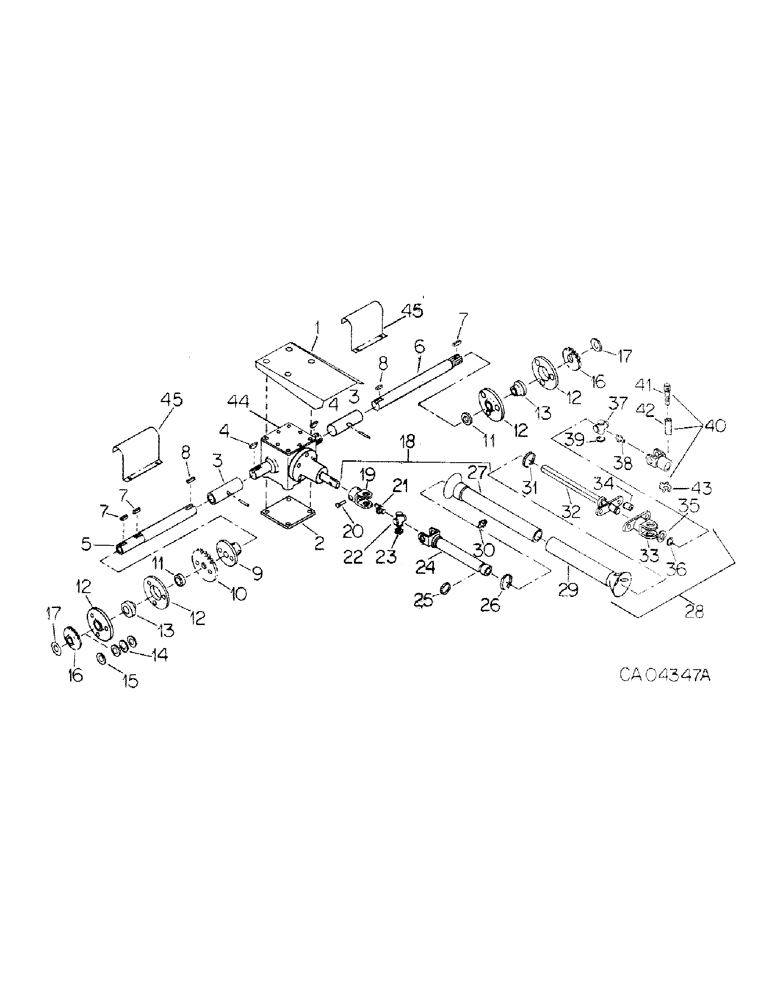

Запчасти Case IH 300 (F-03) - MAIN DRIVE

1

62633C1

SHIELD, PTO drive

1шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16-18 x 1 znd hex-hd cap

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .344 x .688 x .051 znd

16шт.

2

62634C1

PLATE, mounting

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

SCREW, 1/2-13 x 1-1/4 znd hex-hd cap

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

178374R1

WASHER

17/32 x 1-1/4 x 16 ga. znd

4шт.

3

62635C1

COUPLER, shaft

2шт.

657196R1

PIN

1/4 x 2 slt-spring

2шт.

4

657206R1

KEY,3/8" Sq x 2 3/8", Par

3/8 x 2-3/8 sq parallel

2шт.

5

62637C1

SHAFT, gear box left

1шт.

6

62639C1

SHAFT, gear box right

1шт.

7

Q1443

KEY,5/16" Sq x 1 1/2", Par

5/16 x 1-1/2 sq parallel

3шт.

8

13611A

KEY,5/16" Sq x 2 1/2", Par

5/16 x 2-1/2 sq parallel

2шт.

9

487848R1

HUB

shear sprocket

1шт.

107327

SET SCREW,Sq Hd, 5/16"-18 x 1"

SCREW, 5/16-18 x 1 znp sq-hd cup-pt set

1шт.

NLS

NO LONGER SERVICED

5/16-18 znd hex. jam

1шт.

10

62640C1

KIT

SPROCKET, 18T

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

SCREW, 3/8-16 x 1-1/4 znd hex-hd cap

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

11

487928R91

BEARING SET,2.8348" OD x 1.76"

COLLAR W/SET SCREW, bearing locking

2шт.

12

565631R1

BEARING CAP,2.441" ID x 4.4375" OD x 0.34375"

bearing mounting

4шт.

13

540061R91

BEARING ASSY,2.09" OD x 1.563"

FLANGETTE, bearing

2шт.

12872R1

BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd

CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd

6шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

120376

NUT,5/16"-18, G5

6шт.

14

488445R1

WASHER

1-1/4 x 1-3/4 x 10 ga., (3 or as required)

1шт.

15

22050R1

WASHER

1-1/4 x 1-3/4 x 16 ga., (1 or as required)

1шт.

16

62641C1

SPROCKET, 14 T

2шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 znd hex-hd cap

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

17

475715R1

WASHER

.406 x 1.75 x 10 ga.

14шт.

18

62642C91

JOINT ASSY, rear half

1шт.

19

62643C1

YOKE

1шт.

20

62644C1

PIN, 5/16 x 2-1/2 znd

1шт.

120169

COTTER PIN,5/32" x 1"

PIN, SPLIT (COTTER), 5/32" x 1"

1шт.

21

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

FITTING, 1/8-27 65 deg. angle lub

1шт.

22

480486R91

CROSS

KIT, center cross

1шт.

23

606177R1

SNAP RING

RING, snap

4шт.

24

62645C1

YOKE AND SHAFT

1шт.

25

668341R1

BEARING

1шт.

26

668336R1

NYLON BEARING,0.317"

nylon

1шт.

27

62646C1

SHIELD, inner

1шт.

28

62647C91

JOINT ASSY, front half

1шт.

29

62648C1

SHIELD, outer

1шт.

30

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING, 1/4-28 NF, 2 straight

1шт.

31

668336R1

NYLON BEARING,0.317"

nylon

1шт.

32

62649C1

YOKE AND SHAFT

1шт.

33

62741C1

YOKE

1шт.

34

62608C1

BUSHING

1шт.

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

SCREW, 5/16-18 x 2 znd hex-hd cap

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

120376

NUT,5/16"-18, G5

1шт.

35

478856R1

WASHER, thrust

1шт.

36

454417R1

SNAP RING,#100, Ext

Ring, Snap, #100, Ext

1шт.

37

480486R91

CROSS

KIT, center cross

1шт.

38

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

FITTING, 1/8-27 65 deg. angle lub

1шт.

39

606177R1

SNAP RING

RING, snap

4шт.

40

459463R91

YOKE

ASSY

1шт.

41

455346R21

PIN

ASSY, lock

1шт.

42

455347R1

VALVE SPRING

SPRING, lock pin

1шт.

43

661406R1

LOCK WASHER,4.83mm ID x 18.542mm OD x 1.65mm Thk

X-WASHER, lock pin

1шт.

44

GEAR BOX ASSY, for list of components see gear box this section

1шт.

45

64932C1

SHIELD, coupler, serial no. 1968 & above

2шт.

180018

CONNECTING LINK

SCREW, 1/4-20 x 5/8 znd hex-hd cap

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

4шт.
