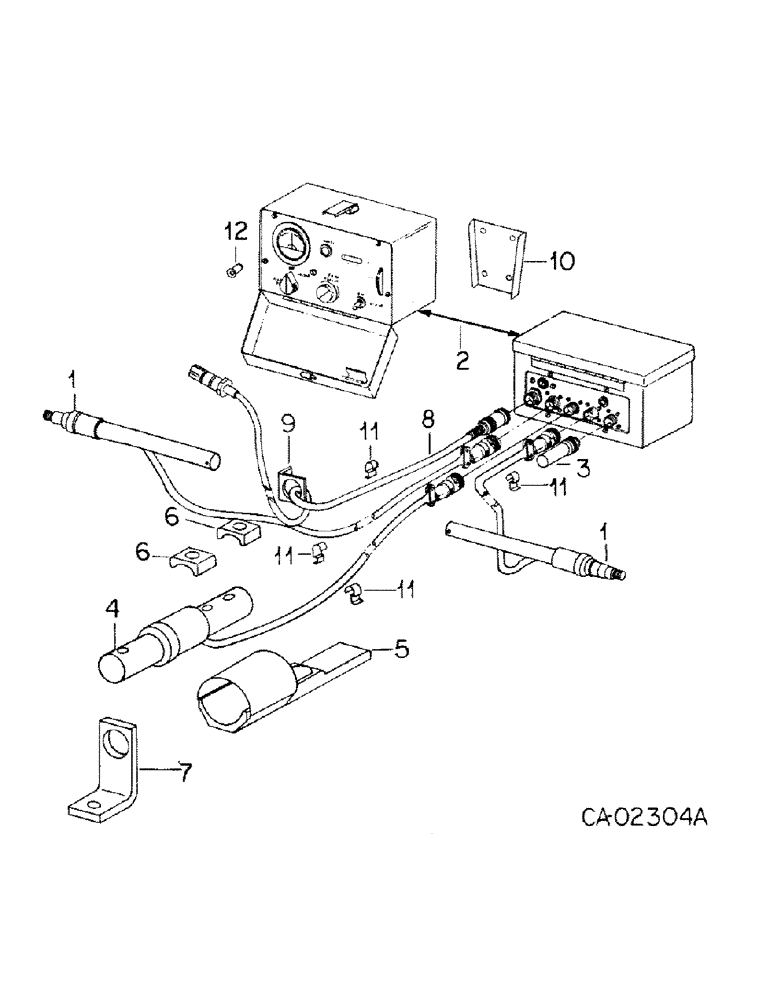

Запчасти Case IH 300 (F-13) - RATION-RITE ELECTRONIC SCALE

1

SPINDLE, refer to main frame this section

1шт.

2

62755C91

GAUGE

UNIT, indicator, 15000 lbs

1шт.

2

62756C91

GAUGE

UNIT, indicator, 30000 lbs

1шт.

142630

FUSE

cartridge type AGC-5

1шт.

3

548144R1

ADAPTER

indicator unit

1шт.

4

62757C1

BAR, hitch weight, serial no. 1165 and below

1шт.

4

64649C1

HITCH ASSY

BAR, hitch weight, serial no. 1166 and above

1шт.

5

64656C1

PAD AND SHIELD MOUNTING, replaces 548146R1

1шт.

6

548147R1

PAD, bolt shoulder

2шт.

271779

STRIP,Hex, 3/4" - 10 x 4", Gr 5

SCREW, 3/4-10 x 4 znd hex-hd cap

1шт.

19866R1

BOLT,Hex, 3/4" - 10 x 6 1/2", Gr 5

SCREW, 3/4-10 x 6-1/2 znd hex-hd cap

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.

280954

NUT,3/4"-10, G5

2шт.

7

548148R1

CLEVIS

1шт.

8

548149R1

CABLE

CORD, 12V power

1шт.

9

(Not used in this application)

1шт.

10

548151R1

BRACKET

indicator mounting

1шт.

451195

SCREW,Slotted Pan Hd, 1/4"-20 x 1"

1/4-20 x 1/2 znd pan-hd slt mach

4шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4-20 whiz lock

4шт.

11

548152R1

CLIP

wire

12шт.

12

548153R1

INDICATOR

BULB, indicator alarm light

1шт.
