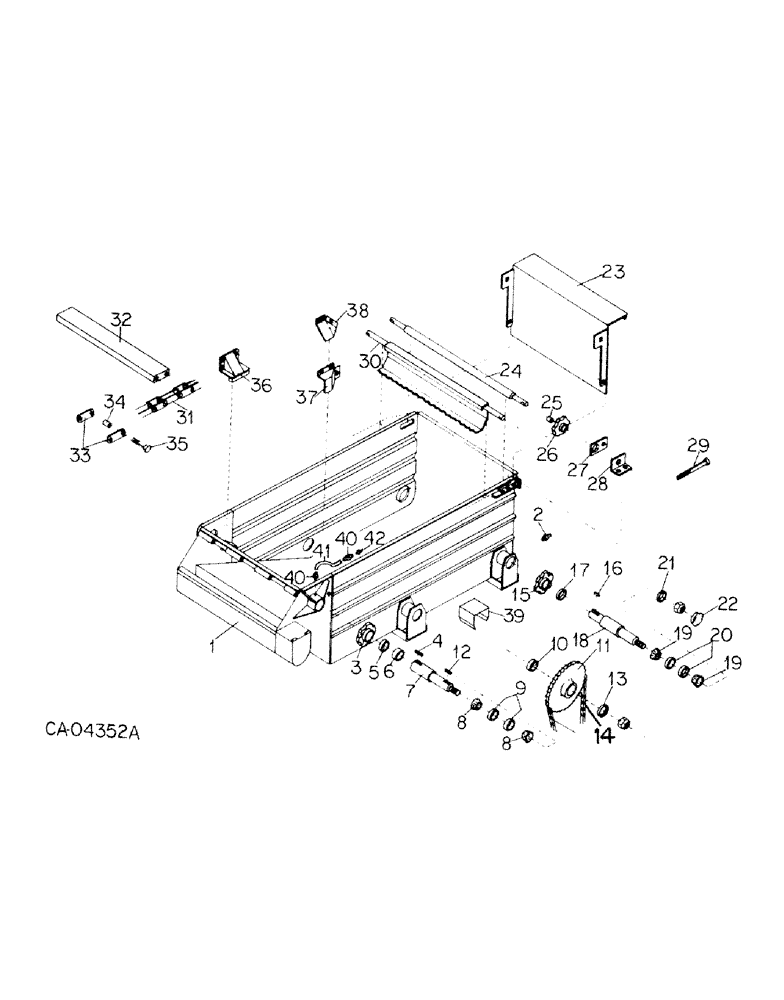

Запчасти Case IH 200 (E-06) - BOX AND APRON DRIVE ASSY

1

62655C1

BOX ASSY

1шт.

2

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

4шт.

3

62657C1

SPROCKET, 8T

2шт.

4

62687C1

KEY, 1/2 x 3-1/4 sq. parallel

2шт.

5

154615H1

OIL SEAL

SEAL

2шт.

6

62689C1

SPACER

2шт.

7

62658C1

SPINDLE, drive

2шт.

8

62692C91

BEARING ASSY,1.9685" ID x 4.1339" OD x 1.4567"

ASSY, cone

4шт.

9

62693C1

BEARING ASSY,1.9685" ID x 4.1339" OD x 1.4173"

BEARING, cup

4шт.

10

117048C1

SEAL, oil, replaces 154615H1

2шт.

ref # 10, 117048c1 seal , this seal is retired, specs are vendor no. c/r 288828, o.d. 4.125", i.d . 2.779, width .812 cam djo 11/23/99

1шт.

11

62613C1

SPROCKET, 103T

2шт.

12

62688C1

KEY, 1/2 x 2-3/4 sq. parallel

2шт.

13

62690C1

WASHER, 3/4 x 3 x 3/16 flat

6шт.

427640

SLOTTED NUT,3/4"-16, G5

NUT, 3/4-16 znd slt-hex.

2шт.

103411

SPLIT (COTTER), 3/16" x 2"

2шт.

14

CHAIN, drive, use 127 links from 10 ft. roll marked, 1793D, and 1 connecting link, 1786D

1шт.

15

62664C1

SPROCKET, chain slat

4шт.

16

Q55

KEY,3/8" Sq x 2", Par

3/8 x 2 sq. parallel

4шт.

17

62610C1

OIL SEAL,57.15mm ID x 77.88mm OD x 6.35mm Thk

sprocket

4шт.

18

62659C1

SPINDLE, idler

4шт.

19

663557R91

BEARING ASSY,1.625" ID x 2.892" OD x 0.77"

BEARING ASSY, cone

8шт.

20

663558R1

BEARING CUP

BEARING, cup

8шт.

21

59120C1

WASHER, flat

4шт.

427651

SLOTTED NUT,1"-14, G5

NUT, 1-14 slt-hex.

4шт.

NLS

NO LONGER SERVICED

SPLIT (COTTER), 3/16" x 2"

4шт.

22

62686C1

CAP

hub

4шт.

23

62660C1

PLATE, rear baffle

1шт.

598813R1

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5

BOLT, 1/2-13 x 1 znd sq-nk crg

2шт.

465567R1

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

BOLT, 1/2-13 x 1-1/2 znd sq-nk crg

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

24

62662C1

SHAFT, idler adjuster

1шт.

25

597512R1

BUSHING

2шт.

26

62665C1

SPROCKET, idler

2шт.

27

62666C1

PLATE, baffle mounting

2шт.

28

62667C1

BRACKET, tightener left hand

1шт.

28

62668C1

BRACKET, tightener right hand

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

SCREW, 1/2-13 x 1-1/4 znd hex-hd cap

4шт.

178374R1

WASHER

17/32 x 1-1/4 x 16 ga znd

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

29

QB3653

BOLT, tightener adjusting

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

30

62669C1

SLAT, cleaner

1шт.

178374

SPARE PART

WASHER, 17/32 x 1-1/4 x 16 ga. znd

2шт.

120169

COTTER PIN,5/32" x 1"

PIN, SPLIT (COTTER), 5/32" x 1"

2шт.

31

CHAIN ASSY, apron, discontinued for service

1шт.

32

62673C1

SLATS

9шт.

33

62675C1

BAR ASSY.

BAR, side, (use as required or 504)

1шт.

34

72816C1

BUSHING

SPACER, roller, (use as required or 252)

1шт.

35

62676C1

BOLT,Hex, 5/8" - 11 x 3.25", Gr 5

chain, (use as required or 216)

1шт.

35

62677C1

BOLT

slat, (use as required or 36)

1шт.

9413960

LOCK NUT,5/8"-11, GB

NUT, 5/8-11 PHC hex. lock (252)

1шт.

36

62678C1

GUIDE, chain

2шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

SCREW, 1/2-13 x 1-1/4 znd hex-hd cap

8шт.

120384

WASHER,1/2"

LOCK, 1/2"

8шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

8шт.

37

62679C1

PLATE, chain cleaner LH

1шт.

37

62680C1

PLATE, chain cleaner RH

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

SCREW, 1/2-13 x 1-1/4 znd hex-hd cap

6шт.

178374R1

WASHER

17/32 x 1-1/4 x 16 ga znd

12шт.

120384

WASHER,1/2"

LOCK, 1/2"

6шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

6шт.

38

62681C1

PLATE, cleaner LH

1шт.

38

62682C1

PLATE, cleaner RH

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

SCREW, 3/8-16 x 1-1/4 znd hex-hd cap

6шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051 znd

12шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

120377

NUT,3/8" - 16, Gr 5

6шт.

39

62683C1

COVER, hub channel

4шт.

40

73795C1

FITTING, 1/8-27 hose, w/serial no. 234 & above

4шт.

41

73482C1

HOSE, w/serial no. 234 & above

2шт.

42

87414

LUBE NIPPLE,1/4" - 28

FITTING, 1/4-28 str lub, w/serial no. 234 & above

2шт.
