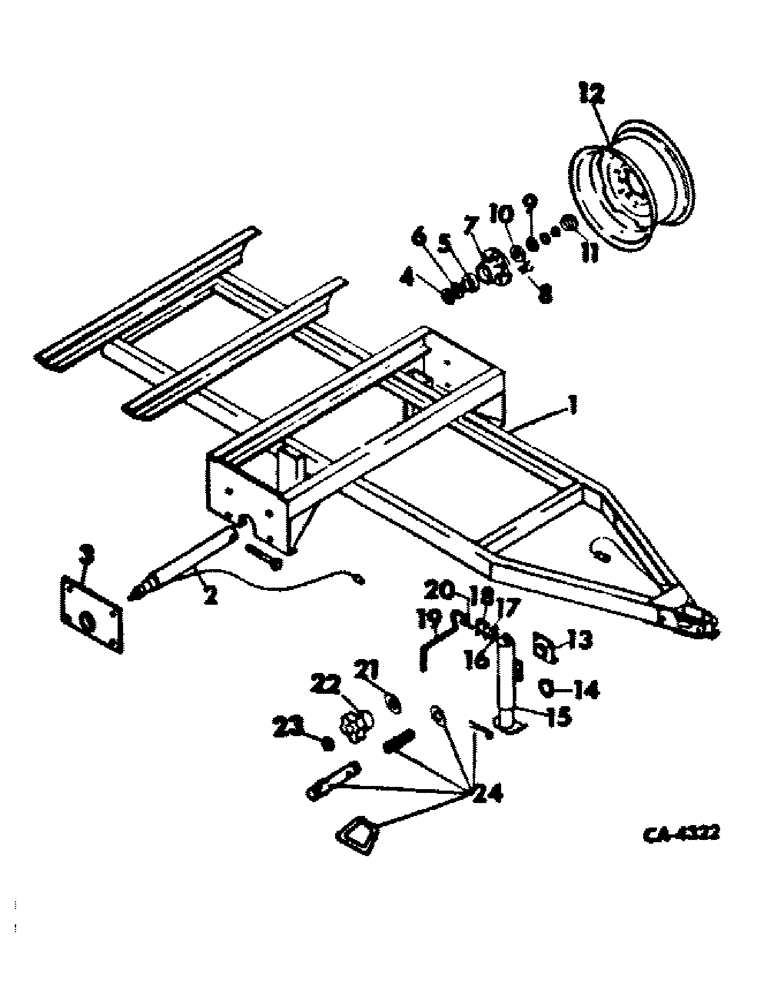

Запчасти Case IH 200 (E-02) - MAIN FRAME, AXLE AND JACK, TRAILER MOUNTED

1

62603C1

FRAME, main

1шт.

2

62605C1

SPINDLE W/WIRE, 24-1/2 in. long

2шт.

2

64953C1

SPINDLE, plain, 31-5/16 in. long, for machines w/plain spindles in lieu of axle weigh bars

2шт.

180194

BOLT,Hex, 1/2" - 13 x 4", Gr 5

SCREW, 1/2-13 x 4 znd hex-hd cap

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

3

62607C1

BRACKET, spindle mounting

2шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

SCREW, 1/2-13 x 1-1/2 znd hex-hd cap

8шт.

120384

WASHER,1/2"

LOCK, 1/2"

8шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

8шт.

4

62610C1

OIL SEAL,57.15mm ID x 77.88mm OD x 6.35mm Thk

inner bearing

2шт.

5

663558R1

BEARING CUP

BEARING, inner cup

2шт.

6

663557R91

BEARING ASSY,1.625" ID x 2.892" OD x 0.77"

BEARING ASSY, inner cone

2шт.

7

62615C1

HUB, axle

2шт.

389075R1

BOLT,Serr, 9/16" - 18 x 1.812"

wheel hub

12шт.

8

663106R1

SPECIAL NUT

NUT, wheel hub bolt

12шт.

9

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

BEARING ASSY, outer cone

2шт.

10

651817R1

BEARING CUP

BEARING, outer cup

2шт.

10

651817R1GV

BEARING CUP

Value, Bearing Cup

2шт.

131017

WASHER

13/16 x 1-1/2 x 14 ga.

2шт.

427640

SLOTTED NUT,3/4"-16, G5

NUT, 3/4-16 slt-hex.

2шт.

103398

COTTER PIN,5/32" x 1 1/2"

Pin, Split (Cotter), 5/32" x 1 1/2"

2шт.

11

518842R1

CAP

hub

2шт.

12

62619C1

WHEEL, W-11L 16.1, for 13.5 x 16.1 tire

2шт.

12

542957R1

RIM

WHEEL, 15 x 8LB, for 10.0 x 15 tire

2шт.

13

62620C1

BRACKET, jack mounting

1шт.

14

684645R1

SNAP RING,#250, Ext

Ring, Snap, #250, Ext

1шт.

15

62621C91

JACK ASSY

1шт.

16

277395R1

RETAINER

X-WASHER

1шт.

17

59104C1

C-WASHER

1шт.

18

59105C1

SLEEVE

1шт.

19

59103C1

HANDLE

jack

1шт.

20

59106C1

PIN

jack handle

1шт.

21

59102C1

WASHER

knob handle

1шт.

22

59101C1

KNOB, handle

1шт.

23

59100C1

CAP, handle

1шт.

24

62622C1

PIN ASSY, lock

1шт.
