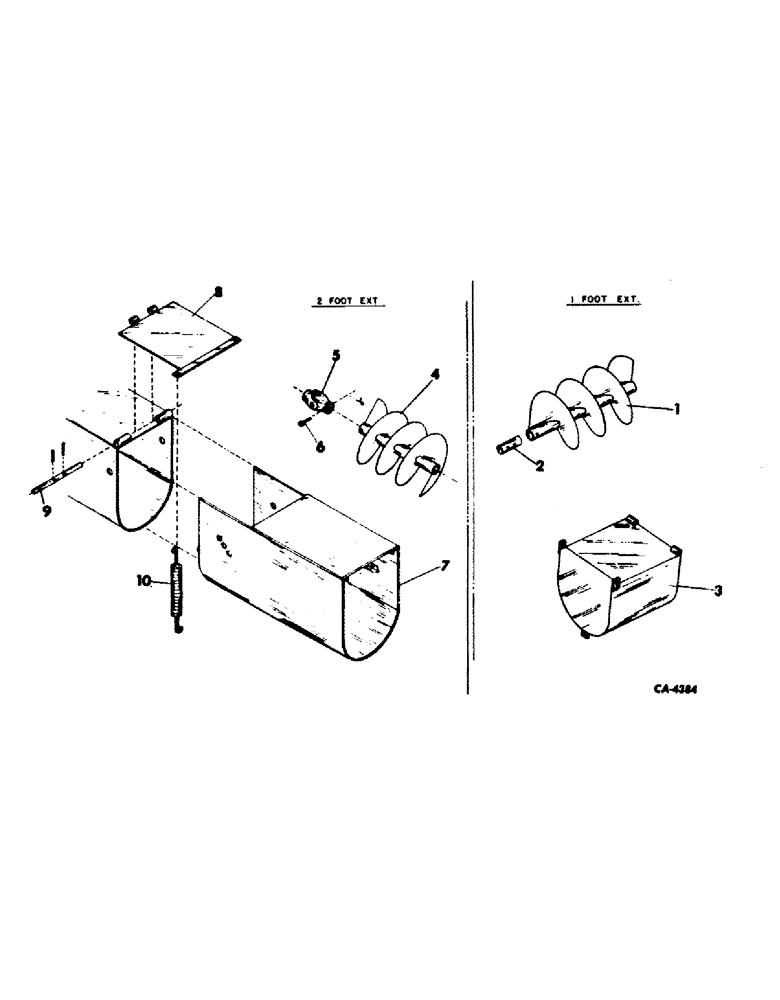

Запчасти Case IH 200 (E-12) - AUGER EXTENSIONS

1

62744C1

EXTENSION, one foot auger

1шт.

2

62745C1

PLUG, extension

1шт.

3

62746C1

HOUSING, discharge extension

1шт.

4

62747C1

EXTENSION, two foot auger w/serial no. 233 & below

1шт.

4

73483C1

EXTENSION, two foot auger w/serial no. 234 & above

1шт.

5

62749C1

JOINT

1шт.

6

62748C1

PIN, 5/16 x 1-3/4 clevis

2шт.

120169

COTTER PIN,5/32" x 1"

PIN, SPLIT (COTTER), 5/32" x 1"

2шт.

7

62750C1

HOUSING, extension

1шт.

8

62751C1

DOOR, housing extension

1шт.

9

62752C1

ROD, door

1шт.

17175R1

LOCK PIN,3/16" x 1", Slotted

PIN, 3/16" x 1", Slotted

2шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

1/2-13 x 1 znd hex-hd cap

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

10

62754C1

SPRING, extension door

1шт.
