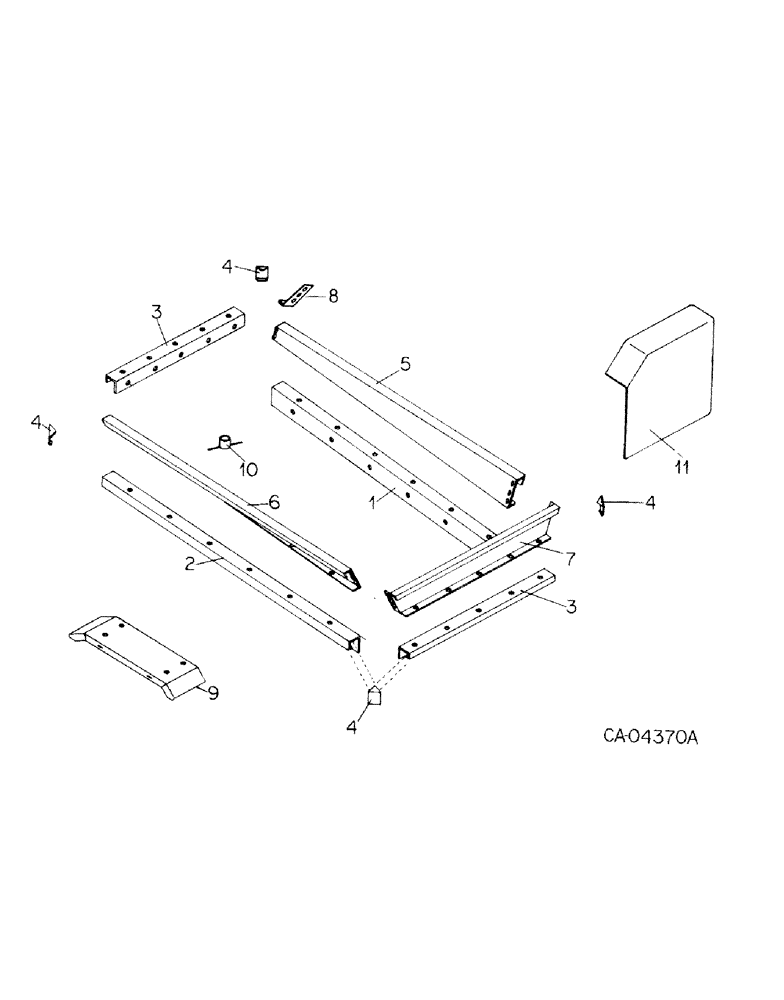

Запчасти Case IH 200 (E-10) - SIDE BOARDS

1

62718C1

ANGLE, side reinforcement LH

1шт.

2

62719C1

ANGLE, side reinforcement RH

1шт.

3

62720C1

ANGLE, front and rear reinforcement

2шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8-16 x 1 znd sq-nk crg

38шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051 znd

38шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

38шт.

120377

NUT,3/8" - 16, Gr 5

38шт.

4

62724C1

ANGLE, corner reinforcement

4шт.

5

62725C1

BOARDS, side LH

1шт.

6

62726C1

BOARDS, side RH

1шт.

7

62727C1

SPARE PART

BOARDS, front

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8-16 x 1 znd sq-nk crg

34шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051 znd

34шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

34шт.

120377

NUT,3/8" - 16, Gr 5

34шт.

8

62731C1

BRACKET, side board

2шт.

9

73477C1

FENDER, LH, w/serial no. 234 & above

1шт.

9

73478C1

FENDER, RH, w/serial no. 234 & above

1шт.

485734R1

CARRIAGE BOLT,Short NK, 1/2"-13 x 1 1/4", G5, Full Thd

BOLT, 1/2-13 x 1-1/4 znd sq-nk crg

4шт.

178374R1

WASHER

17/32 x 1-1/4 x 16 ga. znd

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

10

62736C1

CAP, drain

1шт.

11

62737C1

SHIELD, drive LH

1шт.

11

62738C1

SHIELD, drive RH, serial no. 1967 & below

1шт.

11

64933C1

SHIELD, drive RH, serial no. 1968 & above

1шт.

62612C1

HINGE, rear shield

4шт.

62617C1

HINGE, front shield

2шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT, 5/16 x 3/4 znd sq-nk crg

6шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 C-Z lock

6шт.

62758C1

PIN, door shield

2шт.
