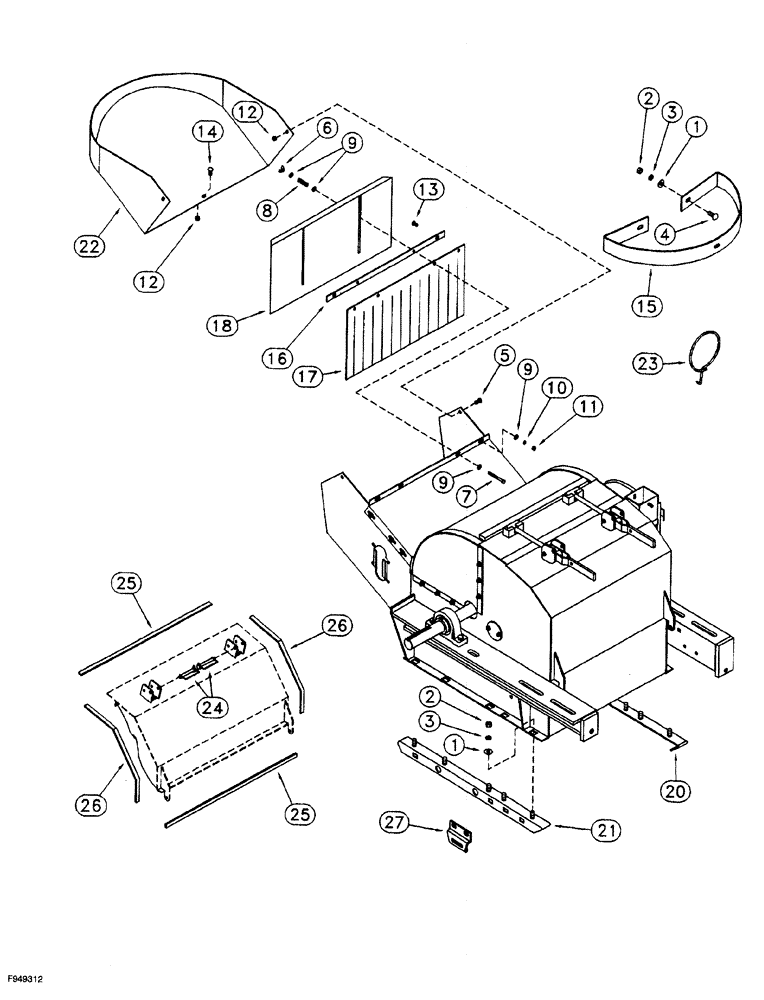

Запчасти Case IH 1360 (9B-028) - HAMMERMILL THROAT ASSEMBLY, 1360 MACHINES (12) - CHASSIS

1

495-21056

WASHER,1/2"

flat, 9/16 x 1-3/8 x 7/64 inch

12шт.

2

425-108

NUT,1/2" - 13, Gr 5

12шт.

3

80679

LOCK WASHER,1/20.507 CST ZND

12шт.

4

434-816

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5

carriage, 1/2 NC x 1 inch

2шт.

5

413-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

2шт.

6

129-419

WING NUT,5/16"-18

5/16 inch NC

2шт.

7

413-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

2шт.

8

475801R1

SPRING

compression

2шт.

9

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 3/32")

8шт.

10

492-11031

LOCK WASHER,5/16"

2шт.

11

425-105

NUT,5/16"-18, G5

2шт.

12

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

3шт.

13

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

slotted truss head, 5/16 NC x 1 inch

2шт.

14

434-510

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 5/8", Gr 5

5/16 NC x 5/8 inch

1шт.

15

75908C1

SUPPORT

screen

1шт.

16

79794C1

STRAP

CLEVIS rod end

1шт.

17

79898C1

FLAP

throat

1шт.

18

79825C1

PLATE

feed gate

1шт.

20

175781A1

ANGLE

rear

1шт.

21

135600A1

ANGLE

hammermill

1шт.

22

135595A1

CONTAINER

BASKET, 26 inch, hammermill

1шт.

23

475805R1

HOOK

screen

1шт.

24

76381C1

PIN

snap

2шт.

25

79740C1

SEALING STRIP

STRIP, 1/4 x 3/4 x 26 inch

2шт.

26

1281166C1

SEALING STRIP

sealing, 3/8 x 1/4 x 18-1/2 inch

2шт.

27

183982A1

BRACKET

idler

1шт.

79867C1

SCREEN

1/8 inch diameter holes

1шт.

79868C1

SCREEN

3/16 inch diameter holes

1шт.

79869C1

SCREEN

1/4 inch diameter holes

1шт.

79870C1

SCREEN

5/16 inch diameter holes

1шт.

79871C1

SCREEN

3/8 inch diameter holes

1шт.

79872C1

SCREEN

1/2 inch diameter holes

1шт.

79873C1

SCREEN

5/8 inch diameter holes

1шт.

79874C1

SCREEN

3/4 inch diameter holes

1шт.

79875C1

SCREEN

1 inch diameter holes

1шт.

79876C1

SCREEN

1-1/4 inch diameter holes

1шт.

79877C1

SCREEN

1-1/2 inch diameter holes

1шт.

79878C1

SCREEN

2 inch diameter holes

1шт.
