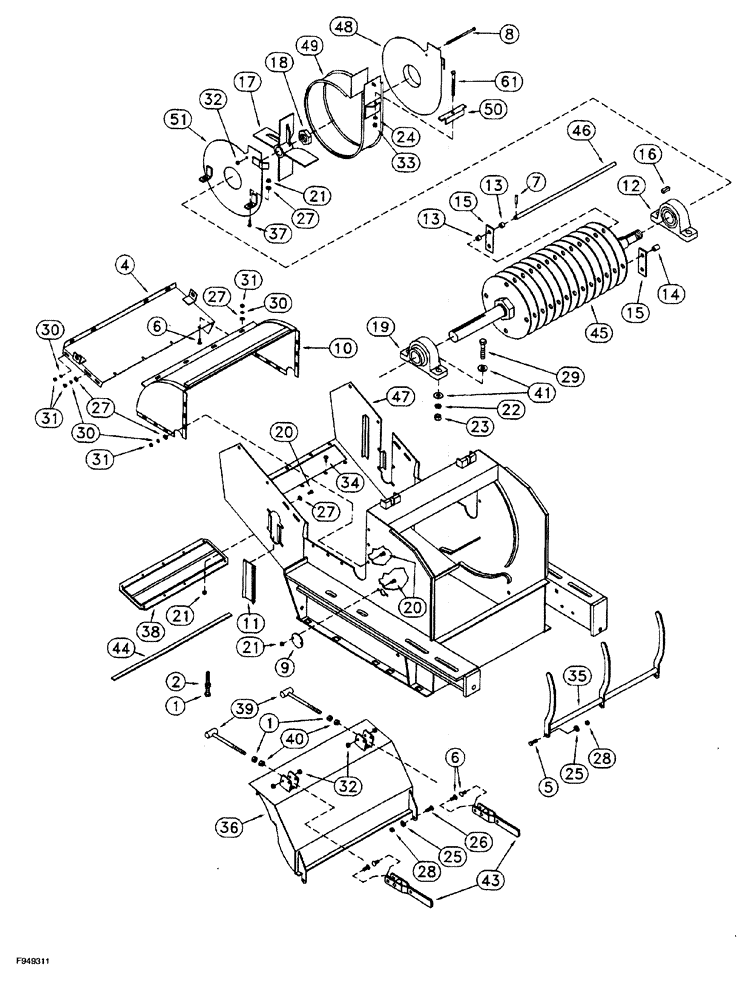

Запчасти Case IH 1360 (9B-026) - HAMMERMILL ASSEMBLY, 1360 MACHINES (12) - CHASSIS

1

425-108

NUT,1/2" - 13, Gr 5

4шт.

2

413-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

4шт.

3

413-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

hex, 3/8 NC x 3-1/2 inch

1шт.

4

133817A1

COVER

roll feed

1шт.

5

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

6

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

8шт.

7

38-11620

PIN,1/4" x 1 1/4", Slotted

8шт.

8

413-580

BOLT,Hex, 5/16" - 18 x 5", Gr 5

1шт.

9

479809R1

BOLT

PLATE hammer rod removal

1шт.

10

133816A1

HOOD

hammermill

1шт.

11

475848R1

COVER

hopper

2шт.

12

475764R91

BEARING ASSY,5" OD x 2.38"

pillow block

1шт.

13

555696R1

SPACER,3/4" Pipe x 5/8"

tubular, 3/4 x 5/8 inch

48шт.

14

582542R1

SPACER,3/4" Pipe x 1 1/4"

tubular, 3/4 x 1-1/4 inch

24шт.

15

476672R91

HAMMER

TOOL, set of two

24шт.

15

79746C91

TOOL hammer, set of 48

1шт.

16

Q87

KEY,3/8" Sq x 1 1/2", Par

square, 3/8 x 1-1/4 inch

1шт.

17

475768R1

FAN

dust collector

1шт.

18

219779

CLUTCH

hex, jam, 1-1/2 inch NF

1шт.

19

485936R91

BEARING CARRIER

pillow block

1шт.

20

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

20шт.

21

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

14шт.

22

492-11062

BEARING WASHER,5/8"

4шт.

23

425-1010

NUT,5/8"-11, G5

4шт.

24

492-11038

LOCK WASHER,3/8"

1шт.

25

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch)

4шт.

26

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

1шт.

27

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 3/32")

26шт.

28

231-4216

LOCK NUT,3/8"-16, GB

hex, self locking, 3/8 inch NC

4шт.

29

413-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

4шт.

30

492-11031

LOCK WASHER,5/16"

22шт.

31

425-105

NUT,5/16"-18, G5

22шт.

32

231-4215

LOCK NUT,5/16"-18, GB

Hex, self locking

5шт.

33

425-106

NUT,3/8"-16, Cl 5

1шт.

34

135270

SERRATED SCREW,5/16" - 18 x 3/4"

slotted truss head, 5/16 NC x 3/4 inch

10шт.

35

133809A1

SUPPORT

screen

1шт.

36

133807A1

DOOR

hammermill

1шт.

37

433-520

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 1 1/4", Gr 5

BOLT carriage, 5/16 NC x 1-1/4 inch

2шт.

38

79895C1

MAGNET

24 inch

1шт.

39

145747C1

HANDLE

T-bar

2шт.

40

231-4218

LOCK NUT,1/2"-13, GB

hex, self locking, 1/2 inch NC

2шт.

41

396-31066

WASHER,21/32" x 1 5/16" x .188", HDN

flat, 21/32 x 1-5/16 x 3/16 inch

8шт.

43

79739C1

HANDLE

locking

2шт.

44

79740C1

SEALING STRIP

STRIP sealing, 1/4 x 3/4 x 26 inch

1шт.

45

79744C1

SHAFT

rotor, component parts not serviced separately

1шт.

46

79745C1

PIN

hammermill

4шт.

47

133811A1

HOUSING

main hammermill

1шт.

48

79778C1

PLATE

rear side

1шт.

49

79774C1

SUPPORT

HOUSING fan wrapper

1шт.

50

79775C1

CLAMP

pull down

1шт.

51

79777C1

PLATE

front side

1шт.
