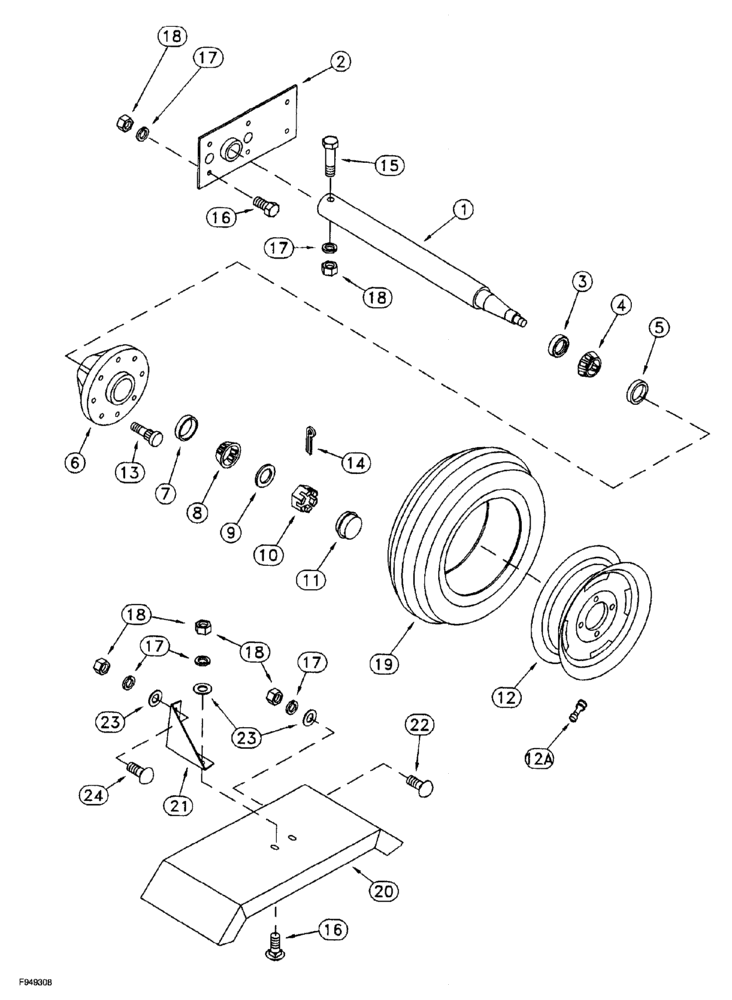

Запчасти Case IH 1360 (9B-020) - SPINDLES AND WHEELS, 1360 MACHINES (12) - CHASSIS

1

79780C1

SPINDLE

1360 machines

2шт.

2

133749A1

BRACKET

spindle mounting

2шт.

3

D50060

SEAL,53.98mm ID x 77.93mm OD x 13.11mm Thk

oil

2шт.

4

G15215

ROLLER BEARING

tapered roller

2шт.

5

619387R1

BEARING CUP

3-1/16 inch O.D.

2шт.

6

62616C1

HUB

ASSEMBLY, with bearing cup and cone, 8 bolt pattern

2шт.

7

651817R1

BEARING CUP

CUP tapered roller

2шт.

7

651817R1GV

BEARING CUP

Value, Bearing Cup

2шт.

8

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

tapered roller

2шт.

9

95-81158

WASHER,3/4" x 1 3/4" x .148"

flat, 13/16 x 1-3/4 x 5/32 inch

2шт.

10

425-1312

SLOTTED NUT,3/4"-16, G5

hex, 3/4 inch NF

2шт.

11

518842R1

CAP

hub

2шт.

12

79821C1

WHEEL

8 bolt pattern

2шт.

12a

810769C1

VALVE

inflation

2шт.

13

403538R2

WHEEL BOLT,Hex, 9/16" - 18 x 1.21"

BOLT guide wheel

16шт.

14

432-1024

COTTER PIN,5/32" x 1 1/2"

5/32" x 1 1/2"

2шт.

15

413-872

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 5

hex, 1/2 NC x 4-1/2 inch

2шт.

16

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

16шт.

17

80679

LOCK WASHER,1/20.507 CST ZND

20шт.

18

425-108

NUT,1/2" - 13, Gr 5

20шт.

19

NSS

NOT SOLD SEPARAT

TIRE, 13.50-16.18 PR FARM

2шт.

20

79750C1

FENDER

1360 machines

2шт.

21

79752C1

SUPPORT

fender bracket

2шт.

22

434-816

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5

carriage, 1/2 NC x 1 inch

4шт.

23

495-21056

WASHER,1/2"

flat, 9/16 x 1-3/8 x 7/64 inch

12шт.

24

433-820

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/4", Gr 5

4шт.
