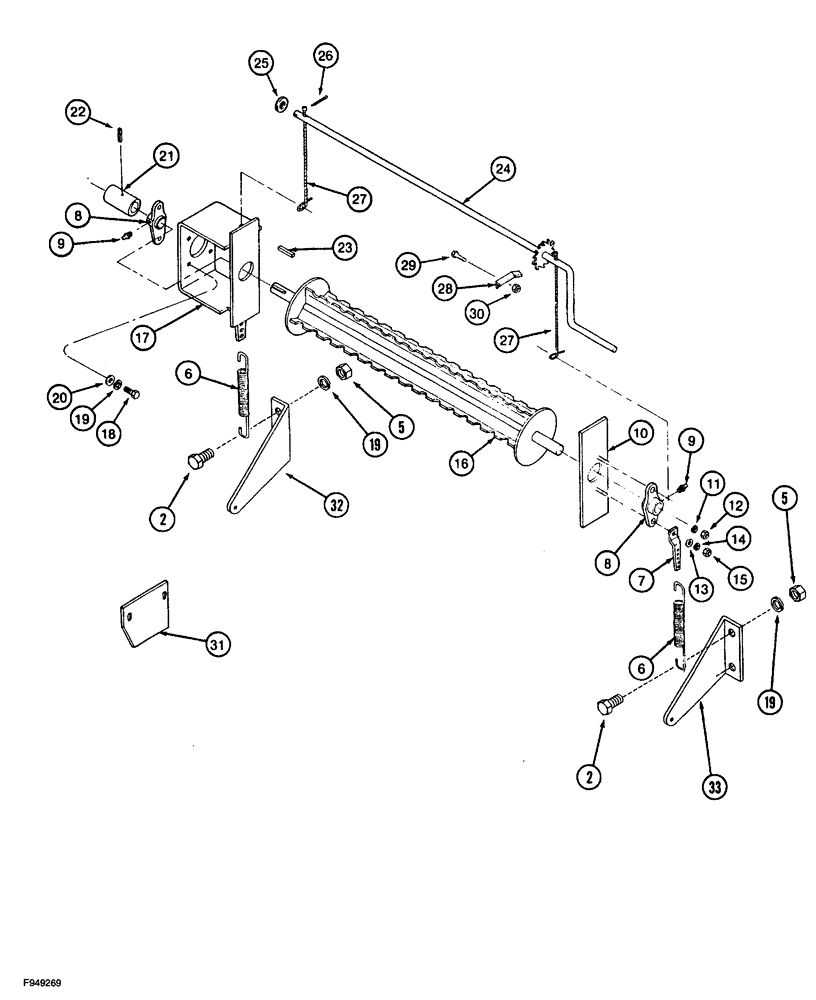

Запчасти Case IH 1360 (9A-020) - ROLL FEED - HYDRAULIC, 1360 MACHINES (12) - CHASSIS

2

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

5

425-106

NUT,3/8"-16, Cl 5

4шт.

6

485872R1

SPRING

roll feed

2шт.

7

485870R1

SUPPORT

BRACKET spring holder

1шт.

8

475845R1

BEARING,1.072" ID

roll feed

1шт.

9

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

2шт.

10

475846R91

PLATE

sliding roll feed

1шт.

11

486799R1

LOCK WASHER

lock, special, 5/16 inch

1шт.

12

232-4115

LOCK NUT,5/16"-18, GC

1шт.

13

495-11034

WASHER,5/16", SAE

(flat, 11/32 x 11/16 x 1/16")

1шт.

14

492-11031

LOCK WASHER,5/16"

4шт.

15

425-105

NUT,5/16"-18, G5

4шт.

16

79789C1

ROTOR

roll feed

1шт.

17

79790C1

SUPPORT

MOUNTING hydraulic motor

1шт.

18

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

19

492-11038

LOCK WASHER,3/8"

8шт.

20

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

Flat, (13/32 x 13/16 x 1/16")

8шт.

21

79791C1

COUPLING

shaft

1шт.

22

38-11628

LOCK PIN,1/4" x 1 3/4", Slotted

1/4" x 1 3/4", Slotted

1шт.

23

Q26

KEY,1/4" Sq x 1 1/4", Par

square, 1/4 x 1-1/4 inch

1шт.

24

79792C1

CRANK

roll feed

1шт.

25

495-11066

WASHER,5/8", SAE

flat, 21/32 x 1-5/16 x 3/32 inch

4шт.

26

432-1016

COTTER PIN,5/32" x 1"

5/32" x 1"

2шт.

27

485871R1

CABLE

adjustment, roll feed

2шт.

28

485867R1

SUPPORT

BRACKET crank lock

1шт.

29

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

30

231-4115

NUT,5/16"-18, GB

3шт.

32

135741A1

BRACKET

left hand lower spring

1шт.

33

135742A1

BRACKET

right hand lower spring

1шт.
