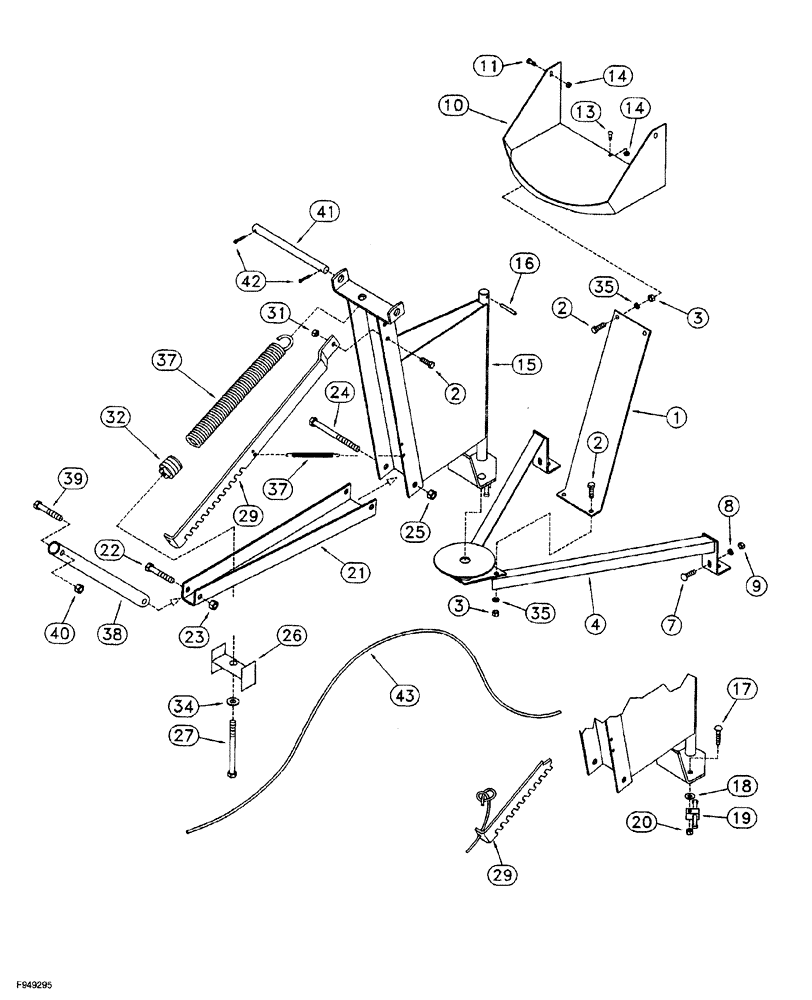

Запчасти Case IH 1360 (9A-008) - AUGER FEEDER, SUPPORT AND PIVOT ASSEMBLY, 1360 MACHINES (12) - CHASSIS
№
Артикул
Название
Примечание
Количество
1
175456A1
STRAP
PLATE reinforcement
1шт.
2
413-616
BOLT,Hex, 3/8" - 16 x 1", Gr 5
5шт.
3
425-106
NUT,3/8"-16, Cl 5
4шт.
4
175441A1
SUPPORT
lower
1шт.
7
434-820
CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/4", Gr 5
BOLT carriage, 1/2 NC x 1-1/4 inch
2шт.
8
80679
LOCK WASHER,1/20.507 CST ZND
2шт.
9
425-108
NUT,1/2" - 13, Gr 5
2шт.
10
135595A1
CONTAINER
BASKET, 26 inch
1шт.
11
413-510
BOLT,Hex, 5/16" - 18 x 5/8", Gr 5
3шт.
13
434-510
CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 5/8", Gr 5
5/16 NC x 5/8 inch
1шт.
14
231-5145
SERRATED NUT,Flg, USR, 5/16"-18
3шт.
15
79855C1
SUPPORT
BRACKET feeder basket adjustment
1шт.
16
38-11632
LOCK PIN,1/4" x 2", Slotted
1шт.
17
434-624
CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/2", Gr 5
3/8 NC x 1-1/2 inch
1шт.
18
495-81145
WASHER,13/32" x 1 3/4" x .120"
1шт.
19
145823C2
HANDLE
brake
1шт.
20
128366C1
LOCK NUT
hex, self locking, 3/8 inch NC
1шт.
21
145825C1
CHANNEL
ratchet
1шт.
22
413-840
BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5
hex, 1/2 NC x 2-1/2 inch
1шт.
23
231-4218
LOCK NUT,1/2"-13, GB
hex, self locking, 1/2 inch NC
1шт.
24
413-880
BOLT,Hex, 1/2" - 13 x 5", Gr 5
hex, 1/2 NC x 5 inch
1шт.
25
231-4218
LOCK NUT,1/2"-13, GB
hex, self locking, 1/2 inch NC
1шт.
26
79806C1
PIVOT
BRACKET
1шт.
27
413-880
BOLT,Hex, 1/2" - 13 x 5", Gr 5
hex, 1/2 NC x 5 inch
1шт.
28
425-108
NUT,1/2" - 13, Gr 5
1шт.
29
145826C1
BAR
ratchet
1шт.
31
128366C1
LOCK NUT
hex, self locking, 3/8 inch NC
1шт.
32
76032C1
SPRING NUT
spring
1шт.
33
76033C1
SPRING
extension
1шт.
34
80679
LOCK WASHER,1/20.507 CST ZND
1шт.
35
492-11038
LOCK WASHER,3/8"
4шт.
37
64669C1
SPRING
extension
1шт.
38
76031C1
LINK
vertical
1шт.
39
413-840
BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5
hex, 1/2 NC x 2-1/2 inch
1шт.
40
231-4218
LOCK NUT,1/2"-13, GB
hex, self locking, 1/2 inch NC
1шт.
41
475663R1
PIN
ROD hinge
1шт.
42
432-1024
COTTER PIN,5/32" x 1 1/2"
5/32" x 1 1/2"
2шт.
43
NSS
NOT SOLD SEPARAT
ROPE plastic, 3/16 x 105 inch, purchase locally
1шт.
Выбрано товаров: 38
