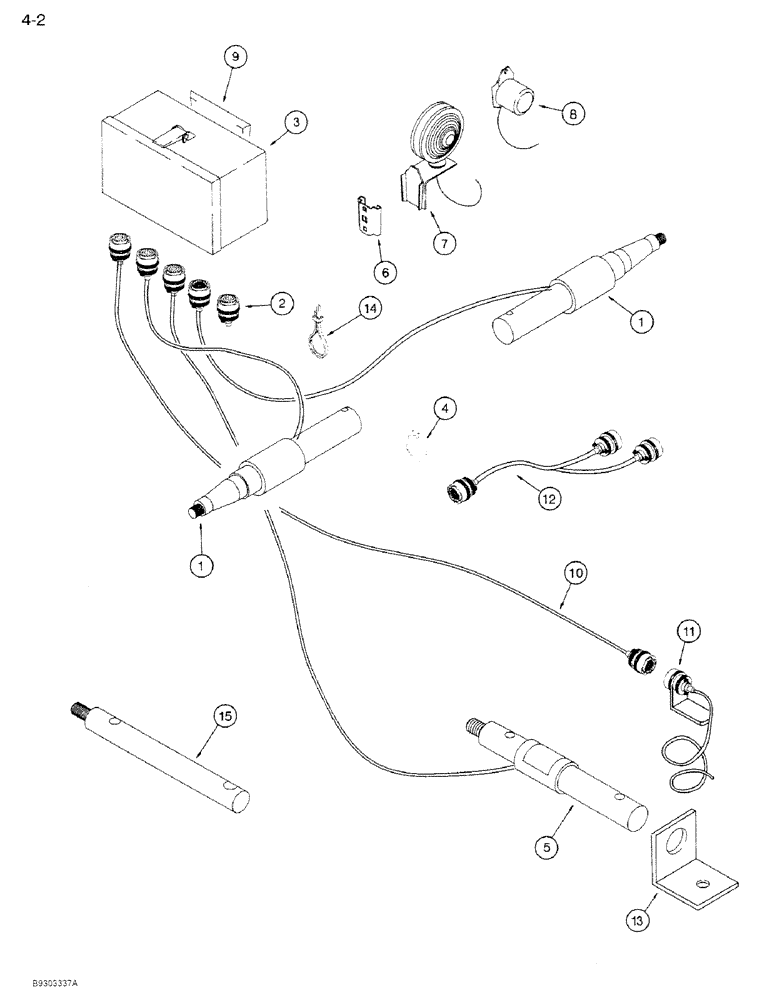

Запчасти Case IH 1350 (4-02) - ELECTRONIC SCALES (06) - ELECTRICAL
№
Артикул
Название
Примечание
Количество
1
64648C1
BAR
AXLE - spindle weight bar (Used with 1250 machines)
2шт.
1
1333867C1
AXLE
- spindle weight bar (Use with 1333844C1) (1250 machines)
1шт.
1
62606C1
SPINDLE
AXLE - spindle weight bar (Used with 1350 machines)
2шт.
1
1333902C1
BAR
AXLE - spindle weight bar (Use with 1333844C1) (1350 machines)
1шт.
2
548144R1
ADAPTER
- indicator, 4 pin
1шт.
2
1333868C1
ADAPTER
- indicator, 5 pin (model 1000 only)
1шт.
3
62755C91
GAUGE
INDICATOR UNIT - 15,000 lb. (Analog) (Order 1995597C1) (See Note A)
1шт.
3
62756C91
GAUGE
INDICATOR UNIT - 30,000 lb. (Analog) (Order 1995597C1) (See Note A)
1шт.
3
76066C1
INDICATOR
UNIT - 10,000 lb. (Digital) (Order 1995597C1) (See Note B)
1шт.
3
76677C1
UNIT
INDICATOR UNIT - 25,000 lb. (Digital) (Order 1995597C1) (See Note B)
1шт.
3
1333844C1
INDICATOR
UNIT - model 1000R (Digital) (Order 1995597C1) (See Note B)
1шт.
3
1333841C1
INDICATOR
UNIT - model 1000 (Digital) (See Note C)
1шт.
3
1978944C1
SCALE
INDICATOR UNIT - model 700 (Digital) (Order 1995529C1)
1шт.
3
1995529C1
SCALE
INDICATOR UNIT - model 700E (Digital)
1шт.
3
1995597C1
SCALE
INDICATOR UNIT - model 700E (Digital) (See Note B)
1шт.
4
548152R1
CLIP
- wire (Digital) (1250 machines)
15шт.
4
548152R1
CLIP
- wire (Analog) (1250 machines)
2шт.
5
76373C1
TRAILER HITCH
HITCH - weight bar
1шт.
5
1333869C1
BAR
HITCH - weight bar (Use with 1333844C1
1шт.
6
548141R1
BRACKET
- horn or light (Analog)
1шт.
7
BULB - warning, order machine attachment
1шт.
8
ALARM - audible, order machine attachment
1шт.
9
548151R1
BRACKET
- indicator unit mounting (Digital)
1шт.
10
1265800C1
CABLE
POWER CORD - analog
1шт.
10
1265799C1
CABLE
POWER CORD - digital
1шт.
11
547761R91
CONNECTOR,ELECTRIC
CONNECTOR - female
1шт.
12
1281271C1
ADAPTER
Wire - harness, light and horn adapter (If equipprd)
1шт.
13
548148R1
CLEVIS
- hitch (1350 machines)
1шт.
14
79749C1
STRAP
TIE - plastic, 1/8 x 6 inch (1350 machines)
15шт.
Выбрано товаров: 29
