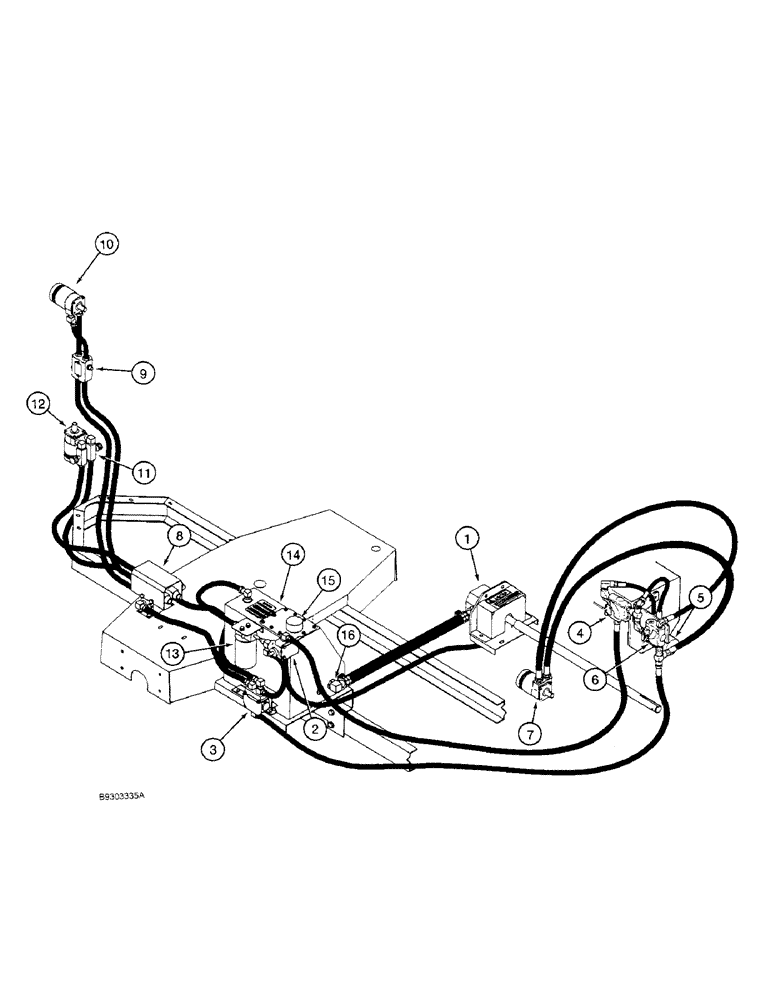

Запчасти Case IH 1350 (1-10) - PICTORIAL INDEX ,1350 SELF CONTAINED HYDRAULIC SYSTEM (00) - PICTORIAL INDEX

1

Hydraulic Pump (540 to 1000 rpm), Page 8-27

1шт.

2

System Relief Valve, Page 8-25

1шт.

3

Flow Divider Valve, Page 8-25

1шт.

4

Adjustable Flow Control Valve for Auger Feeder Motor, Page 8-33

1шт.

5

Auger Feeder Motor, Page 8-33

1шт.

6

Adjustable Flow Control Valve for Roll Feed Motor, Page 8-33

1шт.

7

Roll Feed Motor, Page 8-33

1шт.

8

Directional Control Valve (Lift and Swing Motors), Page 8-29, 31

1шт.

9

Dual Relief Valve for Lift Motor, Page 8-29

1шт.

10

Lift Motor for Discharge Auger, Page 8-29

1шт.

11

Adjustable Flow Control Valves for Swing Motor, Page 8-29

1шт.

12

Swing Motor for Discharge Auger, Page 8-29

1шт.

13

Return Line System Filter, Page 8-25

1шт.

14

Hydraulic Reservoir, Page 8-23, 25

1шт.

15

Fill Cap with Breather, Page 8-23

1шт.

16

Outlet Screen Filter, Page 8-23

1шт.
