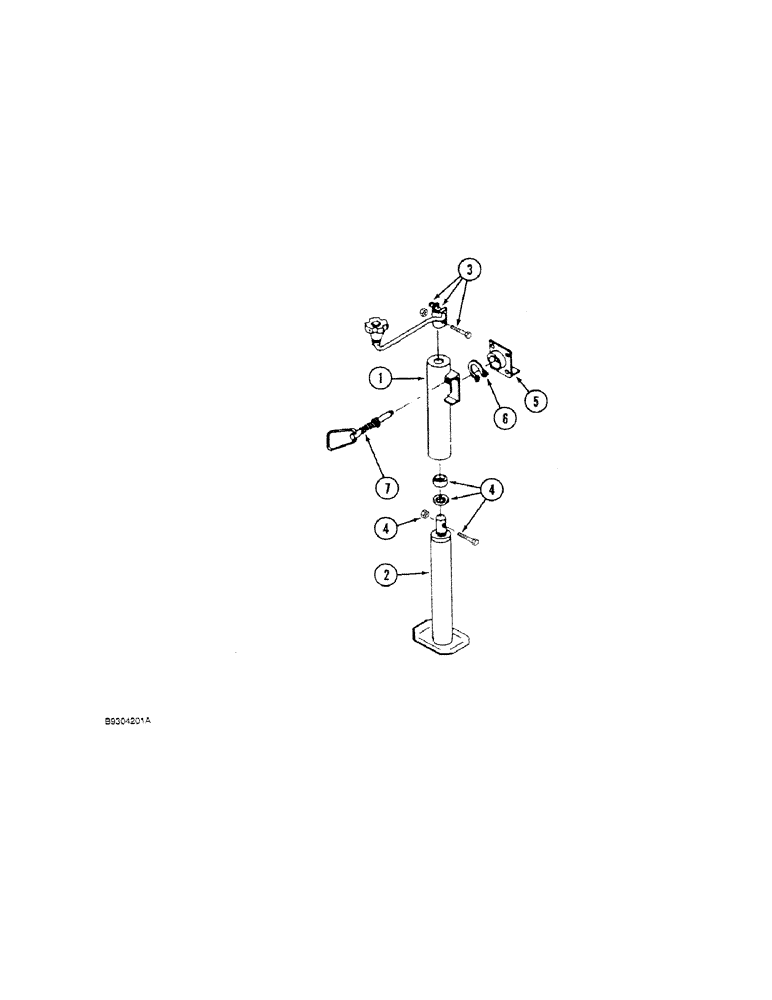

Запчасти Case IH 1350 (9B-74[1]) - JACK, SWIVEL TYPE, 1250 MACHINES, MACHINES BUILT P.I.N. 7001 AND AFTER (09) - CHASSIS ATTACHMENTS

1281161C1

JACK

ASSEMBLY - swivel type

1шт.

1

NSS

NOT SOLD SEPARAT

TUBE - outer (Order 128116C1)

1шт.

2

1281144C1

TUBE

ASSEMBLY - inner, with screw

1шт.

3

1281146C1

CRANK

1шт.

4

1281260C1

THRUST WASHER

PACKAGE - thrust washer

1шт.

5

1281145C1

BRACKET

- jack

1шт.

6

475863R1

RING

- retaining (Machines built prior to PIN 8026)

1шт.

6

684645R1

SNAP RING,#250, Ext

Ring, Snap, (Machines built PIN 8026 and after) #250, Ext

1шт.

7

1281259C1

PLUNGER

1шт.
