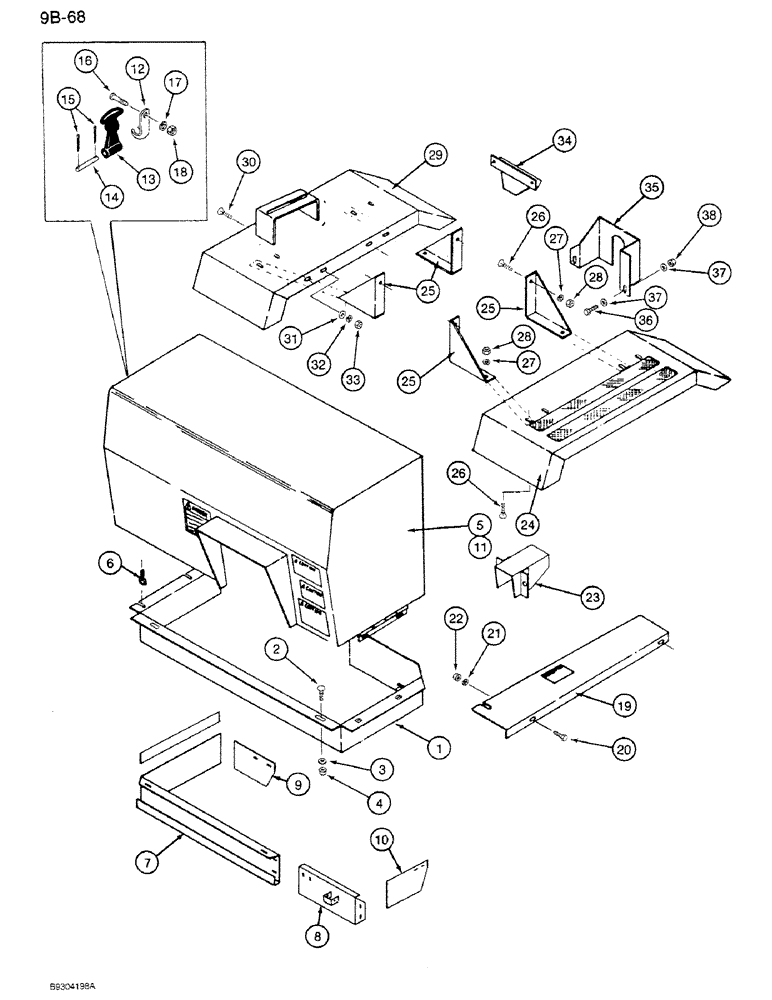

Запчасти Case IH 1350 (9B-68) - SHIELDS AND FENDERS, 1350 MACHINES (09) - CHASSIS ATTACHMENTS

1

79748C1

BASE

- main shield (If equipped)

1шт.

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

3шт.

28588R1

WASHER

- flat, 11/32 x 11/16 x 3/64 inch

6шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

3шт.

2

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G5, Full Thd

2шт.

3

28588R1

WASHER

- flat, 11/32 x 11/16 x 3/64 inch

2шт.

4

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

2шт.

5

79823C1

SHIELD

- main, with decal (If equipped)

1шт.

6

188029C1

LATCH

ASSEMBLY - shield (If equipped)

2шт.

7

1980623C1

BASE

- main shield (If equipped)

1шт.

8

1980624C1

BASE

- main shield (If equipped)

1шт.

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

3шт.

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

6шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

3шт.

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G5, Full Thd

2шт.

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

2шт.

9

1980625C1

FILLER

- shield (If equipped)

1шт.

10

1980626C1

FILLER

- shield (If equipped)

1шт.

11

1980621C1

SHIELD

- main, with decal, 1000 rpm PTO (If equipped)

1шт.

11

1980622C1

SHIELD

- main, with decal, 540 rpm PTO (If equipped)

1шт.

12

1281285C1

BRACKET

- hook (If equipped)

1шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

1шт.

131-1352

LOCK NUT,Flg, 3/8"-16

NUT - hex, lock, 1/4 NC

1шт.

13

1281201C1

HOOK

- rubber (If equipped)

1шт.

14

141-14

PIN - 1/4 x 1-3/4 inch, clevis (If equipped)

1шт.

15

32-412

COTTER PIN,1/16" x 3/4"

Pin, Split (Cotter), , if equipped 1/16" x 3/4"

1шт.

16

440-11012

SCREW,Cross Pan Hd, #10-24 x 3/4"

- machine, pan head Phillips, No. 10 NC x 3/4 inch

2шт.

17

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

18

225-14110

NUT,#10-24

2шт.

19

79824C1

SHIELD

- jack shaft, with decal

1шт.

20

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

2шт.

21

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

2шт.

22

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

2шт.

23

79755C1

SHIELD

- jack shaft extension

1шт.

24

79750C1

FENDER

- left

1шт.

25

79752C1

SUPPORT

- fender bracket

4шт.

26

434-820

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/4", Gr 5

BOLT - round head square neck, 1/2 NC x 1-1/4 inch

8шт.

27

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

8шт.

28

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

8шт.

29

79751C1

FENDER

- right

1шт.

30

434-820

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/4", Gr 5

BOLT - round head square neck, 1/2 NC x 1-1/4 inch

4шт.

31

495-11053

WASHER,1/2", SAE

Hardened (17/32" x 1-1/16" x 9/64") 1/2", SAE

4шт.

32

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

33

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

34

79753C1

SHIELD

- end bearing

1шт.

35

79754C1

SHIELD

- push auger

1шт.

36

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

2шт.

37

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

4шт.

38

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

2шт.
