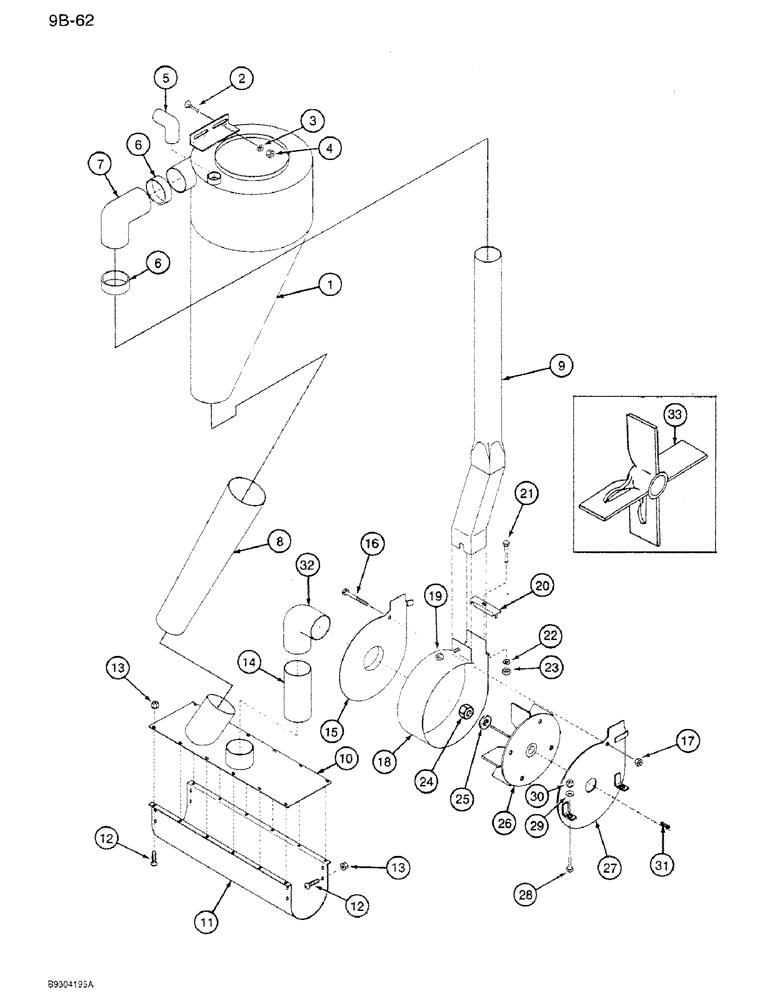

Запчасти Case IH 1350 (9B-62) - HAMMERMILL DUST COLLECTOR, 1350 MACHINES (09) - CHASSIS ATTACHMENTS

1

75940C1

CHUTE ASSY.

DUST COLLECTOR

1шт.

2

434-620

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/4", G5, Full Thd

2шт.

3

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

2шт.

4

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

2шт.

5

75941C1

HOSE,2.00" ID x 3.50", SAE 20R4 Class SC

Elbow 2.00" ID x 3.50", SAE 20R4 Class SC

1шт.

6

75945C1

BAND

- rubber, 4 inch diameter

4шт.

7

475790R1

PIPE

ELBOW - 4 inch pipe

1шт.

8

79766C1

PIPE

- coupler

1шт.

9

79767C1

TUBE,3.3" ID, 3.93" OD, 59.12" Length

- coupler

1шт.

10

79768C1

COVER

- trough

1шт.

11

79769C1

TROUGH

-, Serial Range: mill-tank

1шт.

12

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

- slotted truss, 5/16 NC x 1/2 inch

20шт.

13

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

20шт.

14

79779C1

TUBE ASSY.

PIPE - blower, 4 inch

1шт.

15

79778C1

PLATE

- rear side

1шт.

16

413-580

BOLT,Hex, 5/16" - 18 x 5", Gr 5

1шт.

17

9413994

LOCK NUT,5/16"-18, GC

NUT- lock, 5/16 inch (Grade 8)

1шт.

18

79774C1

SUPPORT

HOUSING ASSEMBLY - fan wrapper

1шт.

19

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

2шт.

20

79775C1

CLAMP

- pull down

1шт.

21

413-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

- hex, 3/8 NC x 3-1/2 inch

1шт.

22

492-11038

LOCK WASHER,3/8"

1шт.

23

425-106

NUT,3/8"-16, Cl 5

1шт.

24

425-1124

NUT,1 1/2"-12, G5

- 1-1/2 inch NF (Type 5)

1шт.

25

95-81148

WASHER - flat, 1-17/32 x 2 x 7/64 inch

1шт.

26

79776C1

FAN

- dust collector (If equipped)

1шт.

27

79777C1

PLATE

- front side

1шт.

28

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

2шт.

29

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

2шт.

30

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

2шт.

31

Q87

KEY,3/8" Sq x 1 1/2", Par

- square parallel, 3/8 x 1-1/4 inch

1шт.

32

102879A1

ELBOW

- 90 degree (Replaces 79887C1)

1шт.

33

475768R1

FAN

- dust collector (If equipped)

1шт.
