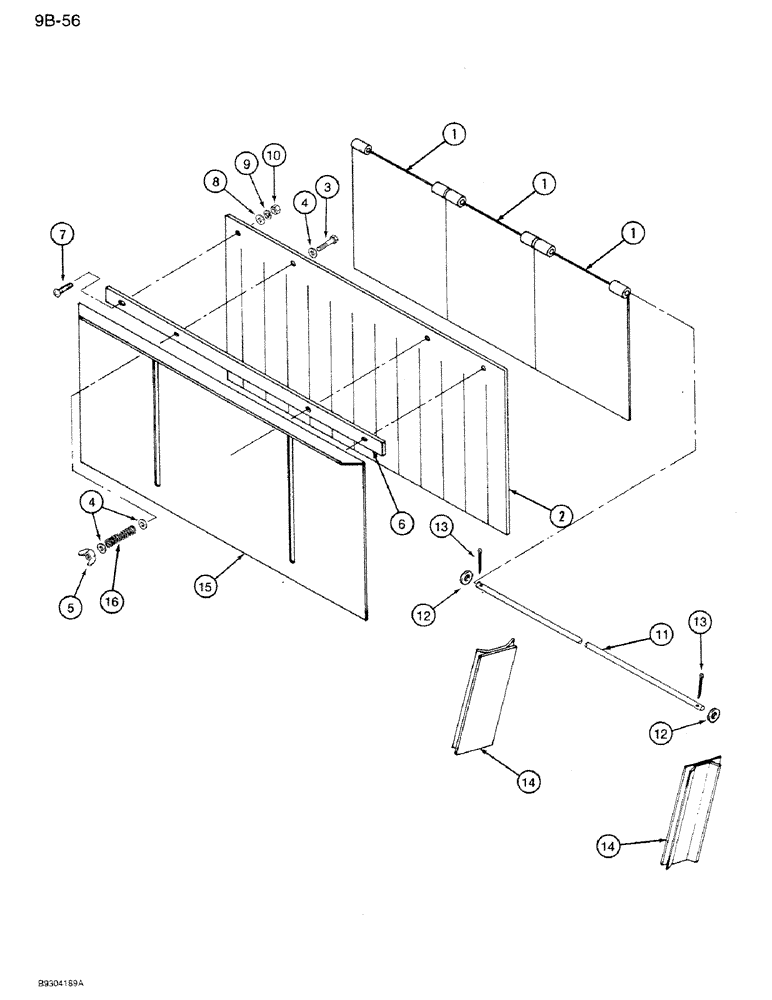

Запчасти Case IH 1350 (9B-56) - HAMMERMILL THROAT FEED GATE, 1350 MACHINES (09) - CHASSIS ATTACHMENTS

1

79903C1

PLATE

- pivot

1шт.

2

79898C1

FLAP

- throat

1шт.

3

424-540

BOLT - hex, 5/16 x 2-1/2 inch

2шт.

4

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

6шт.

5

7500032

BUSHING

NUT - wing, 5/16 inch NC

2шт.

6

79794C1

STRAP

- throat

1шт.

7

443-13116

SCREW,Cross Flat Hd, 5/16"-18 x 1"

2шт.

8

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

2шт.

9

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

10

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

11

79902C1

ROD

- pivot

1шт.

12

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

2шт.

13

32-816

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

2шт.

14

475848R1

COVER

- hopper

2шт.

15

79825C1

PLATE

- feed gate

1шт.

16

475801R1

SPRING

- compression

2шт.
