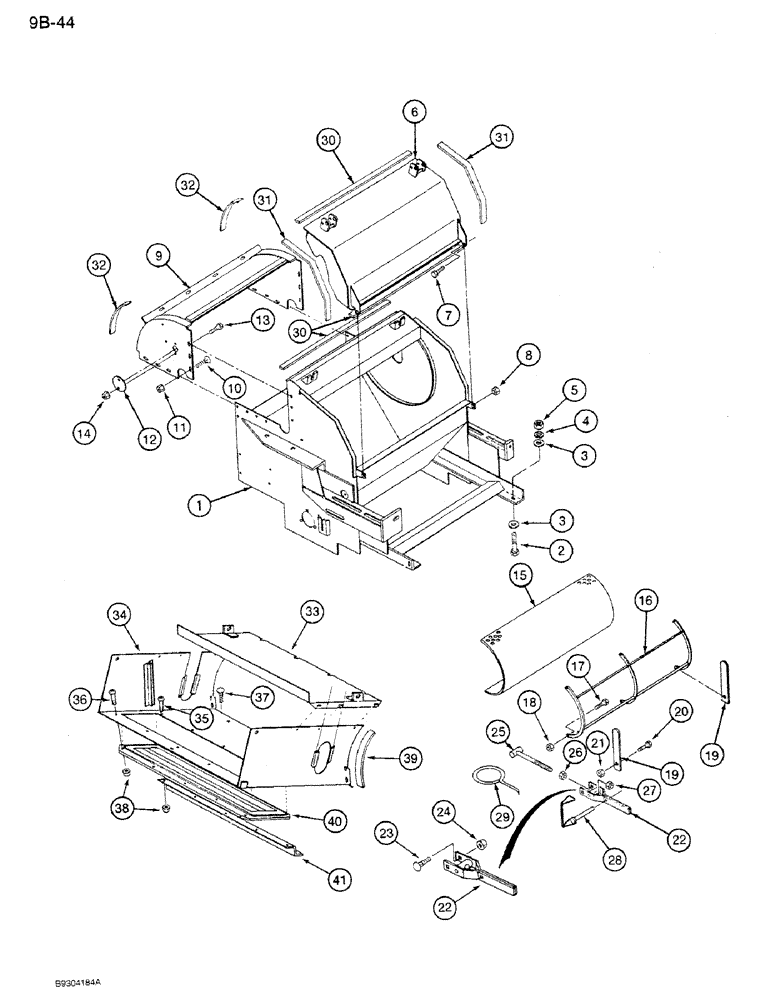

Запчасти Case IH 1350 (9B-44) - HAMMERMILL, 1350 MACHINES (09) - CHASSIS ATTACHMENTS

1

79734C1

HOUSING

- hammermill

1шт.

2

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

4шт.

3

495-11053

WASHER,1/2", SAE

Hardened (17/32" x 1-1/16" x 9/64") 1/2", SAE

8шт.

4

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

5

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

6

79735C1

DOOR ASSY.

DOOR

1шт.

7

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

2шт.

8

128366C1

LOCK NUT

- hex lock, 3/8 inch NC

2шт.

9

79736C1

HOOD

- hammermill

1шт.

10

434-510

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 5/8", Gr 5

BOLT - round head square neck, 5/16 NC x 5/8 inch

12шт.

11

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

12шт.

12

475809R1

RETAINER

PLATE - rod removal

1шт.

13

424-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 2

- hex, 5/16 x 5/8 inch

2шт.

14

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex, flange lock, 5/16 inch NC

2шт.

15

79867C1

SCREEN

- 1/8 inch holes

1шт.

15

79868C1

SCREEN

- 3/16 inch holes

1шт.

15

79869C1

SCREEN

- 1/4 inch holes

1шт.

15

79870C1

SCREEN

- 5/16 inch holes

1шт.

15

79871C1

SCREEN

- 3/8 inch holes

1шт.

15

79872C1

SCREEN

- 1/2 inch holes

1шт.

15

79873C1

SCREEN

- 5/8 inch holes

1шт.

15

79874C1

SCREEN

- 3/4 inch holes

1шт.

15

79875C1

SCREEN

- 1 inch holes

1шт.

15

79876C1

SCREEN

- 1-1/4 inch holes

1шт.

15

79877C1

SCREEN

- 1-1/2 inch holes

1шт.

15

79878C1

SCREEN

- 2 inch holes

1шт.

16

79737C1

SUPPORT

- screen

1шт.

17

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

2шт.

18

128366C1

LOCK NUT

- hex, lock, 3/8 inch NC

2шт.

19

79738C1

PIVOT

- mill door

2шт.

20

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

2шт.

21

128366C1

LOCK NUT

- hex lock, 3/8 inch NC

2шт.

22

79739C1

HANDLE

- locking

2шт.

23

412-512

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 3/4", Gr 2

BOLT - round head square neck, 5/16 NC x 3/4 inch

4шт.

24

9413994

LOCK NUT,5/16"-18, GC

NUT - lock, 5/16 inch (Grade 8)

4шт.

25

145747C1

HANDLE

- T bar

2шт.

26

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

27

474848R1

LOCK NUT,1/2"-13, GB

NUT - hex lock, 1/2 inch NC

2шт.

28

76381C1

PIN

- snap

2шт.

29

475805R1

HOOK

- screen

1шт.

28

76381C1

PIN

- snap

2шт.

30

79740C1

SEALING STRIP

STRIP - sealing, 1/4 x 3/4 x 26 inch

3шт.

31

76972C1

SEALING STRIP

- sealing, 1/4 x 3/8 x 18-1/2 inch

2шт.

32

79741C1

SEALING STRIP

STRIP - sealing, 1/4 x 3/4 x 8-1/2 inch

2шт.

33

79826C1

COVER

- plate

1шт.

34

79863C1

SUPPORT

THROAT - mill

1шт.

35

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

- slotted truss, 5/16 NC x 1 inch

5шт.

36

135270

SERRATED SCREW,5/16" - 18 x 3/4"

- slotted truss, 5/16 NC x 3/4 inch

5шт.

37

412-512

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 3/4", Gr 2

BOLT - round head square neck, 5/16 NC x 3/4 inch

11шт.

38

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

11шт.

39

79741C1

SEALING STRIP

STRIP - sealing

2шт.

40

79895C1

MAGNET

- 24 inch

1шт.

41

79808C1

SUPPORT

- spring assist

1шт.
