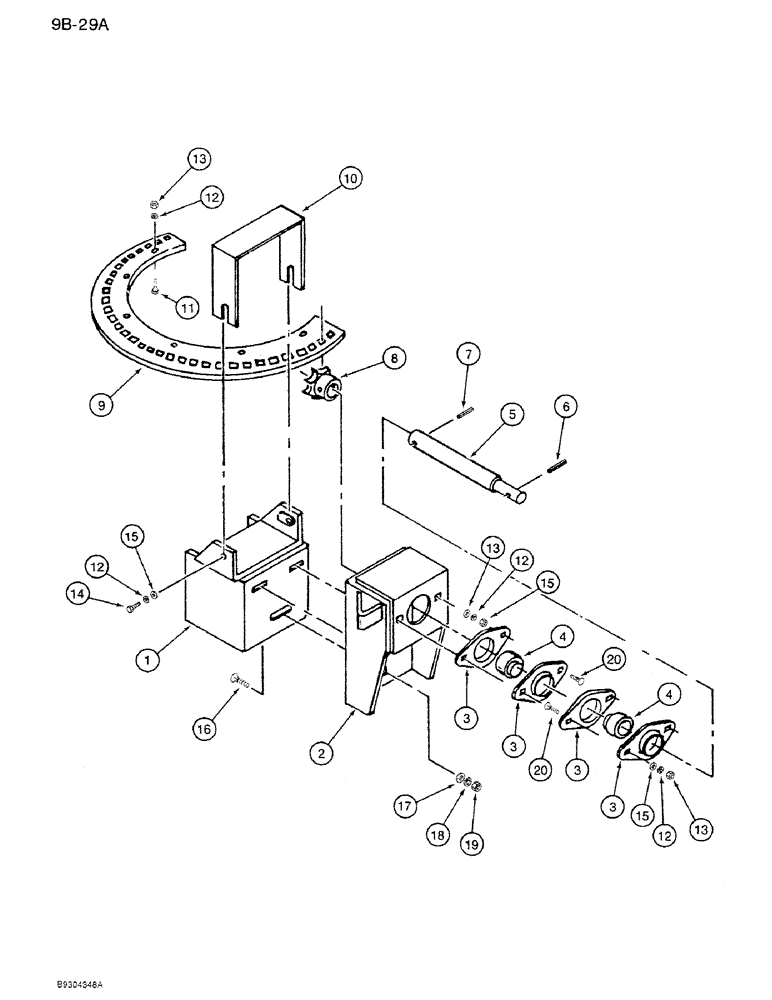

Запчасти Case IH 1350 (9B-29A) - SWIVEL DRIVE MECHANICAL, 1250 P.I.N. 7132 AND AFTER, 1350 P.I.N. 606 AND AFTER (09) - CHASSIS ATTACHMENTS

1

101554A1

BRACKET

ASSEMBLY - mount

1шт.

2

1281326C1

PIVOT

BRACKET ASSEMBLY - swivel

1шт.

3

469924R1

FLANGE

- ball bearing

4шт.

4

455957R91

BALL BEARING

BEARING

2шт.

5

1281324C1

SHAFT

- drive

1шт.

6

38-21622

PIN,6.35mm OD x 34.92mm L, Coiled

1шт.

7

38-21216

PIN,4.75mm OD x 25.4mm L, Coiled

1шт.

8

1281325C1

SPROCKET ASSY.

SPROCKET - drive

1шт.

9

1281327C1

DISC

- swivel

1шт.

10

1281323C1

SHIELD

- swivel

1шт.

11

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

6шт.

12

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

12шт.

13

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

10шт.

14

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

2шт.

15

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

6шт.

16

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - carriage, 3/8 NC x 1 inch

3шт.

17

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

3шт.

18

492-11038

LOCK WASHER,3/8"

3шт.

19

425-106

NUT,3/8"-16, Cl 5

3шт.

20

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G5, Full Thd

4шт.

21

425-106

NUT,3/8"-16, Cl 5

4шт.
