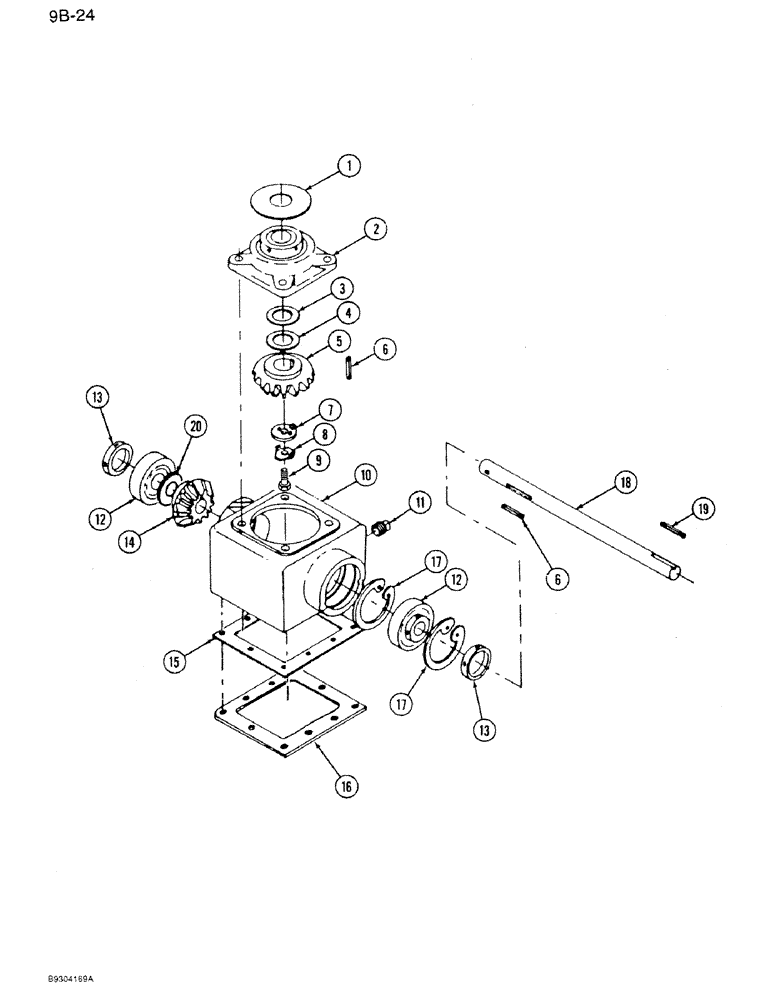

Запчасти Case IH 1350 (9B-24) - GEARBOX, 1350 MACHINES (09) - CHASSIS ATTACHMENTS

1

475775R1

WASHER

PLATE - bearing protector

1шт.

2

487921R91

FLANGED BEARING

- flanged cartridge

1шт.

3

495-81089

WASHER,1.66" ID x 2.25" OD x 0.12" Thk

- flat, 1-21/32 x 2-1/4 x 7/64 inch

1шт.

4

25180R1

WASHER

- flat, 1-21/32 x 2-1/2 x 1/32 inch

1шт.

5

487865R1

GEAR

- bevel, 17 tooth

1шт.

6

581306R1

KEY,5/16" Sq x 1 1/4", Par

2шт.

7

487867R1

LOCK WASHER

WASHER - lock

1шт.

8

475781R1

WASHER

LOCK - bolt

1шт.

9

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

1шт.

10

NSS

NOT SOLD SEPARAT

BOX - gear

1шт.

424-832

BOLT,Hex, 1/2" - 13 x 2", Gr 2

- 1/2 x 2 inch

4шт.

231-1448

NUT,1/2"-13, GB

- hex lock, 1/2 inch NC

4шт.

10

1251003C1

BOX

- gear (Casting Only)

1шт.

11

20969R1

PLUG

- square head pipe, 3/4-14 inch

1шт.

12

487927R91

BALL BEARING,31.75mm ID x 72mm OD x 17mm W

- ball

2шт.

13

487928R91

BEARING SET,2.8348" OD x 1.76"

COLLAR - bearing locking, with setscrew

2шт.

14

487866R1

GEAR

- bevel, 17 tooth

1шт.

15

1251004C1

GASKET

- gear box

1шт.

16

1251005C1

COVER

- gear box

1шт.

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

10шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

10шт.

17

488490R1

RING

- retaining

2шт.

18

79770C1

SHAFT

- gear box

1шт.

19

586879R1

KEY

- square parallel, 5/16 x 2 inch

1шт.

20

145100H

WASHER

- 1-1/4 x 2 x 9/64 inch

1шт.

20

810432R1

WASHER

- 1-1/4 x 2 x 7/64 inch

1шт.

20

933057R1

WASHER - 1-1/4 x 2 x 3/4 inch

1шт.

20

95-81131

WASHER - 1-9/32 x 2 x 3/64 inch

1шт.

20

603045R1

WASHER - 1-1/4 x 1-3/4 x .048 inch

1шт.

20

22182R1

WASHER

- 1-9/32 x 2 x 1/32 inch

1шт.
