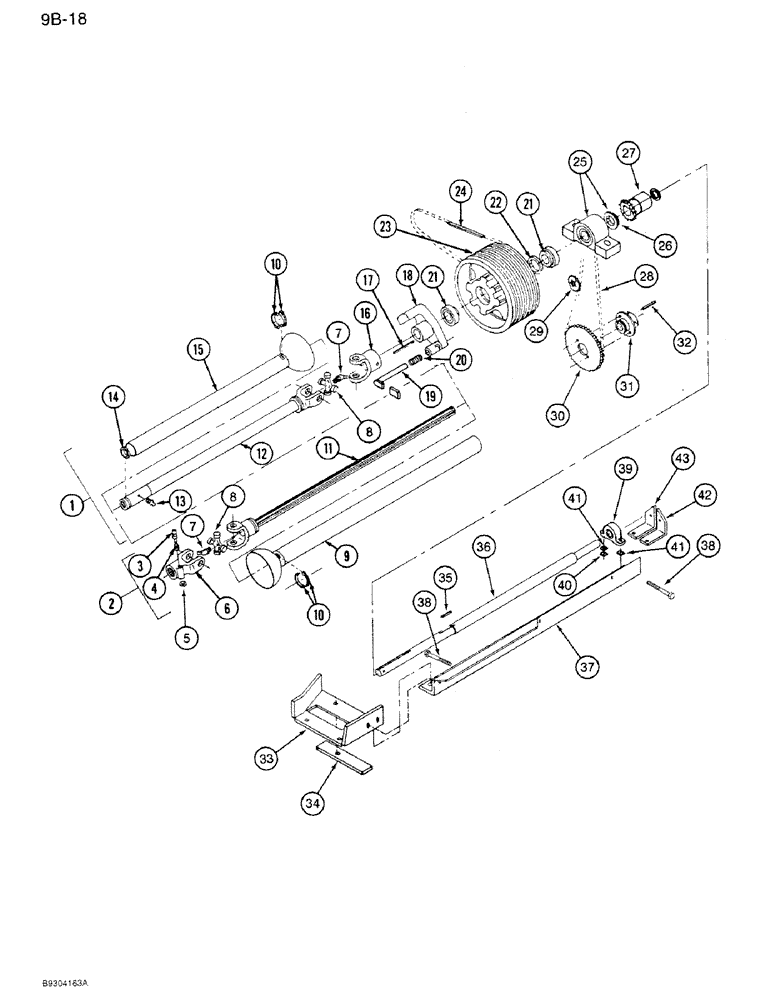

Запчасти Case IH 1350 (9B-18) - MAIN DRIVE, 1350 MACHINES (09) - CHASSIS ATTACHMENTS

1

79761C91

JOINT

ASSEMBLY - universal, implement half (1000 rpm, Rexnord) (Machines built prior to PIN 591)

1шт.

1

1253698C91

PTO

JOINT ASSEMBLY - universal, implement half (540 and 1000 rpm Weasler) (Machines built PIN 591 and after)

1шт.

2

79760C91

JOINT

- universal, tractor half, with decal (1000 rpm, Rexnord) (Machines built prior to PIN 591)

1шт.

2

1253699C91

PTO

JOINT - universal, tractor half, with decal (540 rpm, Weasler) (Machines built PIN 591 and after)

1шт.

2

1281080C91

PTO

JOINT - universal, tractor half, with decal (1000 rpm, Weasler) (Machines built PIN 591 and after)

1шт.

3

455346R21

PIN

ASSEMBLY - locking (See Note C)

1шт.

4

455347R1

VALVE SPRING

SPRING - compression (See Note C)

1шт.

5

661406R1

LOCK WASHER,4.83mm ID x 18.542mm OD x 1.65mm Thk

- locking pin (See Note C)

1шт.

6

1995626C1

YOKE

ASSEMBLY - 1000 rpm, with release pin (See Note C)

1шт.

6

1253961C91

YOKE

ASSEMBLY - 540 rpm, with release pin (See Note D)

1шт.

6

1547376C1

YOKE

ASSEMBLY - 1000 rpm, for tractors with type 3 - 1-3/4" 20T spline (see NOTE E)

1шт.

6

1986081C1

YOKE

ASSEMBLY - 1000 rpm, for tractors with type 2 - 1-3/8" 21T spline (See NOTE E)

1шт.

7

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

FITTING - grease, 65 degree, 1/8 inch PT

2шт.

8

493849R91

KIT

CROSS KIT - yoke (See Note A and C)

2шт.

8

1253954C91

KIT

CROSS KIT - yoke (See Note B, D and E)

2шт.

9

79900C1

SHIELD

- tractor half, with decal (See Note C)

1шт.

9

1253956C1

SHIELD

- tractor half, with decal (See Note D and E)

1шт.

10

546970R1

BEARING COVER

- shield (See Note A and C)

2шт.

10

1253958C1

BEARING

- shield (See Note B, D and E)

2шт.

1253959C1

RETAINER

- bearing (See Note B, D and E)

2шт.

11

1995528C1

YOKE

- with shaft ( replaced 547570R1 )

1шт.

12

1995527C1

YOKE

AND TUBE ( replaced 547571R1 )

1шт.

13

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper (See Note A) 1/4"-28 NPT x .54" lg

1шт.

14

547566R1

RING, SNAP

BEARING - nylon (See Note A)

1шт.

15

79901C1

SHIELD

- inner, implement half (See Note A)

1шт.

15

1253955C1

SHIELD

- inner, implement half (See Note B, D and E)

1шт.

16

547567R1

YOKE

- 1000 rpm (See Note A)

1шт.

932357R1

HEADED PIN,5/16" x 3"

PIN - plain head, 5/16 x 3 inch

1шт.

32-1016

COTTER PIN

PIN - cotter, 5/32 x 1 inch

1шт.

16

1253960C1

YOKE

- 540 and 1000 rpm (See Note B)

1шт.

17

23516R1

KEY - square parallel, 3/8 x 6 inch 3/8" Sq x 6", Par

1шт.

18

481973R91

CLUTCH

ASSEMBLY - drive

1шт.

19

475722R1

PIN

- locking

1шт.

576485R1

LOCK PIN,1/4" x 1 1/4", Slotted

1шт.

20

475721R1

SPRING

- compression

1шт.

21

485934R91

BEARING

- ball

2шт.

22

485935R91

COLLAR

- bearing locking, with setscrew

2шт.

23

481975R91

PULLEY

- drive, with bearings, 540 rpm

1шт.

24

1253696C1

SET OF BELTS

(6), 540 rpm

1шт.

24

79742C1

SET OF BELTS

6, Double V-Belt, 1000 rpm

1шт.

25

79880C91

BEARING CARRIER,41.27mm ID

- pillow block with collar

1шт.

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

- hex, 1/2 NC x 2-1/2 inch

2шт.

495-11053

WASHER,1/2", SAE

Hardened (17/32" x 1-1/16" x 9/64") 1/2", SAE

2шт.

27

79743C1

SPROCKET ASSY.

SPROCKET - 13 tooth, 1000 rpm

1шт.

495-81089

WASHER,1.66" ID x 2.25" OD x 0.12" Thk

- flat, 1-21/32 x 2-1/4 x 7/64 inch

1шт.

28

REF

INSTRUCTION

CHAIN - 540 rpm (Use 73 links from roll 541581R91, 1 connecting link 574523R1 and 1 offset link 612612R91)

1шт.

28

REF

INSTRUCTION

CHAIN - 1000 rpm (Use 67 links from roll 611362R91, 1 connecting link 574532R1 and offset link 612612R91)

1шт.

29

571441R91

SPROCKET ASSY.,15T

SPROCKET - 15 tooth, chain tightener

1шт.

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

- hex, 1/2 NC x 2-1/2 inch

1шт.

495-11053

WASHER,1/2", SAE

Hardened (17/32" x 1-1/16" x 9/64") 1/2", SAE

3шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1шт.

30

79757C1

SPROCKET ASSY.

SPROCKET - 36 tooth

1шт.

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- hex, 5/16 NC x 1-1/4 inch

2шт.

9413994

LOCK NUT,5/16"-18, GC

NUT - lock, 5/16 inch (Grade 8)

2шт.

31

79756C1

HUB

- shear

1шт.

483-1315

SET SCREW,Hex Soc, 5/16"-18 x 5/16"

SCREW - set, hex socket, 5/16 NC x 5/16 inch

2шт.

32

192

KEY,5/16" Sq x 1 5/8", Par

- square parallel, 5/16 x 1-5/8 inch

1шт.

541581R91

CHAIN (AG)

CHAIN - bulk 10' roll

1шт.

611362R91

CHAIN (AG)

CHAIN - bulk 10' roll

1шт.

33

79763C1

EXTENSION - bearing

1шт.

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

- hex, 1/2 NC x 2-1/2 inch

2шт.

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

2шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

495-11053

WASHER,1/2", SAE

Hardened (17/32" x 1-1/16" x 9/64") 1/2", SAE

2шт.

34

79762C1

SPACER

- bearing extension

1шт.

35

Q87

KEY,3/8" Sq x 1 1/2", Par

- square parallel, 3/8 x 1-1/4 inch

1шт.

36

79765C1

JACKSHAFT

- hammermill

1шт.

37

79764C1

ANGLE

- tightener

1шт.

38

485351R1

BOLT,Hex, 1/2" - 13 x 5", Full Thd

- hex, 1/2 NC x 5 inch

1шт.

495-11053

WASHER,1/2", SAE

Hardened (17/32" x 1-1/16" x 9/64") 1/2", SAE

2шт.

39

475727R91

BEARING ASSY

BEARING - pillow block

1шт.

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

- hex, 1/2 NC x 2-1/2 inch

2шт.

495-11053

WASHER,1/2", SAE

Hardened (17/32" x 1-1/16" x 9/64") 1/2", SAE

4шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

40

543044R1

SHIM

- 3/8 inch

1шт.

41

543043R1

SHIM

- 1/4 inch

2шт.

42

79758C1

BRACKET

- jackshaft, left

1шт.

43

79759C1

BRACKET

- jackshaft, right

1шт.

44

1281203C1

GRIP

- handle

1шт.
