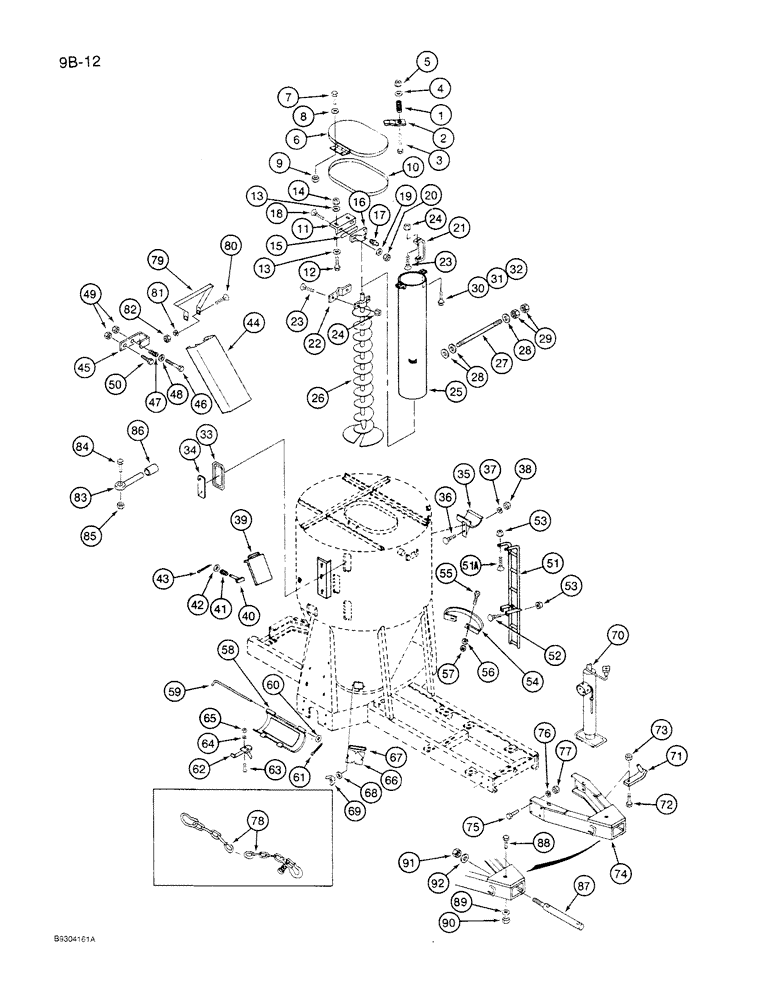

Запчасти Case IH 1350 (9B-12) - MIXER AUGER AND MIXER TANK, 1350 MACHINES (09) - CHASSIS ATTACHMENTS

1

475801R1

SPRING

- compression

2шт.

2

542689R1

BRACKET

- lid, locking

2шт.

3

413-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

- 5/16 NF x 2-1/2 inch

2шт.

4

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

2шт.

5

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- flange lock, 5/16 inch NF

2шт.

6

79813C1

LID

COVER - tank, with decal

1шт.

7

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NF x 3/4 inch

2шт.

8

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

2шт.

9

9413994

LOCK NUT,5/16"-18, GC

NUT - lock, 5/16 inch NF

2шт.

10

79784C1

SEAL

- tank lid

1шт.

11

543073R1

HANGER

- bracket

1шт.

12

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

2шт.

13

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

4шт.

14

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- flange lock, 3/8 inch NC

2шт.

15

79820C1

SHIM

1шт.

16

542688R1

BEARING CARRIER

BEARING - brass

1шт.

17

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING - lube, 1/4 inch UNF

2шт.

18

434-624

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/2", Gr 5

BOLT - carriage, 3/8 NC x 1-1/2 inch

2шт.

19

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

2шт.

20

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex lock, 3/8 inch NC

2шт.

21

485866R1

SUPPORT TUBE

SUPPORT - auger tube

2шт.

22

79814C1

AUGER

PLATE - mixer auger paddle

1шт.

23

434-620

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/4", G5, Full Thd

4шт.

24

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- flange lock, 3/8 inch

4шт.

25

79783C1

TUBE,13.56" Diameter, 68.5" Length

- mixer auger

1шт.

26

79815C1

AUGER

- mixer

1шт.

27

79816C1

ROD,0.5" Diameter, 32.75" Length

- tube support

1шт.

28

495-91167

WASHER,13.49mm ID x 50.8mm OD x 3.4mm Thk

- flat, 17/32 x 2 x 3/32 inch

3шт.

29

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

30

414-720

BOLT,Hex, 7/16" - 20 x 1-1/4", Gr 5

- hex, 7/16 NF x 1-1/4 inch

4шт.

31

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

4шт.

32

425-107

NUT,7/16"-14, G5

- hex, 7/16 inch NC

4шт.

33

476200R1

SEAL, GLASS

GASKET - window

3шт.

34

476199R1

GLASS

- window

3шт.

35

488465R2

SUPPORT

- unloading auger

1шт.

36

434-824

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

BOLT - round head square neck, 1/2 NC x 1-1/2 inch

2шт.

37

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

38

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

39

475817R91

DOOR

- side unloading (Machines built prior to PIN CCD3551)

1шт.

40

475820R1

HOLDER

- sliding door

1шт.

41

475818R1

SPRING

- door holder

1шт.

42

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

1шт.

43

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

44

1281240C1

DOOR

- side unloading (Machines built PIN CCD3551 and after)

1шт.

45

1281321C1

SUPPORT

- holder (Machines built PIN CCD3551 and after)

2шт.

46

413-436

BOLT,Hex, 1/4" - 20 x 2-1/4", Gr 5

2шт.

47

475818R1

SPRING

- DOOR HOLDER

2шт.

48

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

2шт.

49

26110R1

LOCK NUT,1/4"-20, GC

NUT - hex lock, 1/4 inch NC, Grade 8

4шт.

50

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex, 1/4 NC x 3/4 inch

2шт.

51

488804R1

LADDER

1шт.

51a

434-624

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/2", Gr 5

BOLT - round head square neck, 3/8 NC x 1-1/2 inch

2шт.

52

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - round head square neck, 3/8 NC x 1 inch

2шт.

53

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

4шт.

54

75908C1

SUPPORT

- rack

1шт.

55

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

2шт.

56

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

57

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

58

79817C1

COVER

- trough, with decal

1шт.

59

79812C1

ADAPTER

PIN - hinge

1шт.

60

28588R1

WASHER

- flat, 11/32 x 11/16 x 3/64 inch

1шт.

61

32-616

COTTER PIN,3/32" x 1"

Pin, Split (Cotter), 3/32" x 1"

1шт.

62

79818C1

LATCH

- tension

2шт.

63

132051

HYD TUBE,Slotted Fil Hd, #10-24 x 3/4"

SCREW - machine, Filister head, No. 10 x 3/4 inch

4шт.

64

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

4шт.

65

129-17

NUT,Hex, #10 - 24

NUT - hex, No. 10 NC

4шт.

66

543069R1

DOOR

- clean out

2шт.

67

1265798C1

SEALING STRIP

- seal

2шт.

68

28588R1

WASHER

- flat, 11/32 x 11/16 x 3/64 inch

8шт.

69

129-419

WING NUT,5/16"-18

NUT - wing, 5/16 inch NC

8шт.

70

79819C91

JACK ASSY.

JACK ASSEMBLY

1шт.

71

75901C1

HOLDER

- PTO

1шт.

72

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

1шт.

73

231-1448

NUT,1/2"-13, GB

- hex lock, 1/2 inch NC

1шт.

74

79782C1

TOW BAR

TONGUE

1шт.

75

113-606

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5, Full Thd

8шт.

76

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

77

425-1010

NUT,5/8"-11, G5

8шт.

78

100682C3

CHAIN (AG)

CHAIN - safety

1шт.

79

1281208C1

HANDLE

- door (Machines built PIN CCD3551 and after)

1шт.

80

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G5, Full Thd

2шт.

81

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

82

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

83

1281207C1

BAR

- eccentric lock (Machines built PIN CCD3551 and after)

1шт.

84

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex, 1/4 NC x 3/4 inch

1шт.

85

26110R1

LOCK NUT,1/4"-20, GC

NUT - hex lock, 1/4 inch NC (Grade 8)

1шт.

86

1281151C1

GRIP

- bar (Machines built PIN CCD3551 and after)

1шт.

87

75960C1

ROD

BAR - hitch

1шт.

88

424-1272

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 2

- hex, 3/4 NC x 4-1/2 inch (grade 2)

1шт.

89

492-11075

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

90

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC

1шт.

91

425-1016

NUT,1"-8, G5

- hex, 1 inch NC

1шт.

92

492-11100

LOCK WASHER,1"

WASHER, LOCK, 1"

1шт.
