(9A-106) - DOUBLE DISCHARGE TUBE SACKER, MACHINES BUILT PRIOR TO 1979

Запчасти Case IH 1350 (9A-106) - DOUBLE DISCHARGE TUBE SACKER, MACHINES BUILT PRIOR TO 1979 (09) - CHASSIS ATTACHMENTS

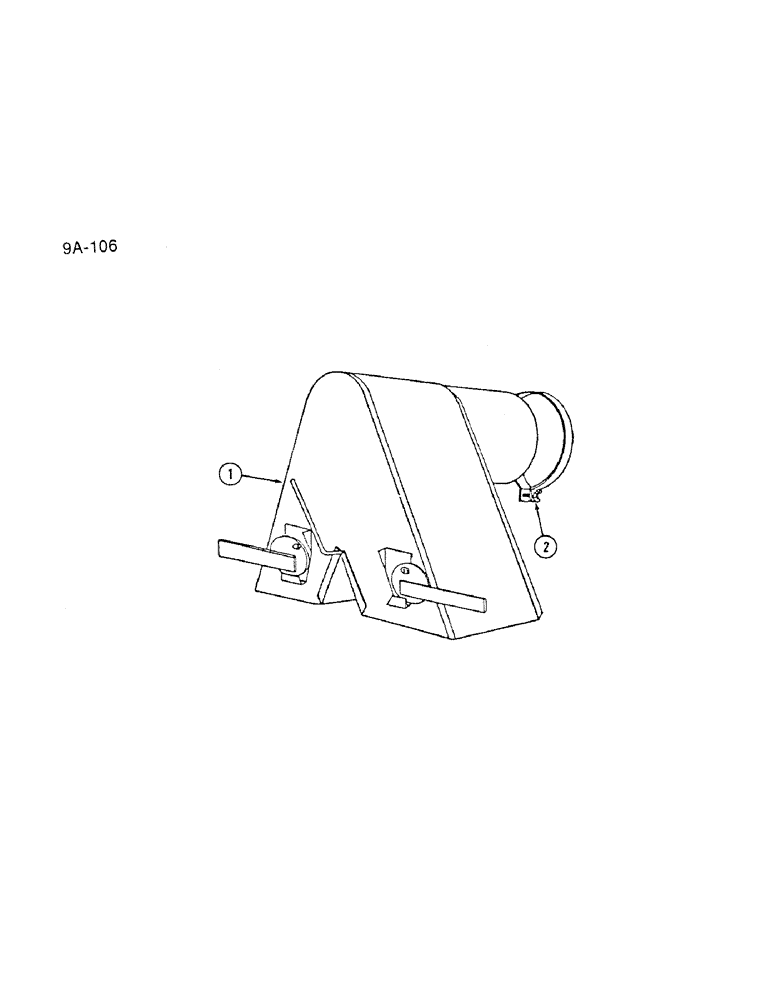

Схема запчастей Case IH 1350 - (9A-106) - DOUBLE DISCHARGE TUBE SACKER, MACHINES BUILT PRIOR TO 1979 (09) - CHASSIS ATTACHMENTS
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

NSS

NOT SOLD SEPARAT

TUBE SACKER - double discharge (Order as field attachment)

1шт.

2

58009C1

BAND

- holding

1шт.

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

1шт.

425-106

NUT,3/8"-16, Cl 5

1шт.
