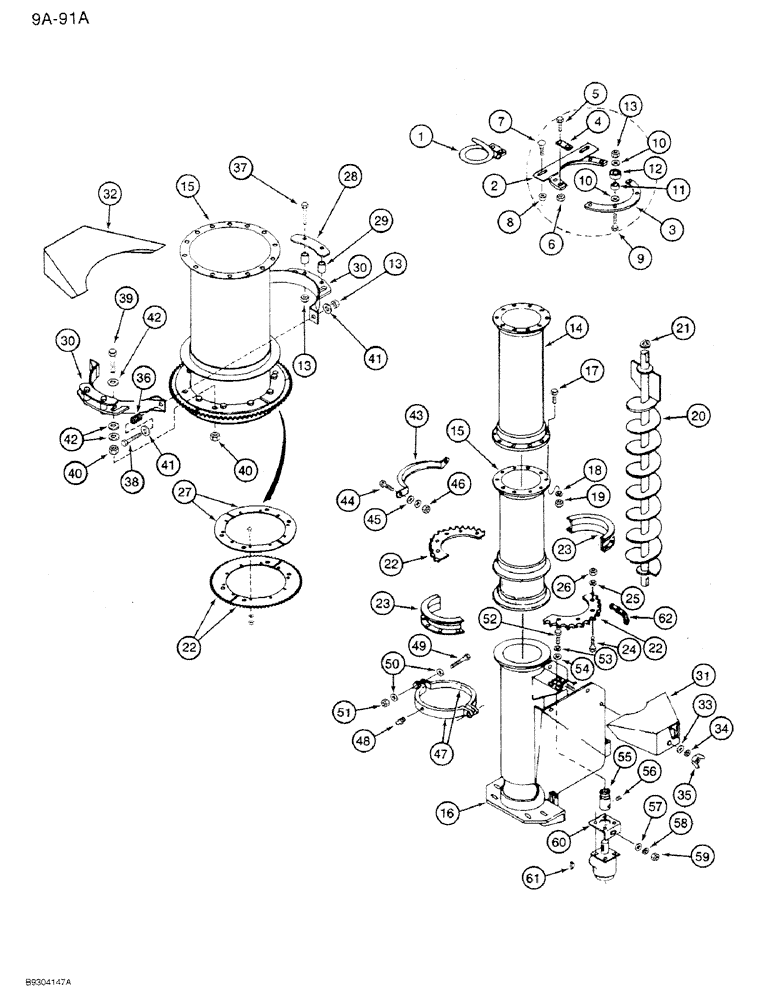

Запчасти Case IH 1350 (9A-091A) - DISCHARGE AUGER, WITH HYDRAULIC CONTROL, HYDRAULIC SWING, 1250 MACHINES, P.I.N. 7001 AND AFTER (09) - CHASSIS ATTACHMENTS

1

1281277C1

HOLDER

- hose

1шт.

2

64943C1

BRACKET

- SWIVEL RING

1шт.

3

64941C1

SUPPORT

RING- SWIVEL (if used)

1шт.

4

64942C2

BRACKET - swivel ring (if used)

2шт.

5

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

4шт.

6

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex lock, 3/8 inch NC

4шт.

7

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G5, Full Thd

2шт.

8

9413994

LOCK NUT,5/16"-18, GC

NUT- lock, 5/16 inch, Grade 8

2шт.

9

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

4шт.

10

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

8шт.

11

75930C1

WASHER

SLEEVE

4шт.

12

476876R91

BEARING ASSY,12.71mm ID x 34.92mm OD x 11mm W

BEARING- BALL

4шт.

13

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex lock, 3/8 inch NC

4шт.

14

1281319C1

TUBE,18" Length

ASSEMBLY - upper, 18"

1шт.

15

1281224C1

TUBE,18" Length

ASSY - lower, 18"

1шт.

16

59125C1

TROUGH

HOUSING - discharge

1шт.

17

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

10шт.

18

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

10шт.

19

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

10шт.

20

1281225C1

AUGER

1шт.

21

F62235

SNAP RING,#112, Ext

Ring, Snap, #112, Ext

1шт.

22

76038C1

SPROCKET ASSY.

SPROCKET - split, 80 teeth

1шт.

23

1281221C1

BAND

- split, slip ring (if used)

2шт.

24

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

10шт.

25

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

10шт.

26

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

10шт.

27

103624A1

PLATE

- split, sprocket backing (if used)

1шт.

28

103622A1

PLATE

- clamp

2шт.

29

103623A1

SPACER

4шт.

30

103625A1

BAND

- tube

2шт.

31

79905C1

SHIELD

- swivel motor with decal (if used)

1шт.

32

103626A1

SHIELD

- swivel motor with decal

1шт.

33

28588R1

WASHER

- flat, 11/32 x 11/16 x 3/64 inch

1шт.

34

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

REF#47 SHOULD READ 1281212C1 9/4/96

1шт.

35

7500032

BUSHING

NUT - 5/16-18 inch, wing

1шт.

36

103633A1

SPRING

2шт.

37

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

- hex, 3/8 NC x 1-3/4 inch

4шт.

38

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- hex, 3/8 NC x 2 inch

2шт.

39

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

4шт.

40

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

8шт.

41

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

4шт.

42

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 5/64") 1/2", SAE

12шт.

43

57973C1

CLAMP

(if used)

1шт.

44

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

2шт.

45

28588R1

WASHER

- flat, 11/32 x 11/16 x 3/64 inch

8шт.

46

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

47

64942C2

BRACKET - swivel ring

2шт.

48

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING - lube, 1/4 inch NF, straight

4шт.

49

413-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

2шт.

50

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

4шт.

51

425-106

NUT,3/8"-16, Cl 5

2шт.

52

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

4шт.

53

492-11038

LOCK WASHER,3/8"

4шт.

54

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

4шт.

55

64963C1

SPROCKET ASSY.

SPROCKET - 8 tooth

1шт.

57

28588R1

WASHER

- flat, 11/32 x 11/16 x 3/64 inch

1шт.

58

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

59

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

1шт.

60

1281276C1

PLATE

BRACKET - pump mounting (if used)

1шт.

61

126-124

WOODRUFF KEY,#15, 1/4" x 1", HT

1шт.

62

REF

INSTRUCTION

CHAIN - use 85 links from bulk roll 1790D, 1 connecting link 1301D, and 1 offset link 1303D

1шт.

62

1301D

CHAIN LINK

LINK - chain, connecting

1шт.

62

1303D

LINK

- chain, offset

1шт.

1790D

CHAIN (AG)

CHAIN - bulk, 10' roll

1шт.
