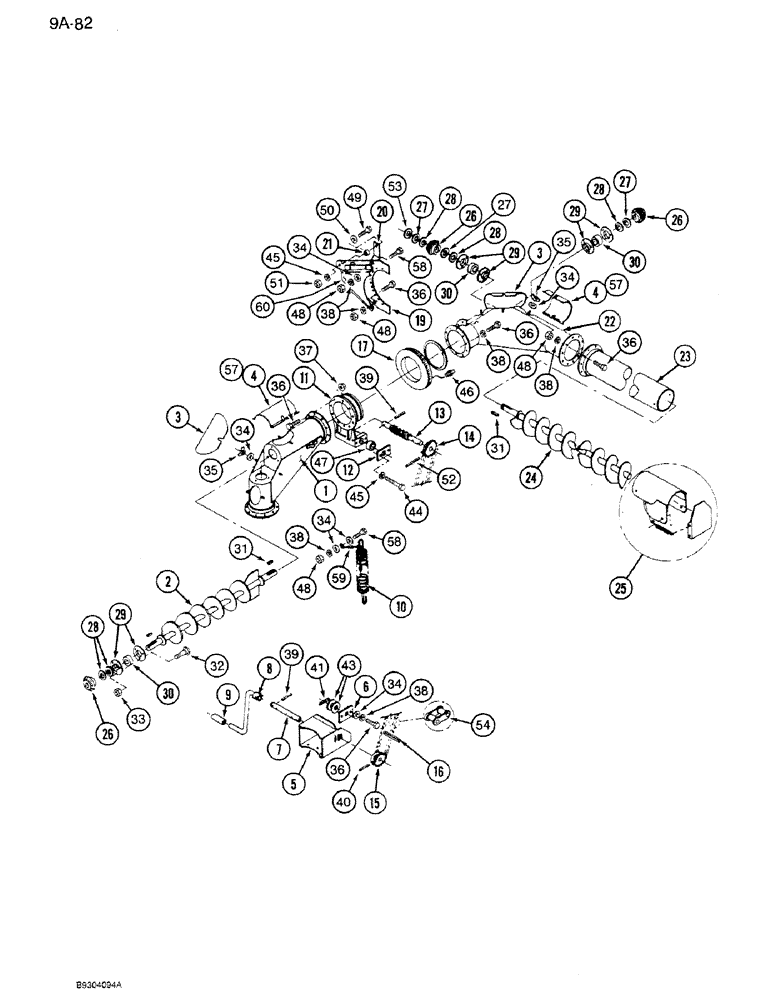

Запчасти Case IH 1350 (9A-082) - DISCHARGE AUGER, WITH MECHANICAL CONTROL, HORIZONTAL AUGERS, 1250 MACHINES, P.I.N. 7001 AND AFTER (09) - CHASSIS ATTACHMENTS

1

75921C1

ELBOW

- discharge

1шт.

2

57995C1

AUGER

- cross

1шт.

3

57990C1

SHIELD

- bevel gear

2шт.

4

475755R1

PLATE

DOOR - clean out

4шт.

5

1281195C1

BRACKET

- lift assist (Mechanical lift and swing only)

1шт.

6

73655C91

PLATE

- adjustment (Mechanical lift and swing only)

2шт.

73652C1

BUSHING

- adjustment plate (Mechanical lift and swing only)

2шт.

7

1281194C1

SHAFT

- back auger (Mechanical lift and swing only)

1шт.

8

475753R1

CRANK

- back auger (Mechanical lift and swing only)

1шт.

9

487876R1

GRIP

- crank, plastic (Mechanical lift and swing only)

1шт.

10

75957C1

SPRING

- extension

1шт.

11

1281125C1

HOLDER

- ring and worm gear (Mechanical lift and swing only)

1шт.

12

1281184C1

PLATE

- bearing holder (Mechanical lift and swing only)

2шт.

13

1281223C1

SHAFT

- worm gear (Mechanical lift and swing only)

1шт.

14

1281187C1

SPROCKET ASSY.

SPROCKET - worm gear, 18 Tooth (Mechanical lift and swing only)

1шт.

15

73654C1

SPROCKET ASSY.

SPROCKET - crank shaft, 9 Tooth (Mechanical lift and swing only)

1шт.

16

1281114C1

PIN

- quick attachable (Mechanical lift and swing only)

1шт.

17

75984C1

GEAR

- ring

1шт.

18

64708C1

RING

- retaining

2шт.

19

73647C1

PLATE

- lift lever, 45 inch only

1шт.

20

1281196C1

BRACKET

- spring holding (Mechanical lift and swing only)

1шт.

21

542716R1

SPACER

1шт.

22

75922C1

ELBOW

- discharge

1шт.

23

1281226C1

TUBE,8" OD, 103" Length

- discharge

1шт.

24

57981C1

AUGER

1шт.

25

145809C91

HOOD

ASSEMBLY - unloading auger

1шт.

26

487873R1

GEAR

- bevel, 14 Tooth

3шт.

27

NSS

NOT SOLD SEPARAT

WASHER - flat, 1-13/32 x 1-5/8 x 3/64 inch (If equipped)

4шт.

28

487922R1

WASHER

- flat, 1-1/8 x 1-5/8 x 9/64 inch

4шт.

29

565631R1

BEARING CAP,2.441" ID x 4.4375" OD x 0.34375"

- bearing mounting

8шт.

30

487919R92

BALL BEARING

- ball

1шт.

487920R91

COLLAR

- bearing locking, with setscrew

3шт.

31

619720R1

KEY,5/16" Sq x 1 1/8", Par

- parallel, 5/16 x 1-1/8 inch

1шт.

32

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - round head square neck, 3/8 x 1 inch

9шт.

33

425-104

NUT,1/4"-20, Cl 5

- hex, 3/8 inch

9шт.

34

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

14шт.

35

NSS

NOT SOLD SEPARAT

NUT - wing, 5/16 inch

4шт.

36

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 x 3/4 inch

44шт.

37

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

10шт.

38

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

- lock, 5/16 inch

29шт.

39

NSS

NOT SOLD SEPARAT

PIN - roll, 1/4 x 1-1/4 inch

3шт.

40

NSS

NOT SOLD SEPARAT

PIN - roll, 3/16 x 1-1/4 inch

1шт.

41

NSS

NOT SOLD SEPARAT

PIN - roll, 3/16 x 1 inch (If equipped)

2шт.

43

NSS

NOT SOLD SEPARAT

WASHER - flat

4шт.

44

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

4шт.

45

492-11038

LOCK WASHER,3/8"

5шт.

46

NSS

NOT SOLD SEPARAT

FITTING - lube, 1/4 inch

1шт.

47

1281186C1

CUP

- tapered roller bearing (Mechanical lift and swing only) (Machines built prior to PIN CCD2176)

4шт.

47

1995593C1

BUSHING

CUP - tapered roller bearing (Mechanical lift and swing only) (Machines built PIN CCD2176 and after)

4шт.

47

1281185C91

TAPERED BEARING,0.75" ID x 1.781" OD x 0.61"

CONE - bearing, outer hub (Mechanical lift and swing only) (Machines built prior to PIN CCD2176)

4шт.

47

651815R91

BEARING ASSY,7.508" ID x 17.82" OD x 6"

CONE - bearing, outer hub (Mechanical lift and swing only) (Machines built PIN CCD2176 and after)

4шт.

47

651815R91GV

BEARING CONE

Value, Cone Bearing

4шт.

48

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

13шт.

49

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 x 1 inch

1шт.

50

NSS

NOT SOLD SEPARAT

WASHER - flat

1шт.

53

F62235

SNAP RING,#112, Ext

Ring, Snap, #112, Ext

1шт.

54

NSS

NOT SOLD SEPARAT

CHAIN - use 113 links from roll 1301D and 1 connecting link 1790D (Mechanical lift and swing only)

1шт.

57

1265797C1

SEALING STRIP

- sealing

4шт.

58

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 x 1 inch

2шт.

59

NSS

NOT SOLD SEPARAT

CHAIN - safety link (Mechanical lift and swing only)

1шт.

60

1281198C1

CHANNEL

- lever brace (Mechanical lift and swing only)

1шт.
