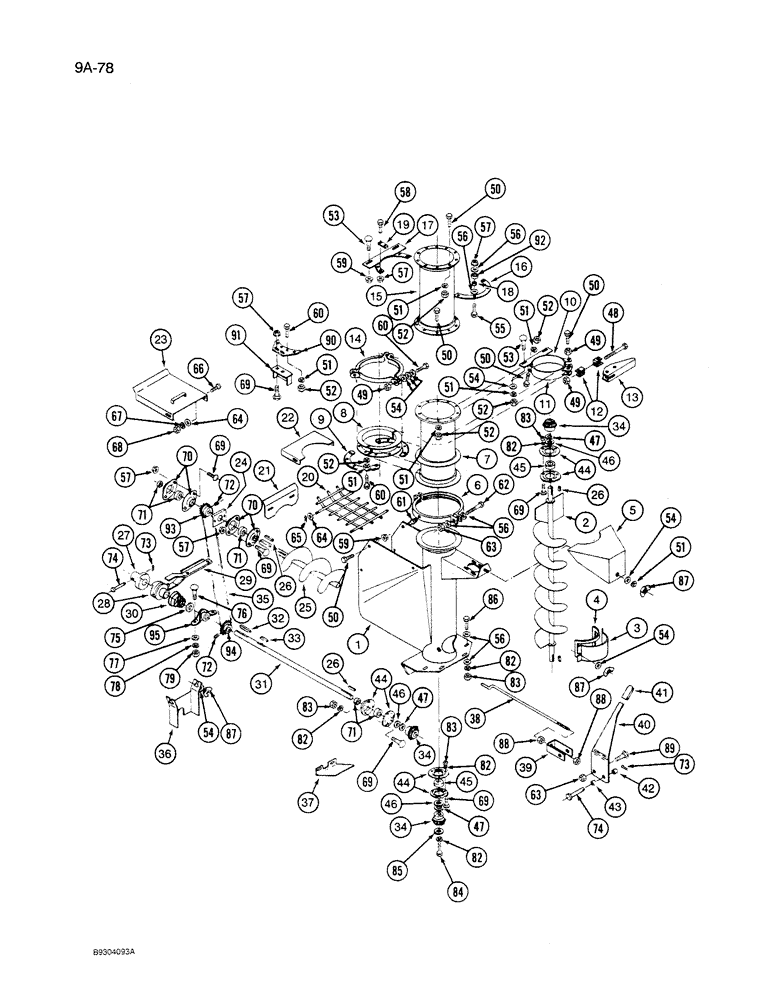

Запчасти Case IH 1350 (9A-078) - DISCHARGE AUGER, WITH MECHANICAL CONTROL, FEED & VERTICAL AUGERS, 1250 MACHINES, P.I.N. 7001 & AFTER (09) - CHASSIS ATTACHMENTS

1

59125C1

TROUGH

HOUSING - discharge unit

1шт.

2

1281225C1

AUGER

- vertical

1шт.

F62235

SNAP RING,#112, Ext

Ring, Snap, , if equipped #112, Ext

1шт.

3

475755R1

PLATE

DOOR - clean out

1шт.

4

1265797C1

SEALING STRIP

- clean out door seal

1шт.

5

79905C1

SHIELD

- with decal, swivel motor

1шт.

6

1281212C1

CLAMP

- swivel, heavy duty (If equipped)

2шт.

7

1281322C1

TUBE,18" Length

ASSEMBLY - lower, vertical 18 inch

1шт.

8

1281221C1

BAND

- slip ring, half

2шт.

9

76038C1

SPROCKET ASSY.

SPROCKET - spilt, 80 tooth

1шт.

10

1281182C1

BAND

- plain

1шт.

11

1281183C1

BAND

- handle

1шт.

12

1281265C1

YOKE

- brake

2шт.

13

1281222C1

HANDLE

- brake

1шт.

14

57973C1

CLAMP

- swivel (If equipped)

1шт.

15

1281192C1

TUBE,18" Length

ASSEMBLY - upper vertical, 18 inch

1шт.

16

64941C1

SUPPORT

RING - swivel

1шт.

17

64943C1

BRACKET

- swivel ring

1шт.

18

75930C1

WASHER

SPACER - bearing

4шт.

19

64942C1

BAR

BRACKET - swivel ring

2шт.

20

1250999C1

GRATE

- push auger

1шт.

21

59123C1

GASKET

- steel

1шт.

22

57977C1

DEFLECTOR

- feed trough

1шт.

23

475718R2

COVER

- unloading trough

1шт.

24

59122C1

SPACER

- bearing

1шт.

25

59127C1

AUGER

- push

1шт.

26

619720R1

KEY,5/16" Sq x 1 1/8", Par

- parallel, 5/16 x 1-1/8 inch

4шт.

27

57307C1

CLUTCH

- front

1шт.

28

492100R1

CLUTCH

- rear

1шт.

29

542709R1

ARM

- clutch

1шт.

30

488444R1

SPRING

- clutch

1шт.

31

59126C1

SHAFT

- 1-1/8 diameter x 31 inch

1шт.

F62235

SNAP RING,#112, Ext

Ring, Snap, , if equipped #112, Ext

1шт.

32

629280R1

KEY,5/16" Sq x 3 1/2", Par

- parallel, 5/16 x 3-5/8 inch

1шт.

33

NSS

NOT SOLD SEPARAT

KEY - parallel, 5/16 x 1 inch

1шт.

34

487873R1

GEAR

- bevel, 14 tooth

3шт.

35

NSS

NOT SOLD SEPARAT

CHAIN - use 85 links from roll 1790D, 1 connecting link 1301D and 1 offfset link 1303D

1шт.

36

77700C1

SHIELD

- chain

1шт.

37

75918C1

SUPPORT

SHIELD - lower gear

1шт.

38

75915C1

ROD

- clutch

1шт.

39

79889C1

FORK

- clutch rod

1шт.

40

542710R2

HANDLE

- clutch

1шт.

41

488448R1

GRIP

- clutch handle

1шт.

42

75964C1

SPACER

1шт.

43

SA2172

SPACER,3/8" Pipe x 1/2"

- pipe, 3/8 x 3/8 inch

1шт.

44

565631R1

BEARING CAP,2.441" ID x 4.4375" OD x 0.34375"

- bearing

6шт.

45

487919R92

BALL BEARING

- ball

2шт.

487920R91

COLLAR

- with setscrew, locking

2шт.

46

487922R1

WASHER

- flat, 1-1/8 x 1-5/8 x 9/64 inch

3шт.

47

NSS

NOT SOLD SEPARAT

WASHER - flat, 1-13/32 x 1-5/8 x 3/64 inch (If equipped)

3шт.

48

413-572

BOLT,Hex, 5/16" - 18 x 4-1/2", Gr 5

- hex, 5/16 x 4-1/2 inch

1шт.

49

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex, 5/16 inch

6шт.

50

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 x 3/4 inch

25шт.

51

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

38шт.

52

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex, 5/16 inch

25шт.

53

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G5, Full Thd

4шт.

54

28588R1

WASHER

- flat, 11/32 x 11/16 x 1/16 inch

16шт.

55

434-624

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/2", Gr 5

BOLT - hex, 3/8 x 1-1/2 inch

4шт.

56

27701R1

WASHER

- 7/16 x 1 x 5/64 inch

20шт.

57

128366C1

LOCK NUT

- hex flange lock, 3/8 inch

12шт.

58

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 x 1 inch

2шт.

59

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch

3шт.

60

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 x 1 inch

14шт.

61

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING - lube, 1/4 inch

2шт.

62

413-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

4шт.

63

425-106

NUT,3/8"-16, Cl 5

5шт.

64

492-11038

LOCK WASHER,3/8"

6шт.

65

32-616

COTTER PIN,3/32" x 1"

Pin, Split (Cotter), 3/32" x 1"

4шт.

66

NSS

NOT SOLD SEPARAT

BOLT - truss head, 1/4 x 1/2 inch

2шт.

67

25707R1

WASHER,.281" x 5/8" x .075", HDN

- lock, 1/4 inch

2шт.

68

26110R1

LOCK NUT,1/4"-20, GC

NUT - hex, 1/4 inch

1шт.

69

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - round head square neck, 3/8 x 1 inch

15шт.

70

581469R1

FLANGE,Bearing

- bearing retainer

4шт.

71

487919R92

BALL BEARING

- ball

3шт.

72

NSS

NOT SOLD SEPARAT

SCREW - set, 5/16 x 5/16 inch

2шт.

73

432-1016

COTTER PIN,5/32" x 1"

5/32" x 1"

2шт.

74

57305C1

PIN

- clevis, 3/8 x 2-3/8 inch

2шт.

75

24403D

WASHER

- plain, 1-5/32 x 2-1/4 x 1/32 inch

1шт.

76

433-828

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 3/4", Gr 5

BOLT - round head square neck, 1/2 x 1-3/4 inch

2шт.

77

25710R1

WASHER

- flat, hardened, 17/32 x 1-1/16 x 9/64 inch

2шт.

78

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

79

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

82

492-11038

LOCK WASHER,3/8"

11шт.

83

425-106

NUT,3/8"-16, Cl 5

9шт.

84

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 x 1 inch

1шт.

85

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

- flat, .406 x 1.75 x .134 inch

1шт.

86

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - hex, 3/8 x 1-1/4 inch

2шт.

87

7500032

BUSHING

NUT - wing, 5/16 inch

5шт.

88

425-107

NUT,7/16"-14, G5

- hex, 7/16 inch

2шт.

89

434-620

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/4", G5, Full Thd

1шт.

90

1281227C1

HOLDER

- swivel stop

1шт.

91

1281193C1

STOP

- swivel

1шт.

92

476876R91

BEARING ASSY,12.71mm ID x 34.92mm OD x 11mm W

BEARING - ball

4шт.

93

487860R1

SPROCKET ASSY.

SPROCKET - 28 tooth

1шт.

94

75924C1

SPROCKET ASSY.

SPROCKET - 18 tooth

1шт.

95

59128C91

BEARING ASSY,28.57mm ID

- pillow block

1шт.
