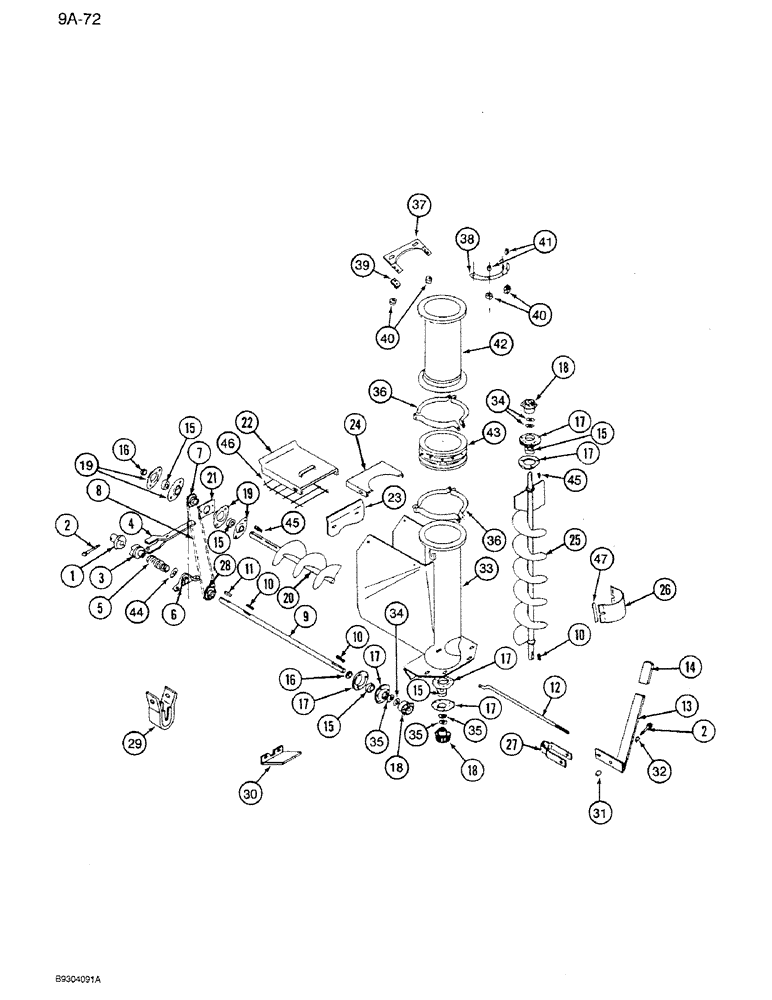

Запчасти Case IH 1350 (9A-072) - DISCHARGE AUGER, VERTICAL AUGER, 1250 MACHINES, PRIOR TO P.I.N. 7001 (09) - CHASSIS ATTACHMENTS

1

57307C1

CLUTCH

- front

1шт.

2

57305C1

PIN

- clutch retaining

1шт.

3

492100R1

CLUTCH

- rear

1шт.

4

542709R1

ARM

- clutch

1шт.

5

488444R1

SPRING

- clutch

1шт.

6

59128C91

BEARING ASSY,28.57mm ID

- pillow block

1шт.

7

487860R1

SPROCKET ASSY.

SPROCKET - driven, 28 tooth

2шт.

8

REF

INSTRUCTION

CHAIN - use 29 links from 569088R1, 1 connecting link 457113R91 and 1 offset link 457114R91

1шт.

8

457113R91

CHAIN LINK

LINK - connecting

1шт.

8

457114R91

CHAIN LINK

LINK - offset

1шт.

9

59126C1

SHAFT

- 1-1/8 x 31 inch

1шт.

10

619720R1

KEY,5/16" Sq x 1 1/8", Par

- parallel, 5/16 x 1-1/8 inch

3шт.

11

629280R1

KEY,5/16" Sq x 3 1/2", Par

- parallel, 5/16 x 3-1/2 inch

1шт.

12

75915C1

ROD

- clutch

1шт.

13

542710R2

HANDLE

- clutch

1шт.

14

488448R1

GRIP

- handle

2шт.

15

487919R91

BEARING

- ball

5шт.

16

487920R91

COLLAR

- locking, with setscrew

2шт.

17

565631R1

BEARING CAP,2.441" ID x 4.4375" OD x 0.34375"

- bearing mounting

6шт.

18

487873R1

GEAR

- 14 tooth

3шт.

19

581469R1

FLANGE,Bearing

- bearing retainer

4шт.

20

59127C1

AUGER

- push

1шт.

21

59122C1

SPACER

- bearing

1шт.

22

475718R2

COVER

- unloading trough

1шт.

23

59123C1

GASKET

- steel

1шт.

24

57977C1

DEFLECTOR

- feed trough

1шт.

25

64960C1

AUGER

- vertical, 45 inch

1шт.

REF #25-P/N 64960C1 AUGER IS 82.25" END TO END. P/N 64959C1 AUGER IS 58.25" END TO END. PARTSBOOK IN ERROR. SEE QUALITY COMMENTS FOR FURTHER DETAIL INFO. JBEDFORD 2/18/97.

1шт.

25

64959C1

AUGER

- vertical, 21 inch

1шт.

26

475755R1

PLATE

DOOR - clean out

1шт.

27

75916C1

YOKE

- clutch

1шт.

28

488620R1

SPROCKET ASSY.

SPROCKET - 24 tooth (Replaces 75924C1)

1шт.

569088R1

CHAIN (AG)

CHAIN - bulk roll

1шт.

29

77700C1

SHIELD

- chain (Replaces 75917C1)

1шт.

30

75918C1

SUPPORT

SHIELD - lower gear

1шт.

31

75964C1

SPACER

1шт.

32

SA2172

SPACER,3/8" Pipe x 1/2"

- pipe, 3/8 inch

1шт.

33

59125C1

TROUGH

- unloading

1шт.

34

487923R1

WASHER

- flat, 1-1/8 x 1-5/8 inch

3шт.

35

487922R1

WASHER

- flat, 1-1/8 x 1-5/8 inch

3шт.

36

57973C1

CLAMP

- swivel (Three piece)

2шт.

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

6шт.

28588R1

WASHER

- flat, 11/32 x 22/32 x 1/16 inch

12шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex, 5/16 inch NC

6шт.

36

1281212C1

CLAMP

- swivel, heavy duty (Two piece)

4шт.

413-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

8шт.

28588R1

WASHER

- flat, 7/16 x 1 x 5/64 inch

12шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex, lock, 3/8 inch NC

8шт.

37

64943C1

BRACKET

- swivel ring

1шт.

38

64941C1

SUPPORT

RING - swivel

1шт.

39

64942C1

BAR

BRACKET - ring attachment

2шт.

40

476876R91

BEARING ASSY,12.71mm ID x 34.92mm OD x 11mm W

BEARING - ball

4шт.

41

75930C1

WASHER

SLEEVE

4шт.

42

75919C1

TUBE

- vertical, 18 inch (Use with spacer 1265833C1)

1шт.

42

1986266C1

TUBE

- vertical, 22 inch, hydraulic control and mechanical control machines built prior to PIN 1919 (Replaces 75919C1)

1шт.

42

145710C1

TUBE,21" Length

- vertical, mechanical control machines built PIN 1920 and after

1шт.

43

1265833C1

TUBE,3.12" Length

SPACER - tube 3 inch (Use with tube 75919C1 only)

1шт.

44

488445R1

WASHER

- flat, 1-1/4 x 1-3/4 inch

7шт.

45

Q1443

KEY,5/16" Sq x 1 1/2", Par

- square parallel, 5/16 x 1-1/2 inch

2шт.

46

1250999C1

GRATE

1шт.

47

1265797C1

SEALING STRIP

- seal

1шт.
