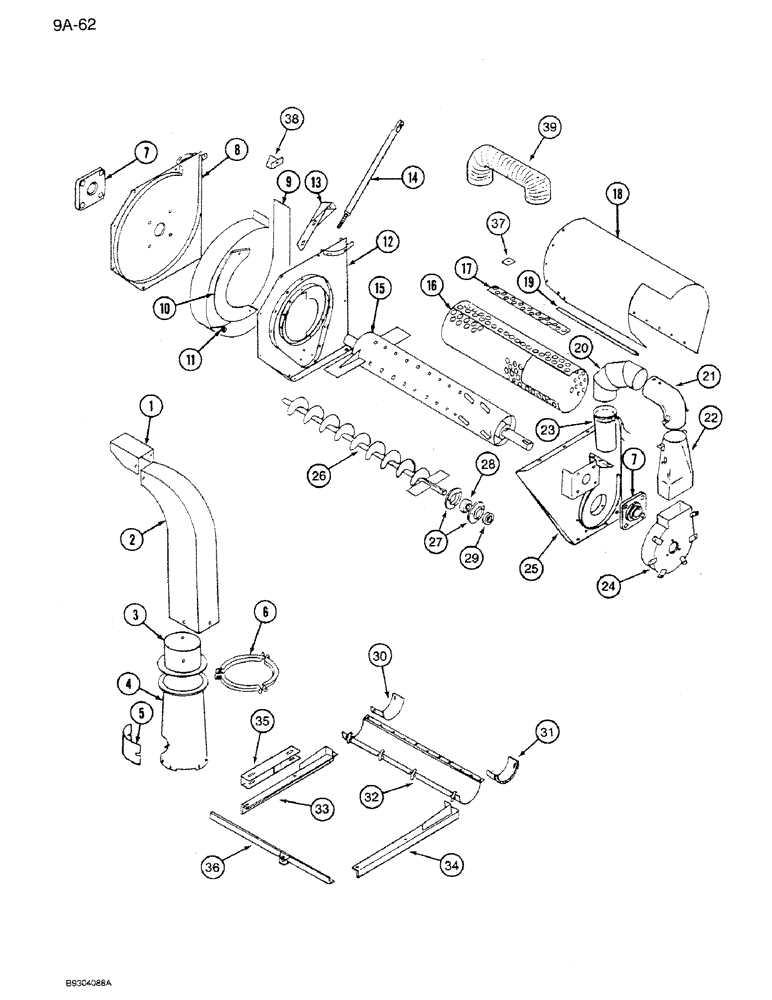

Запчасти Case IH 1350 (9A-062) - CORN SHELLER ATTACHMENT (09) - CHASSIS ATTACHMENTS

1

58459C1

DEFLECTOR - cob stacker pipe

1шт.

440-1258

SCREW,Cross Pan Hd, 1/4"-20 x 1/2"

- machine, pan head Phillips, 1/4 NC x 1/2 inch

2шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

- hex flange lock, 1/4 inch NC

2шт.

2

58460C1

PIPE - cob stacker

1шт.

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G5, Full Thd

3шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

3шт.

3

58461C1

PIPE - swivel collar

1шт.

4

58462C1

PIPE - cob stacker bottom

1шт.

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G5, Full Thd

4шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

4шт.

5

58463C1

DOOR - cleanout

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

2шт.

6

475751R91

CLAMP

- ring

1шт.

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

3шт.

28588R1

WASHER

- flat, 11/32 x 11/16 x 3/64 inch

9шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

3шт.

7

58465C91

FLANGED BEARING

BEARING - flange block

2шт.

434-820

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/4", Gr 5

BOLT - round head square neck, 1/2 NC x 1-1/4 inch

8шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

8шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

8шт.

8

58466C1

FRAME - back head

1шт.

413-596

BOLT,Hex, 5/16" - 18 x 6", Gr 5

- hex, 5/16 NC x 6 inch

8шт.

131-1215

LOCK NUT,5/16"-18, GC

NUT, LOCK, 5/16"-18, GC

8шт.

9

58467C1

BAND

- cob thrower housing

1шт.

10

58468C1

PLATE

- cob retard

1шт.

434-824

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

BOLT - round head square neck, 1/2 NC x 1-1/2 inch

1шт.

495-21050

WASHER,7/16"

- flat, 1/2 x 1-1/4 x 1/16 inch

1шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1шт.

470-13816

SCREW,Slotted Pan Hd, 3/8"-16 x 1"

- machine, pan head slotted, 3/8 NC x 1 inch

2шт.

492-11038

LOCK WASHER,3/8"

2шт.

425-106

NUT,3/8"-16, Cl 5

2шт.

11

542716R1

SPACER

- 3/8 x 9/16 x 9/32 inch

2шт.

12

58472C1

FRAME - middle divider

1шт.

13

58469C1

BRACKET - support pipe hanger

1шт.

14

58473C1

ROD ASSEMBLY - support

1шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

15

58474C1

SHAFT

CYLINDER AND SHAFT - main

1шт.

16

58475C1

SCREEN

- shelling housing

1шт.

17

58476C1

STRAP

- screen support

2шт.

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - round head square neck, 3/8 NC x 3/4 inch

15шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

15шт.

18

58477C1

SHELL - main sheller housing

1шт.

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

8шт.

28588R1

WASHER

- flat, 11/32 x 11/16 x 3/64 inch

8шт.

19

58478C1

BRACKET - clean out door lock

1шт.

440-1258

SCREW,Cross Pan Hd, 1/4"-20 x 1/2"

- machine, pan head Phillips, 1/4 NC x 1/2 inch

5шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

- hex flange lock, 1/4 inch NC

8шт.

20

475790R1

PIPE

ELBOW - 4 inch, dust collector

1шт.

21

58500C1

ELBOW

- pipe, corn thrower

1шт.

22

58501C1

PIPE

- corn thrower base

1шт.

23

58502C1

BOOT

- canvas

1шт.

24

58503C1

HOUSING - corn thrower

1шт.

25

58504C1

FRAME - front head

1шт.

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - round head square neck, 3/8 NC x 3/4 inch

5шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

5шт.

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

5шт.

28588R1

WASHER

- flat, 11/32 x 11/16 x 3/64 inch

5шт.

413-572

BOLT,Hex, 5/16" - 18 x 4-1/2", Gr 5

- hex, 5/16 NC x 4-1/2 inch

6шт.

131-1215

LOCK NUT,5/16"-18, GC

NUT, LOCK, 5/16"-18, GC

6шт.

26

58519C1

AUGER

- corn conveying

1шт.

27

462360R1

FLANGED BEARING

- bearing mounting

4шт.

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G5, Full Thd

6шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

6шт.

28

204807C91

BEARING ASSY,25.4mm ID x 52mm OD x 15mm W

BEARING - ball

2шт.

29

455102R21

COLLAR

- locking, bearing, with set screw

2шт.

30

58520C1

BRACKET - auger housing, left hand

1шт.

31

58521C1

BRACKET

- auger housing, right hand

1шт.

440-13112

SCREW,Cross Pan Hd, 5/16"-18 x 3/4"

- machine, pan head Phillps, 5/16 NC x 3/4 inch

4шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

4шт.

32

58523C1

DOOR

- clean out

1шт.

440-1258

SCREW,Cross Pan Hd, 1/4"-20 x 1/2"

- machine, pan head Phillips, 1/4 NC x 1/2 inch

5шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

- hex flange lock, 1/4 inch NC

5шт.

33

58525C1

ANGLE - rear bottom frame

1шт.

434-824

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

BOLT - round head square neck, 1/2 NC x 1-1/2 inch

2шт.

434-820

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/4", Gr 5

BOLT - round head square neck, 1/2 NC x 1-1/4 inch

2шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

34

58526C1

ANGLE - front bottom frame

1шт.

434-824

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

BOLT - round head square neck, 1/2 NC x 1-1/2 inch

4шт.

495-21056

WASHER,1/2"

- flat, 9/16 x 1-3/8 x 3/32 inch

10шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

35

58527C1

SPACER

- rear frame

1шт.

434-824

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

BOLT - round head square neck, 1/2 NC x 1-1/2 inch

2шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

36

58528C1

ANGLE - side bottom frame

1шт.

434-820

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/4", Gr 5

BOLT - round head square neck, 1/2 NC x 1-1/4 inch

2шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

37

76938C1

BRACKET

- sheller screen

14шт.

38

76939C1

BRACE

- tank reinforcement

1шт.

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

1шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1шт.

39

58722C1

TUBE,72 mm Length

- hammermill, by-pass

1шт.
