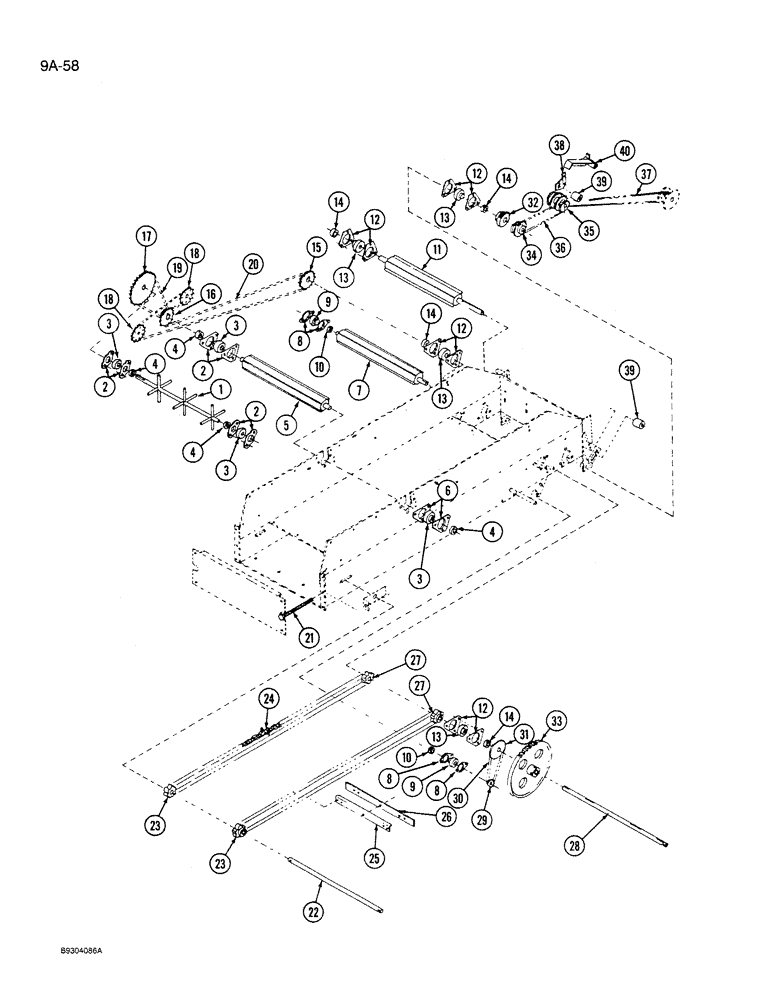

Запчасти Case IH 1350 (9A-058) - BALED HAY AND GRAIN FEEDER, ROTOR AND DRIVE (09) - CHASSIS ATTACHMENTS

1

75461C1

ROTOR

ASSEMBLY - finger

1шт.

2

50591

FLANGE,52mm

- two bolt bearing (Replaces 612031R1)

2шт.

3

204807C91

BEARING ASSY,25.4mm ID x 52mm OD x 15mm W

BEARING - ball

4шт.

4

455102R21

COLLAR

- lock, with setscrew

4шт.

5

75440C1

ROTOR

ASSEMBLY - hopper

1шт.

6

133066C1

FLANGE

TTE - bearing

1шт.

7

75447C1

ROTOR

ASSY - throat

1шт.

8

469924R1

FLANGE

- bearing

4шт.

9

455957R92

BEARING ASSY,19.05mm ID x 47mm OD x 14mm W

- ball

2шт.

10

455958R11

COLLAR,19.05mm ID x 32.94mm OD x 13.49mm W

ASSEMBLY - lock, bearing

1шт.

11

75441C1

ROTOR

- upper

8шт.

12

662649R1

RETAINER

FLANGE - bearing

1шт.

13

487919R91

BEARING

- ball

4шт.

14

487920R91

COLLAR

- bearing locking, with setscrew

1шт.

15

488620R1

SPROCKET ASSY.

SPROCKET - 24 tooth

1шт.

16

75473C1

SPROCKET ASSY.

SPROCKET ASSEMBLY - 18 tooth and 9 tooth

1шт.

17

485969R1

SPROCKET ASSY.

SPROCKET - 48 tooth

1шт.

18

487863R1

SPROCKET - idler, 18 tooth

1шт.

19

REF

INSTRUCTION

CHAIN - roller (Use 51 links from roll 1791D, 1 offset link 1315D and 1 connecting link 1301D)

1шт.

20

REF

INSTRUCTION

CHAIN - roller (Use 195 links from roll 1790D and 1 connecting link 1301D)

1шт.

21

75453C1

BOLT,1/2" - 13

ASSEMBY - tightener

2шт.

22

75451C1

ROD

- idler shaft

1шт.

23

75452C1

SPROCKET ASSY.

SPROCKET - conveyor idler

2шт.

24

75469C1

CHAIN (AG)

CHAIN - conveyor

2шт.

25

75470C1

ANGLE

- paddle

10шт.

26

75471C1

STRIP

11шт.

27

75442C1

SPROCKET ASSY.

SPROCKET - conveyor drive

2шт.

28

76363C1

SHAFT

- conveyor drive

1шт.

29

75448C1

SPROCKET ASSY.

SPROCKET - 13 tooth

1шт.

30

NSS

NOT SOLD SEPARAT

CHAIN - roller (Use 45 links from roll 1791D, 1 offset link 1315D and 1 connecting link 1301D)

1шт.

31

487860R1

SPROCKET ASSY.

SPROCKET - 28 tooth

1шт.

32

75475C1

GEAR

- spur, 16 tooth

1шт.

33

75476C1

GEAR

- spur, 80 tooth

1шт.

34

75477C1

SPROCKET ASSY.

SPROCKET - cluster

1шт.

35

76542C1

SPROCKET ASSY.

SPROCKET - idler cluster

1шт.

36

REF

INSTRUCTION

CHAIN - roller (Use 35 links from roll 1790D 1 offset link 1315D and 1 connecting link 1301D)

1шт.

37

REF

INSTRUCTION

CHAIN - roller (Use 47 links from roll 1791D, 1 offset link 1315D and 1 connecting link 1301D)

1шт.

38

75478C1

SUPPORT

- chain tightener

1шт.

39

488228R1

BLOCK

- wood

1шт.

40

76354C1

COVER

- gear

1шт.

1790D

CHAIN (AG)

CHAIN - bulk, 10 foot roll

1шт.

1791D

CHAIN (AG),#50, 192 Links x 15.88mm = 3048mm

CHAIN - bulk, 10 foot roll

1шт.
