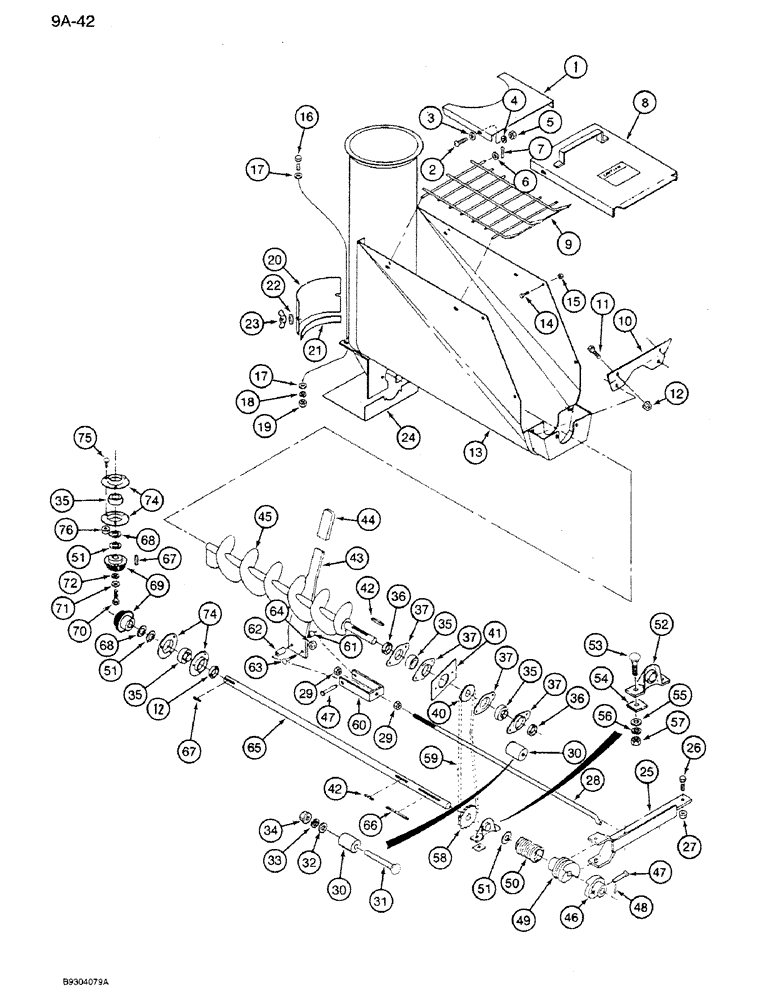

Запчасти Case IH 1350 (9A-042) - HOPPER DRIVE DISCHARGE, 1350 MACHINES (09) - CHASSIS ATTACHMENTS

1

57977C1

DEFLECTOR

- feed trough

1шт.

2

937875R1

SCREW,Serr, 1/4" - 20

- slotted truss, 1/4 NC x 1/2 inch

2шт.

3

495-11028

WASHER,1/4", SAE

flat, hardened 1/4", SAE

3шт.

4

492-11038

LOCK WASHER,3/8"

2шт.

5

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

2шт.

6

495-11034

WASHER,5/16", SAE

- flat, 1/4 inch

1шт.

7

32-1016

COTTER PIN

PIN - cotter, 5/32 x 1 inch

1шт.

8

79835C1

COVER

- back hopper, with decal

1шт.

9

79833C1

GRATE

- discharge hopper

1шт.

10

79838C1

SUPPORT

GASKET - steel

1шт.

11

412-512

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 3/4", Gr 2

BOLT - round head square neck, 5/16 NC x 3/4 inch

4шт.

12

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

4шт.

13

79829C1

HOPPER

- discharge

1шт.

14

424-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 2

- hex, 5/16 NC x 3/4 inch

4шт.

15

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

4шт.

16

424-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 2

- hex, 3/8 NC x 1-1/4 inch

3шт.

17

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

6шт.

18

492-11038

LOCK WASHER,3/8"

3шт.

19

425-106

NUT,3/8"-16, Cl 5

3шт.

20

475755R1

PLATE

DOOR - clean out

1шт.

21

1265797C1

SEALING STRIP

SEAL

1шт.

22

495-11028

WASHER,1/4", SAE

flat, hardened 1/4", SAE

2шт.

23

7500032

BUSHING

NUT - wing, 5/16 inch NC

2шт.

24

75918C1

SUPPORT

SHIELD - lower gear

1шт.

25

79828C1

ARM

- clutch

1шт.

This P/N 79828C1 is a manual arm. P/N 1547388c1 arm can be used for self contained hydraulics clutch arm.

1шт.

26

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

1шт.

27

128366C1

LOCK NUT

- hex lock, 3/8 inch NC

1шт.

28

79827C1

ROD

- clutch

1шт.

29

425-107

NUT,7/16"-14, G5

- hex, 7/16 inch NC

2шт.

30

79832C1

BOARD

IDLER - wood block

1шт.

31

411-656

BOLT - round head square neck, 3/8 x 3-1/2 inch NC

1шт.

32

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

1шт.

33

492-11038

LOCK WASHER,3/8"

1шт.

34

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

1шт.

35

487919R92

BALL BEARING

- ball

4шт.

36

487920R91

COLLAR

- bearing locking, with setscrew (If equipped)

3шт.

37

581469R1

FLANGE,Bearing

- bearing retainer

4шт.

38

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - round head square neck, 3/8 NC x 1 inch

4шт.

39

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

1шт.

FOOTNOTE

1шт.

Motor Mount Bracket is no longer welded to this part. This part can still be obtain from the supplier on a manual order placed thru Marv Hood. Dealer 6265230-A ordered P/N on PSO number 2965485 and received updated part w/o motor MTG Bracket. Dealer's customer removed old bracket and welded to a new one.

1шт.

40

487860R1

SPROCKET ASSY.

SPROCKET - drive, 28 tooth

1шт.

41

79837C1

BRACKET

- bearing spacer

1шт.

42

581306R1

KEY,5/16" Sq x 1 1/4", Par

2шт.

43

542710R2

HANDLE

- clutch

1шт.

44

488448R1

GRIP

- plastic

1шт.

45

79830C1

AUGER

1шт.

46

57307C1

CLUTCH

1шт.

47

57305C1

PIN

- clevis

2шт.

48

32-1016

COTTER PIN

PIN - cotter, 5/32 x 1 inch

2шт.

49

492100R1

CLUTCH

- sliding

1шт.

50

488444R1

SPRING

- clutch

1шт.

51

487923R1

WASHER

- flat, 1-1/8 x 1-5/8 inch x 12 GA

3шт.

52

59128C91

BEARING ASSY,28.57mm ID

- pillow block

1шт.

53

412-824

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1 1/2", Gr 2

BOLT - round head square neck, 1/2 NC x 1-1/2 inch

2шт.

54

145748C1

SPACER

WASHER - flat, square, 1-1/2 inch

1шт.

54

75962C1

BAR

SPACER - flat, square, 1-3/4 inch

1шт.

54

75961C1

BAR

SPACER - flat, square, 1-3/4 inch

1шт.

55

495-11053

WASHER,1/2", SAE

Hardened (17/32" x 1-1/16" x 9/64") 1/2", SAE

2шт.

56

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

57

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

58

488620R1

SPROCKET ASSY.

SPROCKET - 24 tooth

1шт.

59

REF

INSTRUCTION

CHAIN - (Use 61 links from roll 1790D, 1 connecting link 1301D and 1 offset link 1303D)

1шт.

59a

1301D

CHAIN LINK

LINK - chain, connecting (not shown)

1шт.

59b

1303D

LINK

- offset (not shown)

1шт.

1790D

CHAIN (AG)

CHAIN - bulk, 10 foot roll

1шт.

60

79889C1

FORK

YOKE - clutch rod

1шт.

61

359105R1

SPACER,3/8" X-Strng Pipe x 1/2"

- pipe, 3/8 x 1/2 inch

1шт.

62

75964C1

SPACER

- 7/8 inch

1шт.

63

412-620

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1 1/4", Gr 2

BOLT - round head square neck, 3/8 NC x 1-1/4 inch

1шт.

64

128366C1

LOCK NUT

- hex lock, 3/8 inch NC

1шт.

65

79831C1

SHAFT

- auger drive

1шт.

454319R1

RING

- retaining (If equipped)

1шт.

66

28407R1

KEY - square parallel, 5/16 x 3-5/8 inch

1шт.

67

619720R1

KEY,5/16" Sq x 1 1/8", Par

- square parallel, 5/16 x 1-1/8 inch

2шт.

68

487922R1

WASHER

- 1-1/8 x 1-5/8 inch x 10 GA

2шт.

69

487873R1

GEAR

- bevel, 14 tooth

2шт.

70

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

1шт.

71

495-81145

WASHER,13/32" x 1 3/4" x .120"

- flat, 13/32 x 1-3/4 x 7/64 inch

1шт.

72

492-11038

LOCK WASHER,3/8"

1шт.

73

1265797C1

SEALING STRIP

- seal

1шт.

74

565631R1

BEARING CAP,2.441" ID x 4.4375" OD x 0.34375"

- bearing, 3 hole

4шт.

75

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - round head square neck, 3/8 NC x 1 inch

6шт.

76

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

6шт.

1790D

CHAIN (AG)

CHAIN - bulk, 10 foot roll

1шт.
