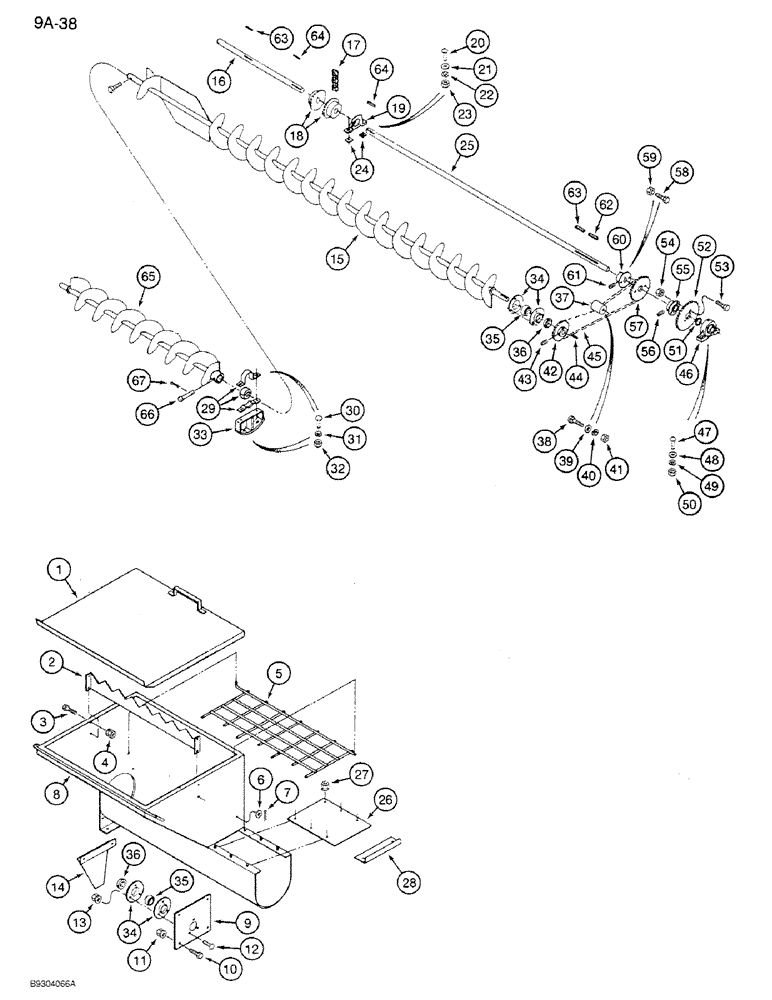

Запчасти Case IH 1350 (9A-038) - HOPPER AND DRIVE, 1350 MACHINES (09) - CHASSIS ATTACHMENTS

1

79834C1

LID

- hopper, with decal

1шт.

2

79846C1

BLADE

CUTTER - sack

1шт.

3

413-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

- hex, 5/16 NC x 5/8 inch

4шт.

4

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

4шт.

5

79847C1

GRATE

1шт.

6

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

1шт.

7

32-616

COTTER PIN,3/32" x 1"

Pin, Split (Cotter), 3/32" x 1"

1шт.

8

79785C1

HOPPER

- supplement

1шт.

9

79845C1

PLATE

- hole cover

1шт.

10

413-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

- hex, 5/16 NC x 5/8 inch

4шт.

11

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

4шт.

12

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - round head square neck, 3/8 NC x 1 inch

3шт.

13

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

3шт.

14

79753C1

SHIELD

- end bearing

1шт.

15

1281000C1

AUGER

-, Serial Range: mill-mixer

1шт.

16

79770C1

SHAFT

- gear box

1шт.

17

REF

INSTRUCTION

CHAIN - (Use 13 links from bulk chain roll 1355D and 1 connecting link 569206R91) see below

1шт.

17

569206R91

CHAIN LINK

LINK - connecting

1шт.

18

79922C1

SPROCKET ASSY.

SPROCKET - 14 tooth

2шт.

19

542727R91

BEARING CARRIER

- pillow block

1шт.

20

434-824

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

BOLT - round head square neck, 1/2 NC x 1-1/2 inch

2шт.

21

495-11053

WASHER,1/2", SAE

Hardened (17/32" x 1-1/16" x 9/64") 1/2", SAE

2шт.

22

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

23

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

24

145748C1

SPACER

- flat, 1-3/4 inch square x 18 gauge

2шт.

24

75962C1

BAR

SPACER - flat, 1-3/4 inch square x 1/16 ( replaced 75926C1 )

2шт.

24

75961C1

BAR

SPACER - flat, 1-3/4 inch square x 1/8

2шт.

25

79772C1

SHAFT

- mixer drive

1шт.

26

79786C1

COVER

- auger

1шт.

27

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

6шт.

28

79787C1

ANGLE

- trough supplement (If equipped)

1шт.

28

79836C1

ANGLE

- trough mill to tank (If equipped)

1шт.

29

79879C91

BEARING CARRIER

- pillow block

1шт.

30

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - round head square neck, 3/8 NC x 1 inch

4шт.

31

492-11038

LOCK WASHER,3/8"

4шт.

32

425-106

NUT,3/8"-16, Cl 5

4шт.

33

79788C1

BRACKET

- bearing holder

1шт.

1355D

CHAIN (AG)

CHAIN - bulk roll

1шт.

34

565631R1

BEARING CAP,2.441" ID x 4.4375" OD x 0.34375"

- bearing 3 hole

4шт.

35

487919R91

BEARING

- ball

2шт.

36

487920R91

COLLAR

- bearing locking, with setscrew (If equipped)

2шт.

37

56625C1

BLOCK

- chain tightener

1шт.

38

11-632

BOLT,Short NK, 3/8"-16 x 2", G2

- round head square neck, 3/8 NC x 2 inch

1шт.

39

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

1шт.

40

492-11038

LOCK WASHER,3/8"

1шт.

41

425-106

NUT,3/8"-16, Cl 5

1шт.

42

488620R1

SPROCKET ASSY.

SPROCKET - 24 tooth

1шт.

43

483-1315

SET SCREW,Hex Soc, 5/16"-18 x 5/16"

SCREW - hex socket, 5/16 NC x 5/16 inch

1шт.

44

619720R1

KEY,5/16" Sq x 1 1/8", Par

- square parallel, 5/16 x 1-1/8 inch

1шт.

45

NSS

NOT SOLD SEPARAT

CHAIN - (Use 59 links from bulk chain roll marked 1790D, 1 connecting link 1301D and 1 offset link 1303D) see below

1шт.

45

1301D

CHAIN LINK

LINK - chain, connecting

1шт.

45

1303D

LINK

- chain, offset

1шт.

46

542726R91

BEARING CARRIER

BEARING - pillow block

1шт.

47

433-828

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 3/4", Gr 5

BOLT - round head square neck, 1/2 NC x 1-3/4 inch

2шт.

48

495-11053

WASHER,1/2", SAE

Hardened (17/32" x 1-1/16" x 9/64") 1/2", SAE

2шт.

49

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

50

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

51

665071R1

SNAP RING,#200, Ext

Ring, Snap, #200, Ext

1шт.

52

79757C1

SPROCKET ASSY.

SPROCKET - 36 tooth

1шт.

53

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- hex, 5/16 NC x 1-1/4 inch

2шт.

54

9413994

LOCK NUT,5/16"-18, GC

NUT- lock, 5/16 inch (Grade 8)

2шт.

55

79756C1

HUB

- shear, with snap ring groove

1шт.

56

483-1315

SET SCREW,Hex Soc, 5/16"-18 x 5/16"

SCREW - set, hex socket, 5/16 NC x 5/16 inch

2шт.

57

541345R2

SPROCKET ASSY.

SPROCKET - 28 tooth

2шт.

58

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex, 1/4 NC x 3/4 inch

2шт.

59

231-4144

NUT,1/4"-20, GB

NUT - hex lock, 1/4 inch NC

2шт.

60

487848R1

HUB

- shear

2шт.

61

483-1315

SET SCREW,Hex Soc, 5/16"-18 x 5/16"

SCREW - set, hex socket, 5/16 NC x 5/16 inch

2шт.

62

192

KEY,5/16" Sq x 1 5/8", Par

- square parallel, 5/16 x 1-5/8 inch

1шт.

63

581306R1

KEY,5/16" Sq x 1 1/4", Par

2шт.

65

1281001C1

AUGER

-, Serial Range: concentrate-tank

1шт.

66

21006R1

CLEVIS PIN,3/8" x 2.406"

PIN - clevis, 3/8 x 2-13/32 inch

1шт.

67

432-1016

COTTER PIN,5/32" x 1"

5/32" x 1"

1шт.

179D

CHAIN - bulk roll

1шт.
