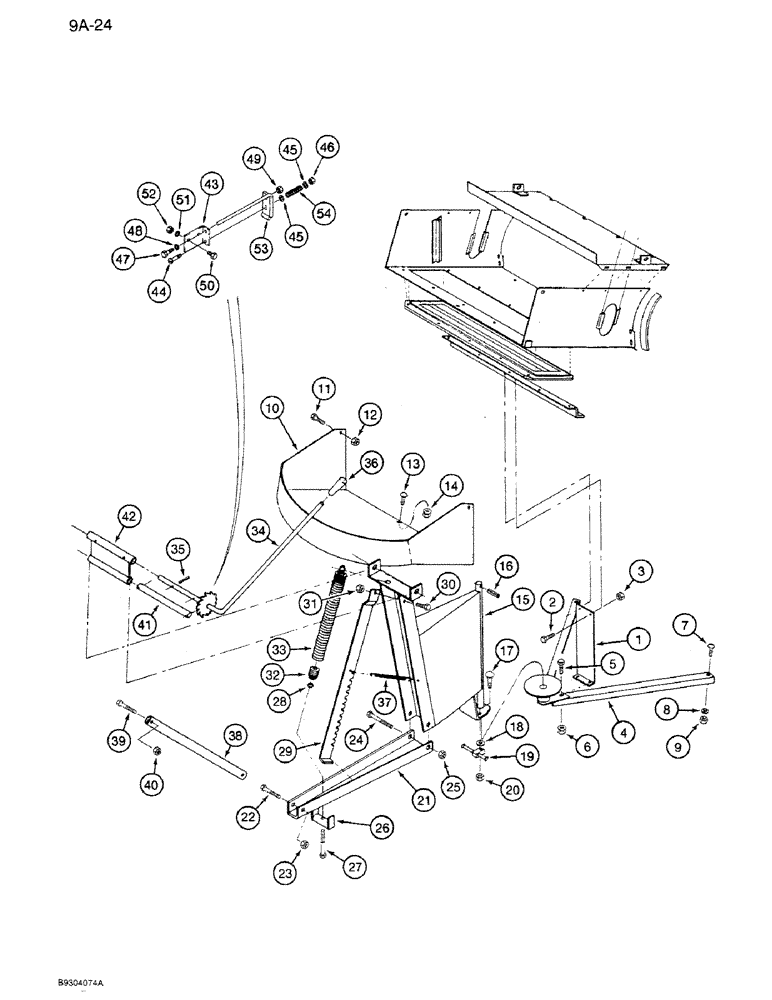

Запчасти Case IH 1350 (9A-024) - HAMMERMILL THROAT SUPPORT AND RATCHET, 1350 MACHINES (09) - CHASSIS ATTACHMENTS

1

79802C1

STRAP

- spring assists

1шт.

2

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

3

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- lock, 3/8 inch NC

2шт.

4

79896C1

SUPPORT

- bottom swivel

1шт.

5

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

2шт.

6

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

2шт.

7

434-820

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/4", Gr 5

BOLT - round head square neck, 1/2 NC x 1-1/4 inch

2шт.

8

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

9

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

10

79862C1

HOPPER

- mill

1шт.

11

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

12

128366C1

LOCK NUT

- hex lock, 3/8 inch NC

2шт.

13

434-510

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 5/8", Gr 5

BOLT - round head square neck, 5/16 NC x 5/8 inch

1шт.

14

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

1шт.

15

79855C1

SUPPORT

- swivel

1шт.

16

441013R1

LOCK PIN,1/4" x 2 1/2", Slotted

Pin, 1/4" x 2 1/2", Slotted

1шт.

17

434-624

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/2", Gr 5

BOLT - round head square neck, 3/8 NC x 1-1/2 inch

1шт.

18

495-81145

WASHER,13/32" x 1 3/4" x .120"

- flat, 13/32 x 1-3/4 x 7/64 inch

1шт.

19

145823C2

HANDLE

- brake

1шт.

20

128366C1

LOCK NUT

- hex lock, 3/8 inch NC

1шт.

21

79803C1

CHANNEL

- lower ratchet

1шт.

22

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

- hex, 1/2 NC x 2-1/2 inch

1шт.

23

474848R1

LOCK NUT,1/2"-13, GB

NUT - hex lock, 1/2 inch NC

1шт.

24

413-880

BOLT,Hex, 1/2" - 13 x 5", Gr 5

- hex, 1/2 NC x 5 inch

1шт.

25

474848R1

LOCK NUT,1/2"-13, GB

NUT - hex lock, 1/2 inch NC

1шт.

26

79806C1

PIVOT

PIN - pivot

1шт.

27

485351R1

BOLT,Hex, 1/2" - 13 x 5", Full Thd

- hex, 1/2 NC x 5 inch

1шт.

28

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1шт.

29

79804C1

BAR

- ratchet spring assist

1шт.

30

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

1шт.

31

128366C1

LOCK NUT

- hex lock, 3/8 inch NC

1шт.

32

76032C1

SPRING NUT

- spring retaining

1шт.

33

76033C1

SPRING

- extension

1шт.

34

145838C1

LEVER

AND RATCHET ASSEMBLY

1шт.

35

576485R1

LOCK PIN,1/4" x 1 1/4", Slotted

1шт.

36

145839C1

HANDLE

GRIP - handle

1шт.

37

64669C1

SPRING

- extension

1шт.

38

76031C1

LINK

- vertical spring assist

1шт.

39

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

- hex, 1/2 NC x 2-1/2 inch

1шт.

40

474848R1

LOCK NUT,1/2"-13, GB

NUT - hex lock, 1/2 inch NC

1шт.

41

475663R1

PIN

ROD - hinge

1шт.

42

145835C1

BRACKET

ASSEMBLY - extension

1шт.

43

145836C1

HOLDER

- stop

1шт.

44

440-12524

SCREW - machine, pan head, 1/4 NC x 1-1/2 inch

1шт.

45

495-11028

WASHER,1/4", SAE

flat, hardened 1/4", SAE

2шт.

46

231-4144

NUT,1/4"-20, GB

NUT - hex lock, 1/4 inch NC (Grade 8)

1шт.

47

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- hex, 5/16 NC x 1-1/4 inch

1шт.

48

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

49

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

1шт.

50

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

2шт.

51

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

52

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

53

145837C1

STOP

ASSEMBLY

1шт.

54

61080C1

SPRING

- compression

1шт.
