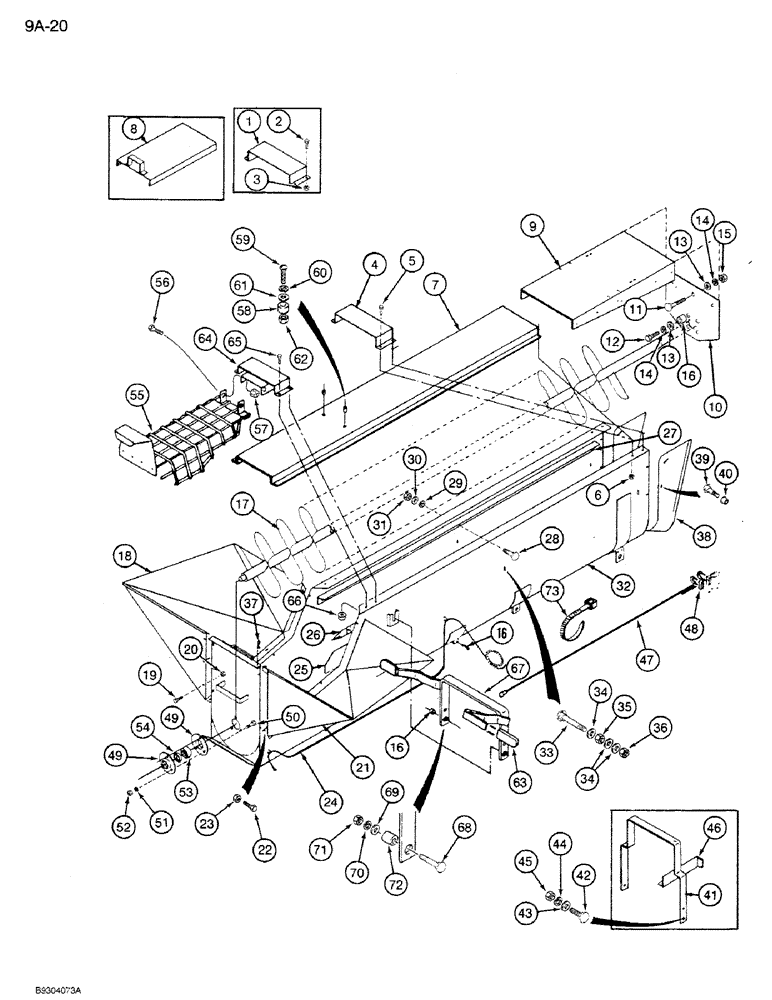

Запчасти Case IH 1350 (9A-020) - AUGER FEEDER, 1350 MACHINES (09) - CHASSIS ATTACHMENTS

1

79850C1

BRACKET

- auger feeder, lower (If equipped)

1шт.

2

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

4шт.

3

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

4шт.

4

79857C1

BRACKET

- auger feeder, upper

1шт.

5

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

4шт.

6

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

4шт.

7

79883C1

SHIELD

- auger feeder, with product graphic

1шт.

8

79849C1

SHIELD

- sliding (If equipped)

1шт.

9

79859C1

CHANNEL

- top hydraulic

1шт.

10

79858C1

PLATE

- hydraulic motor

1шт.

11

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - round head square neck, 3/8 NC x 1 inch

3шт.

12

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

13

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

7шт.

14

492-11038

LOCK WASHER,3/8"

7шт.

15

425-106

NUT,3/8"-16, Cl 5

3шт.

16

542716R1

SPACER

6шт.

17

79851C1

AUGER

1шт.

18

475662R1

PANEL

HOPPER - left, bottom (Machines built prior to February 1984)

1шт.

18

1281119C1

HOPPER

- left, bottom (Machines built February 1984 and after)

1шт.

19

135270

SERRATED SCREW,5/16" - 18 x 3/4"

BOLT - hex, 5/16 NC x 3/4 inch

7шт.

20

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

7шт.

21

79865C1

HOPPER

- folding, with hinge (Machines built prior to February 1984)

1шт.

21

1281118C1

HOPPER

- folding, with hinge (Machines built February 1984 and after)

1шт.

22

135270

SERRATED SCREW,5/16" - 18 x 3/4"

BOLT - hex, 5/16 NC x 3/4 inch

4шт.

23

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

4шт.

24

NSS

NOT SOLD SEPARAT

ROPE - plastic, 3/8 x 102 inch

1шт.

25

76004C1

SEALING STRIP

SEAL - rubber

1шт.

26

79852C1

ANGLE

- right side

1шт.

27

79853C1

ANGLE

- left side

1шт.

28

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G5, Full Thd

3шт.

29

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

30

28588R1

WASHER

- flat, 11/32 x 11/16 x 3/64 inch

3шт.

31

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

3шт.

32

79866C1

HOUSING

- auger feeder

1шт.

33

433-520

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 1 1/4", Gr 5

BOLT - round head square neck, 5/16 NC x 1-1/4 inch

3шт.

34

28588R1

WASHER

- flat, 11/32 x 11/16 x 3/64 inch

6шт.

35

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

3шт.

36

9413994

LOCK NUT,5/16"-18, GC

NUT - lock, 5/16 inch, Grade 8

3шт.

37

545254R1

PIN

- cotter

2шт.

38

79860C1

SPOUT, DISCHARGE

SPOUT - auger feeder, down

1шт.

39

135270

SERRATED SCREW,5/16" - 18 x 3/4"

BOLT - hex, 5/16 NC x 3/4 inch

4шт.

40

9413994

LOCK NUT,5/16"-18, GC

NUT - lock, 5/16 inch, Grade 8

4шт.

41

79854C1

HANDLE

- auger feeder clutch (If equipped)

1шт.

42

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - round head square neck, 3/8 NC x 1 inch

2шт.

43

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

4шт.

44

492-11038

LOCK WASHER,3/8"

2шт.

45

425-106

NUT,3/8"-16, Cl 5

2шт.

46

145779C1

BRACKET

- lever stop (If equipped)

1шт.

47

79856C1

CABLE

- wire

1шт.

48

480472R1

CLIP

CLAMP - cable

2шт.

49

462360R1

FLANGED BEARING

- bearing

2шт.

50

434-516

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1", Gr 5

BOLT - round head square neck, 5/16 NC x 1 inch

3шт.

51

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

52

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

3шт.

53

475698R91

BALL BEARING,1" ID x 2.0472" OD x 0.844"

- ball

1шт.

54

455102R21

COLLAR

- locking, bearing, with setscrew

1шт.

55

1281310C1

GRATE

(If equipped)

1шт.

56

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

57

425-106

NUT,3/8"-16, Cl 5

- hex, flange lock, 3/8 inch NC

2шт.

57

425-106

NUT,3/8"-16, Cl 5

- hex, flange lock, 3/8 inch NC

2шт.

58

1281294C1

BUMPER

- rubber (If equipped)

2шт.

59

442-11012

SCREW,Cross Oval Hd, #10-24 x 3/4"

- machine, oval head Phillips, No. 10 NC x 3/4 inch

2шт.

61

495-31022

WASHER,#10

2шт.

60

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

61

495-31022

WASHER,#10

2шт.

62

224-11410

NUT - hex, No. 10

2шт.

63

488448R1

GRIP

(If equipped)

2шт.

64

1281308C1

CHANNEL

BRACKET - auger feed, lower (If equipped)

1шт.

65

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

4шт.

66

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

4шт.

67

1281309C1

HANDLE

- clutch (If equipped)

1шт.

68

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - round head square neck, 3/8 NC x 1 inch

2шт.

69

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

2шт.

70

492-11038

LOCK WASHER,3/8"

2шт.

71

425-106

NUT,3/8"-16, Cl 5

2шт.

72

542716R1

SPACER

2шт.

73

58556C1

CABLE TIE

STRAP - retaining, 14 inch

2шт.
