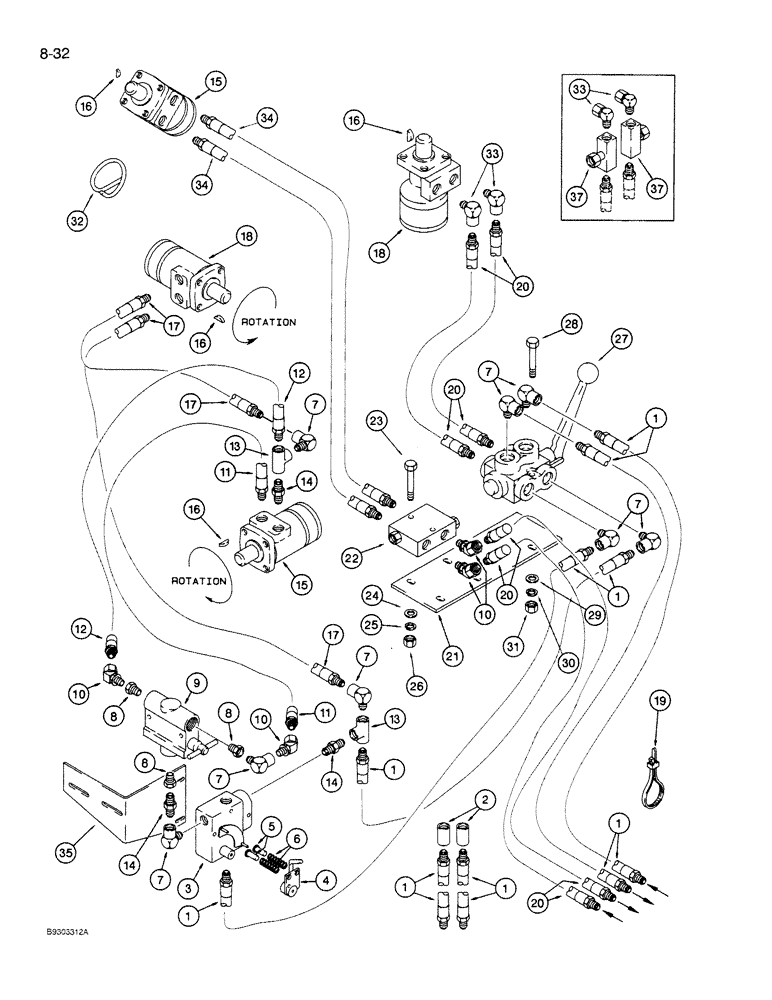

Запчасти Case IH 1350 (8-32) - HYDRAULIC SYSTEM, 1350 TRACTOR SOURCED HYDRAULICS (07) - HYDRAULICS

1

79810C1

HOSE ASSY.

HOSE ASSEMBLY - hydraulic, 1/2 x 120 inch

4шт.

2

217-1103

HYD CONNECTOR,1/2" - 14 NPT x 1/2" - 14 NPT

COUPLING - pipe, 1/2 x 1-1/8 inch

4шт.

3

145776C2

VALVE

- flow control

1шт.

4

145778C2

LEVER

ASSEMBLY - valve

1шт.

5

103496

CLEVIS PIN,3/8" x 1.060"

PIN - clevis, 3/8 x 1 inch

1шт.

6

61080C1

SPRING

1шт.

7

217-1019

ELBOW,1/2" - 14 Female x 1/2" - 14 Male

- 1/2 inch NF x 90 degree, pipe street

8шт.

8

217-45

REDUCER,3/4" - 14 NPTF x 1/2" - 18 Fem NPTF

adapter 3/4"-14 NPTF x 1/2"-18 Fem NPTF

3шт.

9

79848C1

VALVE

- roll feed

1шт.

10

217-1086

45 ELBOW,45 Degree, 1/2"-14 Female x 1/2"-14 Male

- 1/2 inch x 45 degree, pipe street

4шт.

11

79811C1

HOSE

ASSEMBLY - hydraulic 1/2 x 24 inch

1шт.

12

57968C1

HYDRAULIC HOSE,12.70 mm ID x 406.40 mm

12.70 mm ID x 406.40 mm

1шт.

13

217-1163

TEE,1/2"-14 Female

COUPLING - tee, 1/2 inch

2шт.

14

217-1072

HYD CONNECTOR,1/2" - 14 NPTF

ADAPTER - male, 1/2 inch NPT

2шт.

15

485963R91

MOTOR, ELECTRIC

MOTOR ASSEMBLY - hydraulic (see kits listed below)

2шт.

16

124553

WOODRUFF KEY,#15, 1/4" x 1", HT

4шт.

17

72105C1

HYDRAULIC HOSE,0.50" ID x 55.00", SAE 100R1

HOSE ASSEMBLY - hydraulic, 1/2 x 55 inch, if use (Replaces 61 inch hose used in production)

2шт.

17

955494R91

HOSE ASSY.

HOSE ASSEMBLY - hydraulic, 1/2 x 30 inch, use with 72105C1

2шт.

18

64964C1

MOTOR

ASSEMBLY - hydraulic (see kits listed below)

2шт.

19

306132C1

CABLE TIE,14.5" L

STRAP - retaining, 14 inch long

10шт.

20

407445R1

HOSE

ASSEMBLY - hydraulic, 1/2 inch x 144 inch, use with 218-903 (Replaces 144 inch hose used in production)

4шт.

20

218-903

HYD CONNECTOR,1/2" NPT x 1/2"

ADAPTER - hose, use with 407445R1

8шт.

21

79800C1

BRACKET

- hydraulic valve

1шт.

1980819C1

SEAL KIT

- seal, for Char-Lynn Eaton H series hydraulic motors used with machines prior to PIN 605

1шт.

1980820C1

SEAL KIT

- seal, for Orbmark HD series hydraulic motors used with machines PIN 606 Through 655

1шт.

1980818C1

SEAL KIT

- seal, for Ross Mac and MAG series hydraulic motors used with machines PIN 656 Through 681

1шт.

1980817C1

SEAL KIT

KIT - seal, for Ross MG series hydraulic motors used with machines PIN 682 And After (this kit also services all machines with a PIN number having a CCD prefix)

1шт.

22

79882C91

VALVE

- dual relief

1шт.

23

424-540

BOLT - 5/16 x 2-1/2 inch, type 1

2шт.

24

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

2шт.

25

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

26

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

27

79881C91

VALVE

- double selector

1шт.

1980816C1

KIT

- valve handle

1шт.

28

424-548

BOLT - 5/16 x 3 inch, type 1

2шт.

29

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

2шт.

30

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

30

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

31

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

32

459703R1

SUPPORT - hydraulic hose

2шт.

33

1995574C1

FITTING

ELBOW - 1/2 inch x 90 degree, street

2шт.

34

407446R1

HOSE

ASSEMBLY - hydraulic, 1/2 x 164 inch, use with 218-903 (Replaces 164 inch hose used in production)

2шт.

34

218-903

HYD CONNECTOR,1/2" NPT x 1/2"

ADAPTER - hose, use with 407446R1

4шт.

35

1281164C1

BRACKET

- valve (Machines with hydraulic auger feed)

1шт.

36

1281168C1

BRACKET

- valve (Machines without hydraulic auger feed)

1шт.

34

407446R1

HOSE

ASSEMBLY - hydraulic, 1/2 x 164 inch, use with 218-903 (Replaces 164 inch hose used in production)

2шт.

34

218-903

HYD CONNECTOR,1/2" NPT x 1/2"

ADAPTER - hose, use with 407446R1

4шт.

35

1281164C1

BRACKET

- valve (Machines with hydraulic auger feed)

1шт.

36

1281168C1

BRACKET

- valve (Machines without hydraulic auger feed)

1шт.

37

1547172C1

VALVE

- flow control, swing control (if equipped)

2шт.

217-1008

ADAPTER,3/8" - 18 Male NPTF x 1/2" - 14 Female NPTF

- 1/2 inch male x 3/8 inch female, swing control (if equipped)

2шт.

221-89

REDUCER,Hex, 1/2" x 3/8" NPT

REDUCING BUSHING - 1/2 inch male x 3/8 inch female, swing control (if equipped)

2шт.
