(8-28) - HYDRAULIC SYSTEM, 1350 SELF CONTAINED HYDRAULICS

Запчасти Case IH 1350 (8-28) - HYDRAULIC SYSTEM, 1350 SELF CONTAINED HYDRAULICS (07) - HYDRAULICS

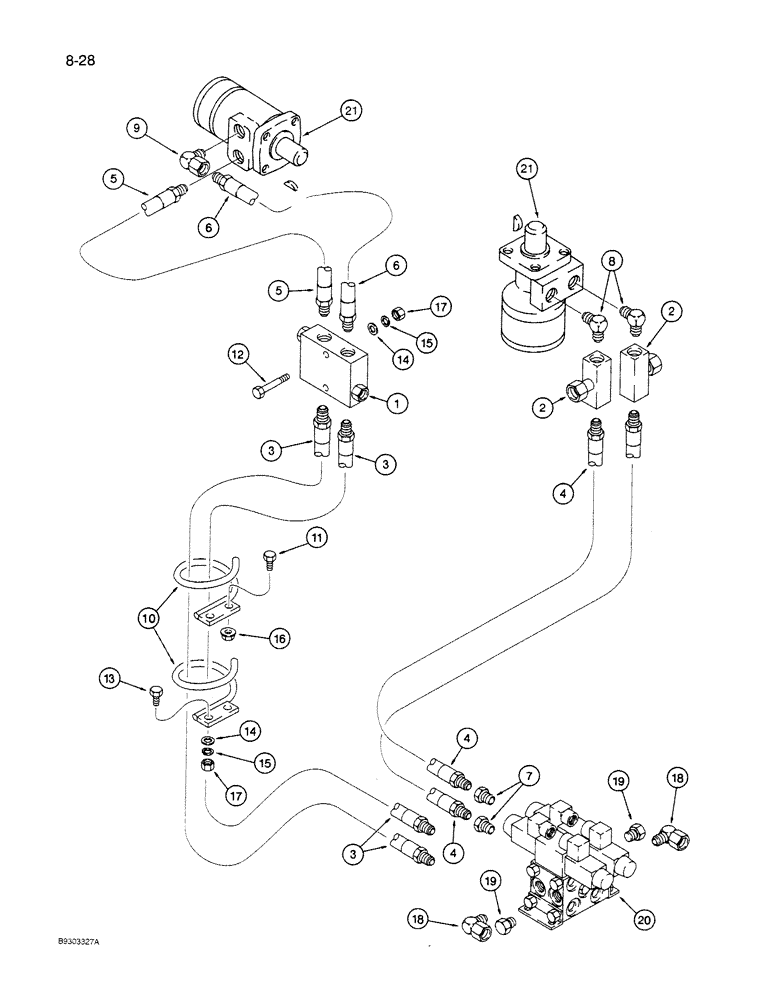

Схема запчастей Case IH 1350 - (8-28) - HYDRAULIC SYSTEM, 1350 SELF CONTAINED HYDRAULICS (07) - HYDRAULICS
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

79882C91

VALVE

- relief, dual

1шт.

2

1547172C1

VALVE

- control

2шт.

3

79810C1

HOSE ASSY.

HOSE ASSEMBLY - hydraulic, 1/2 x 120 inch

2шт.

4

1547345C1

HYDRAULIC HOSE,0.38" ID x 72.00", SAE 100R2

2шт.

5

1547779C1

HYDRAULIC HOSE,0.50" ID x 12.00", SAE 100R2

1шт.

6

1547778C1

HYDRAULIC HOSE,0.50" ID x 11.00", SAE 100R2

1шт.

7

218-5099

FITTING

ADAPTER - straight, 3/4-16 o-ring boss x 1/2 inch female PT

2шт.

8

1547352C1

FITTING

ELBOW - 90 degree, 1/2 x 3/8 inch NPT

2шт.

9

217-1086

45 ELBOW,45 Degree, 1/2"-14 Female x 1/2"-14 Male

- street, 45 degree, 1/2 inch PT x female PT

1шт.

10

1281277C1

HOLDER

- hose

2шт.

11

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 x 1 inch

5шт.

12

413-432

BOLT,Hex, 1/4" - 20 x 2", Gr 5

4шт.

13

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

- hex, 1/4 NC x 1 inch

1шт.

14

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

9шт.

15

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

9шт.

16

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

1шт.

17

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

7шт.

18

218-5454

ELBOW,90 Degree, 7/8"-14 ORB x 1/2" NPT Fem

- 7/8-14 o-ring boss x 1/2 inch female PT

2шт.

19

218-5158

PLUG,Hex Hd, 1 1/16"-12 ORB

2шт.

20

1547354C1

VALVE

ASSEMBLY - 3 way, 4 position

1шт.

21

64964C1

MOTOR

ASSEMBLY - hydraulic (see kit listed below)

2шт.

1980819C1

SEAL KIT

- seal, for Char-Lynn Eaton H series hydraulic motors used with machines prior to PIN 605

1шт.

1980820C1

SEAL KIT

- seal, for Orbmark HD series hydraulic motors used with machines PIN 606 Through 655

1шт.

1980818C1

SEAL KIT

- seal, for Ross Mac and MAG series hydraulic motors used with machines PIN 656 Through 681

1шт.

1980817C1

SEAL KIT

KIT - seal, for Ross MG series hydraulic motors used with machines PIN 682 And After (this kit also services all machines with a PIN number having a CCD prefix)

1шт.
