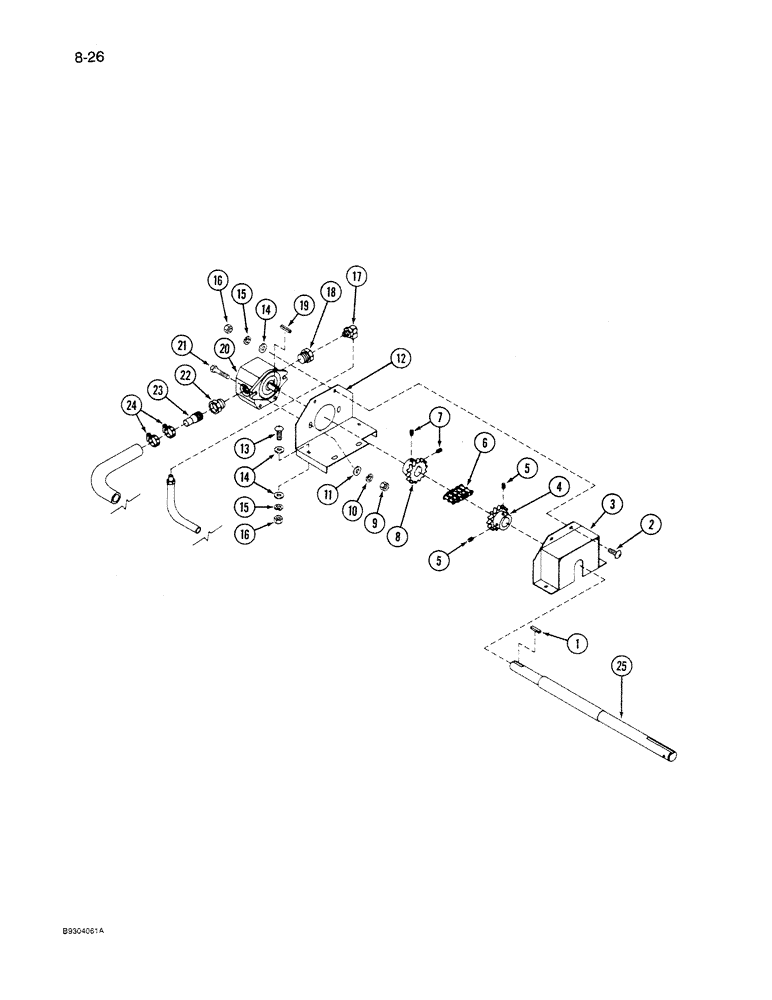

Запчасти Case IH 1350 (8-26) - HYDRAULIC PUMP AND COUPLING, 1350 SELF CONTAINED HYDRAULICS (07) - HYDRAULICS

1

Q63

KEY,3/8" Sq x 1 1/2", Par

- parallel, 3/8 X 1-1/2 inch

1шт.

2

434-516

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1", Gr 5

BOLT - round head square neck, 5/16 NC x 1 inch

4шт.

3

1547341C1

SHIELD

- coupling

1шт.

4

1547342C1

SPROCKET ASSY.

SPROCKET - jackshaft

1шт.

5

483-13816

SET SCREW,Hex Soc, 3/8"-16 x 1"

SCREW - set, headless hex socket, 3/8 NC x 1 inch

1шт.

6

REF

INSTRUCTION

COUPLING - chain (use 13 links from bulk chain 28363R1 and one connector link 28361R1, see below)

1шт.

6

28361R1

LINK

- connecting, No. 60 double chain

1шт.

7

483-1318

SET SCREW,Hex Soc, 5/16"-18 x 1/2"

SCREW - set, headless slotted, 5/16 NC x 1/2 inch

2шт.

8

1547343C1

SPROCKET ASSY.

SPROCKET - pump

1шт.

9

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

6шт.

10

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

6шт.

11

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 5/64") 1/2", SAE

10шт.

12

1547340C1

BRACKET

- pump mounting

1шт.

13

424-516

BOLT,Hex, 5/16" - 18 x 1", Gr 2

- 5/16 NC x 1 inch

2шт.

14

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

6шт.

15

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

16

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

8шт.

17

217-1019

ELBOW,1/2" - 14 Female x 1/2" - 14 Male

- street, 90 degree, 1/2 inch PT x female PT

1шт.

18

1547350C1

FITTING

ADAPTER - 1/2 inch NPT

1шт.

19

Y24430

KEY,1/4" Sq x 1 1/2", Par

- parallel, 1/4 x 1/4 x 1.5 inch

1шт.

20

1547347C1

PUMP

- hydraulic, 500/540 rpm

1шт.

20

1547380C1

PUMP

- hydraulic, 1000 rpm

1шт.

21

434-824

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

BOLT - round head square neck, 1/2 NC x 1-1/2 inch

2шт.

22

1547351C1

FITTING

ADAPTER - 1 inch NPT (Used with 1547347C1 pump)

1шт.

22

1547381C1

FITTING

ADAPTER - 1 inch NPT (Used with 1547380 pump)

1шт.

23

217-156

FITTING,1" Hose Barb x 1" Male NPTF

- stem, straight, 1 inch hose ID x PT

2шт.

24

311164C91

HOSE CLAMP,#20, 0.81/1.75 Type F Worm

CLAMP - hose

4шт.

25

1547391C1

JACKSHAFT

- mill

1шт.

28363R1

CHAIN (AG)

CHAIN - bulk, 60 x 48, 10' roll

1шт.
