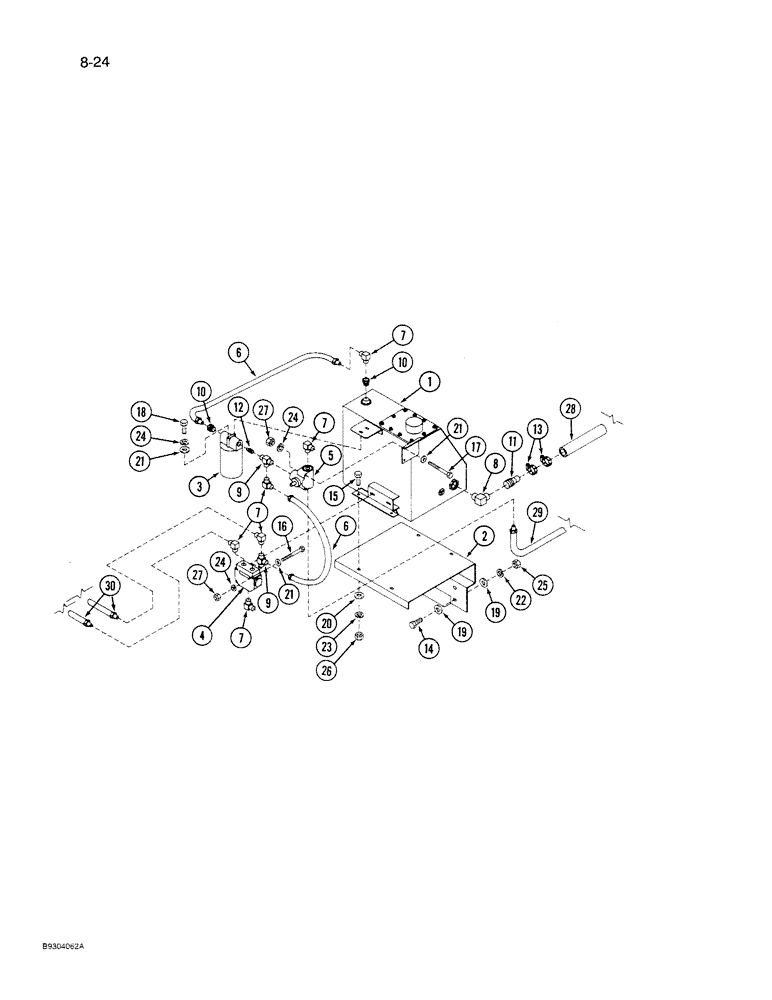

Запчасти Case IH 1350 (8-24) - HYDRAULIC RESERVOIR SYSTEM, 1350 SELF CONTAINED HYDRAULICS (07) - HYDRAULICS

1

1547344C1

RESERVOIR

TANK - hydraulic reservoir (See page 8-23)

1шт.

2

1547355C1

SUPPORT

BRACKET - reservoir mounting

1шт.

3

1547367C1

FILTER

ASSEMBLY - return system

1шт.

3

1547368C1

ELEMENT

- filter

1шт.

4

1547349C1

VALVE

- flow divider

1шт.

5

1547348C1

VALVE

- relief

1шт.

6

79811C1

HOSE

ASSEMBLY - hydraulic, 1/2 x 24 inch

2шт.

7

217-1019

ELBOW,1/2" - 14 Female x 1/2" - 14 Male

- street, 90 degree, 1/2 inch PT x female PT

7шт.

8

217-1021

ELBOW,1" - 11-1/2 Female x 1" - 11-1/2 Male

- street, 90 degree, 1 inch PT x female PT

1шт.

9

217-1064

TEE,1/2" - 14 Female x 1/2" - 14 Male Run

- 1/2 inch female PT branch x female PT x PT

2шт.

10

221-93

REDUCER,Hex, 3/4" x 1/2" NPT

- pipe, 3/4 male x 1/2 inch female

2шт.

11

217-156

FITTING,1" Hose Barb x 1" Male NPTF

- stem, straight, 1 inch hose ID x PT

2шт.

12

217-1093

HYD CONNECTOR,3/4"-14 NPTF x 1/2"-14 NPTF

COUPLING - 1/2 to 3/4 inch

1шт.

13

311164C91

HOSE CLAMP,#20, 0.81/1.75 Type F Worm

CLAMP - hose

4шт.

14

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

4шт.

15

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

4шт.

16

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

- hex, 1/4 NC x 2-1/2 inch

2шт.

17

413-432

BOLT,Hex, 1/4" - 20 x 2", Gr 5

4шт.

18

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex, 1/4 NC x 3/4 inch

2шт.

19

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 5/64") 1/2", SAE

10шт.

20

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

4шт.

21

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

9шт.

22

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

6шт.

23

492-11038

LOCK WASHER,3/8"

4шт.

24

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

9шт.

25

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

6шт.

26

425-106

NUT,3/8"-16, Cl 5

4шт.

27

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

7шт.

28

1547359C1

HYDRAULIC HOSE,1.00" ID x 24.00", SAE 100R4-16

Cut from B91132 Bulk Hose, See Below 1.00" ID x 24.00", SAE 100R4-16

1шт.

29

366088R91

HOSE

ASSEMBLY - hydraulic, 1/2 x 61 inch

1шт.

30

1547353C1

HYDRAULIC HOSE,0.50" ID x 42.00"

0.50" ID x 42.00"

2шт.

B91132

HOSE

- bulk, 1" ID x 50' long, use to make item 28

1шт.
