(8-22) - HYDRAULIC RESERVOIR, 1350 SELF CONTAINED HYDRAULICS

Запчасти Case IH 1350 (8-22) - HYDRAULIC RESERVOIR, 1350 SELF CONTAINED HYDRAULICS (07) - HYDRAULICS

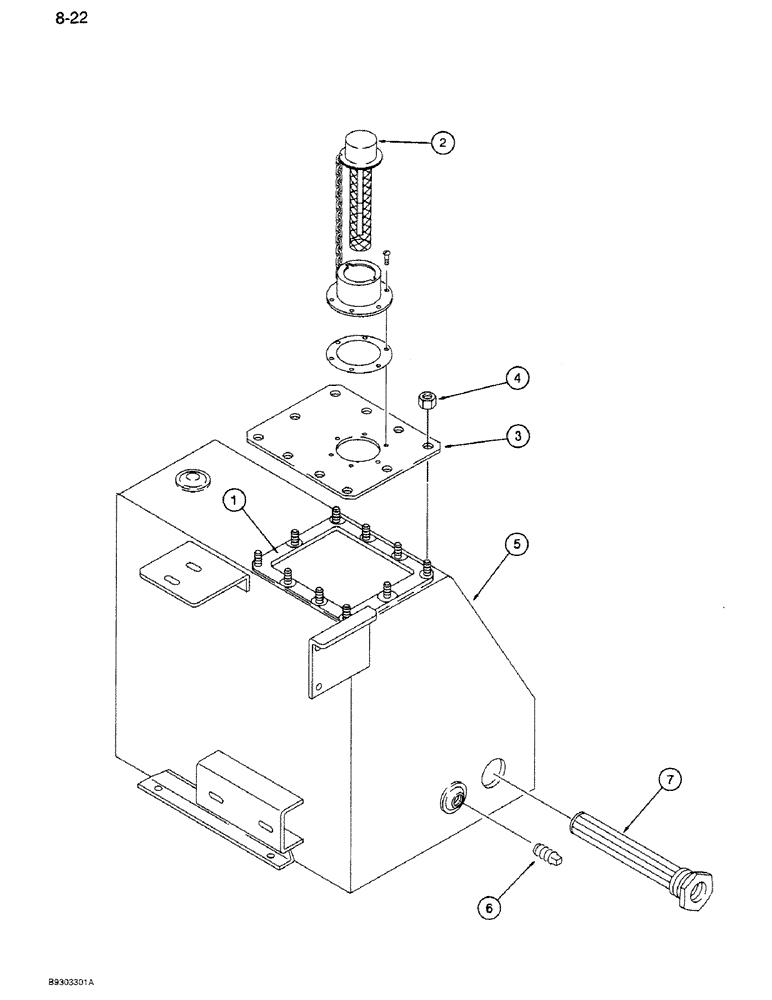

Схема запчастей Case IH 1350 - (8-22) - HYDRAULIC RESERVOIR, 1350 SELF CONTAINED HYDRAULICS (07) - HYDRAULICS
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

B17575

FLUID

SEALANT

1шт.

2

1547378C1

FILLER

ASSEMBLY - breather, hydraulic reservoir

1шт.

3

1547776C1

COVER

- hydraulic reservoir

1шт.

4

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

10шт.

5

1547344C1

RESERVOIR

TANK - hydraulic reservoir

1шт.

6

221-668

DRAIN PLUG,Sq Soc, 3/4" NPT

PLUG - square socket, 3/4 inch PT, magnetic

1шт.

7

1547379C1

STRAINER ASSY.

STRAINER - hydraulic reservoir

1шт.
