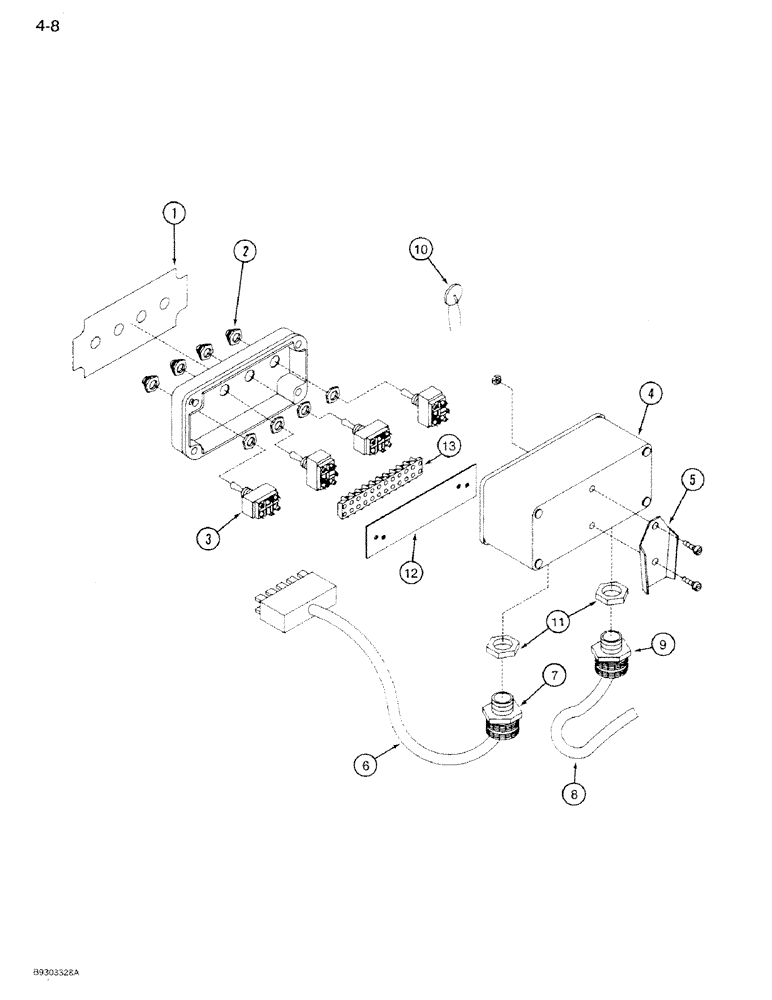

Запчасти Case IH 1350 (4-08) - GRINDER REMOTE CONTROL, 1350 SELF CONTAINED (06) - ELECTRICAL

REF

INSTRUCTION

CONTROL ASSEMBLY - grinder (Not serviced as assembly)

1шт.

1

REF

INSTRUCTION

DECAL - control box (See Section 9B)

1шт.

2

91973C1

SEAL

- switch

4шт.

3

91774C1

ASSEMBLY

SWITCH - toggle, momentary

4шт.

4

1547362C1

BOX

ENCLOSURE - grinder remote

1шт.

5

1547777C1

BRACKET

- mounting, includes mounting screws

1шт.

6

1547364C1

ELECTRICAL WIRE

CABLE - electrical (To Tractor Remote Control)

2шт.

7

1547365C1

SOCKET

- cable

1шт.

8

1547366C1

ELECTRICAL WIRE

CABLE - electrical (To Grinder)

1шт.

9

1547365C1

SOCKET

- cable

1шт.

10

1547774C1

RHEOSTAT

VARISTOR

6шт.

11

1547773C1

LOCK NUT

- conduit, 1/2 inch

2шт.

12

NSS

NOT SOLD SEPARAT

BACK PLATE

1шт.

13

NSS

NOT SOLD SEPARAT

TERMINAL STRIP

1шт.
