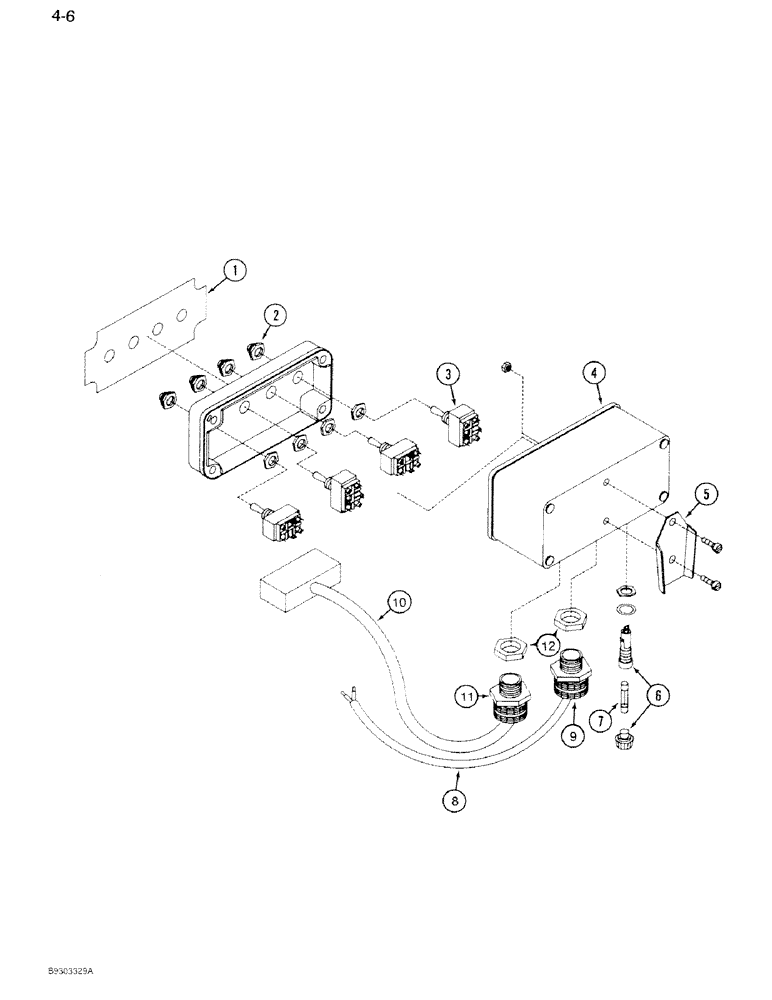

Запчасти Case IH 1350 (4-06) - TRACTOR REMOTE CONTROL, 1350 SELF CONTAINED (06) - ELECTRICAL

120211A1

CONTROL

ASSEMBLY - tractor remote

1шт.

1

REF

INSTRUCTION

DECAL - controls (See Section 9B)

1шт.

2

91973C1

SEAL

- swtich

4шт.

3

91774C1

ASSEMBLY

SWITCH - toggle, momentary

4шт.

4

1547360C1

BOX

ENCLOSURE - tractor remote

1шт.

5

1547777C1

BRACKET

- mounting, includes mounting screws

1шт.

6

NSS

NOT SOLD SEPARAT

HOLDER - fuse

1шт.

7

455844

FUSE,25 Amp, Type 3AG

- 20 ampere

1шт.

8

REF

INSTRUCTION

CABLE - electrical (To Battery), 14 gauge - 2 wire, obtain locally, 6' long

1шт.

9

1547365C1

SOCKET

- cable

1шт.

10

1547358C1

ELECTRICAL WIRE

CABLE - electrical (To Grinder)

1шт.

11

1547365C1

SOCKET

- cable

1шт.

12

1547773C1

LOCK NUT

- conduit, 1/2 inch

2шт.
