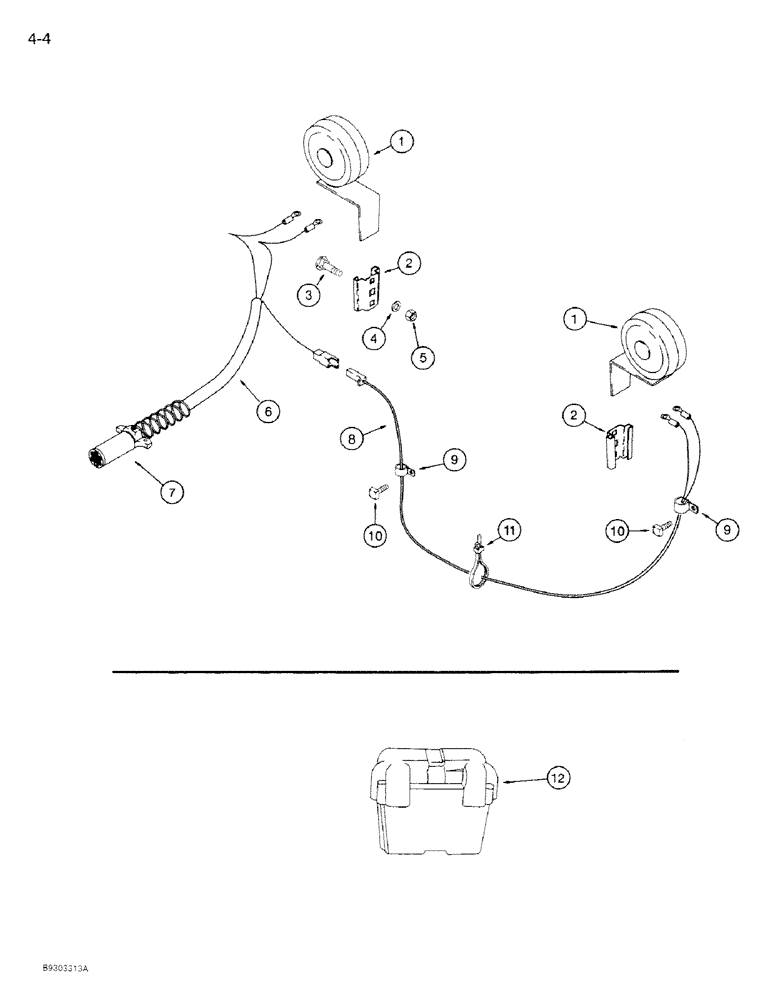

Запчасти Case IH 1350 (4-04) - FLASHING WARNING LIGHTS (06) - ELECTRICAL

1

121664C1

LIGHT

ASSEMBLY - flashing

2шт.

20010R1

BULB,C6, #1034A, 12.8V

LAMP - type C-6

2шт.

2

398976R1

BRACKET

- mounting, lamp

2шт.

3

433-520

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 1 1/4", Gr 5

BOLT - round head square neck, 5/16 NC x 1-1/4 inch

4шт.

4

495-21031

WASHER,1/4"

- flat, 3/8 x 7/8 x 1/16 inch

4шт.

5

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

4шт.

6

121662C1

HARNESS

ASSEMBLY - rear connector

1шт.

7

121646C1

TERMINAL CONNECTOR,Female

CONNECTOR ASSEMBLY - male, seven terminal

1шт.

8

121663C1

HARNESS

ASSEMBLY - light junction

1шт.

9

384557R1

CLIP

- harness

5шт.

10

102291

BOLT

- plain lag, 1/4 x 1-1/4 inch

5шт.

11

289862C1

CABLE TIE,3/16" x 7"

STRAP - tie, 7 inch

5шт.

12

KIT - battery box (See Note) order machine attachment (Includes case with cover, straps and mounting screws)

1шт.
