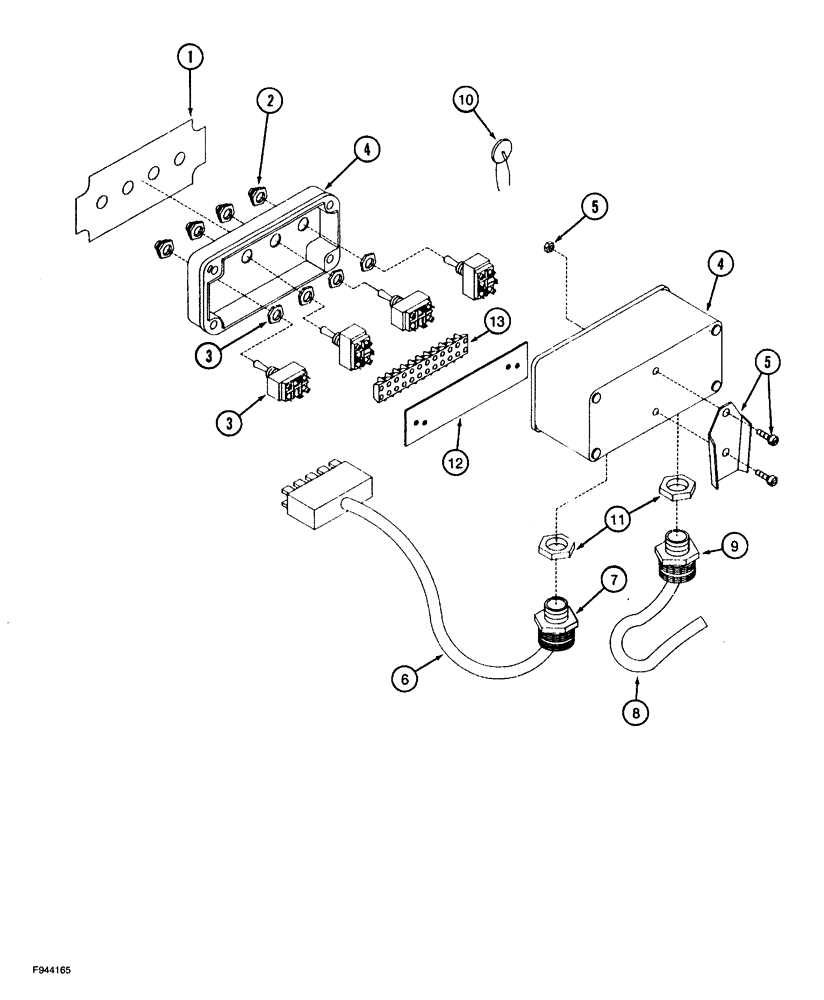

Запчасти Case IH 1260 (4-006) - GRINDER REMOTE CONTROL, SELF CONTAINED HYDRAULICS (06) - ELECTRICAL

1

1547361C1

DECAL

control pattern, tractor remote

1шт.

2

91973C1

SEAL

switch

4шт.

3

91774C1

ASSEMBLY

toggle, momentary, includes nut

4шт.

4

1547362C1

BOX

HOUSING orinder remote control

1шт.

5

1547777C1

BRACKET

mounting, includes mounting screws and nuts

1шт.

6

1547364C1

ELECTRICAL WIRE

WIRE HARNESS remote control, to tractor remote control

1шт.

7

1547357C1

CONNECTOR, ELEC

CONNECTOR remote control harness, strain relief

2шт.

8

1547366C1

ELECTRICAL WIRE

WIRE HARNESS grinder remote, Serial Range: control,-grinder

1шт.

9

1547357C1

CONNECTOR, ELEC

CONNECTOR remote control harness, strain relief

1шт.

10

1547774C1

RHEOSTAT

RESISTOR metal oxide vanstor

6шт.

11

1547773C1

LOCK NUT

hex, special, 1/2 inch

2шт.

12

NSS

NOT SOLD SEPARAT

PLATE back remote

1шт.

13

NSS

NOT SOLD SEPARAT

STRIP terminal remote

1шт.
