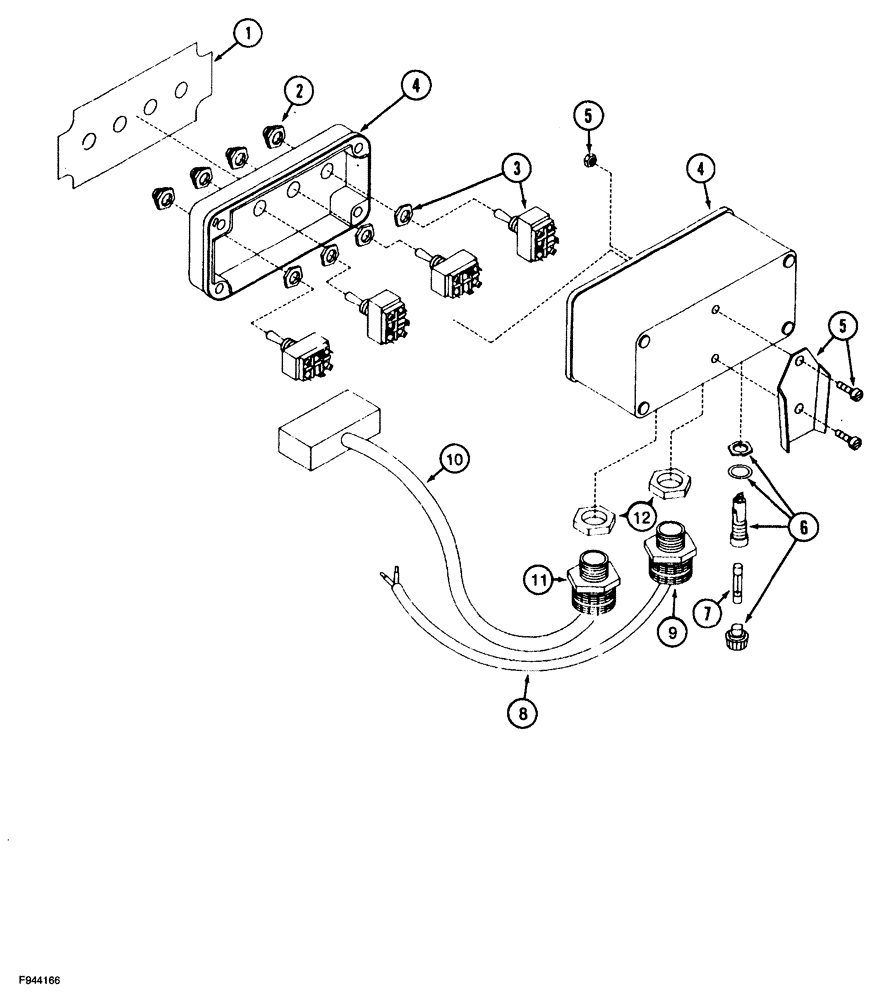

Запчасти Case IH 1260 (4-004) - TRACTOR REMOTE CONTROL, SELF CONTAINED HYDRAULICS (06) - ELECTRICAL

120211A1

CONTROL

ASSEMBLY, tractor remote

1шт.

1

1547361C1

DECAL

control pattern, tractor remote

1шт.

2

91973C1

SEAL

switch

4шт.

3

91774C1

ASSEMBLY

toggle, momentary, includes nut

4шт.

4

1547360C1

BOX

HOUSING tractor remote control

1шт.

5

1547777C1

BRACKET

mounting, includes mounting screws and nuts

1шт.

6

NSS

NOT SOLD SEPARAT

HOLDER fuse, includes hardware, purchase locally

1шт.

7

223-25

FUSE,25 Amp, Type 3AG

25 ampere

1шт.

8

REF

INSTRUCTION

CABLE, 14 gauge, 2 wire, 6 feet long to battery, purchase locally

1шт.

9

1547775C1

CONNECTOR, ELEC

CONNECTOR cable

1шт.

10

1547358C1

ELECTRICAL WIRE

WIRE HARNESS remote, Serial Range: control,-grinder

1шт.

11

1547357C1

CONNECTOR, ELEC

CONNECTOR remote control harness, strain relief

1шт.

12

1547773C1

LOCK NUT

hex, special, 1/2 inch

2шт.
