(4-002) - ELECTRONIC SCALES

Запчасти Case IH 1260 (4-002) - ELECTRONIC SCALES (06) - ELECTRICAL

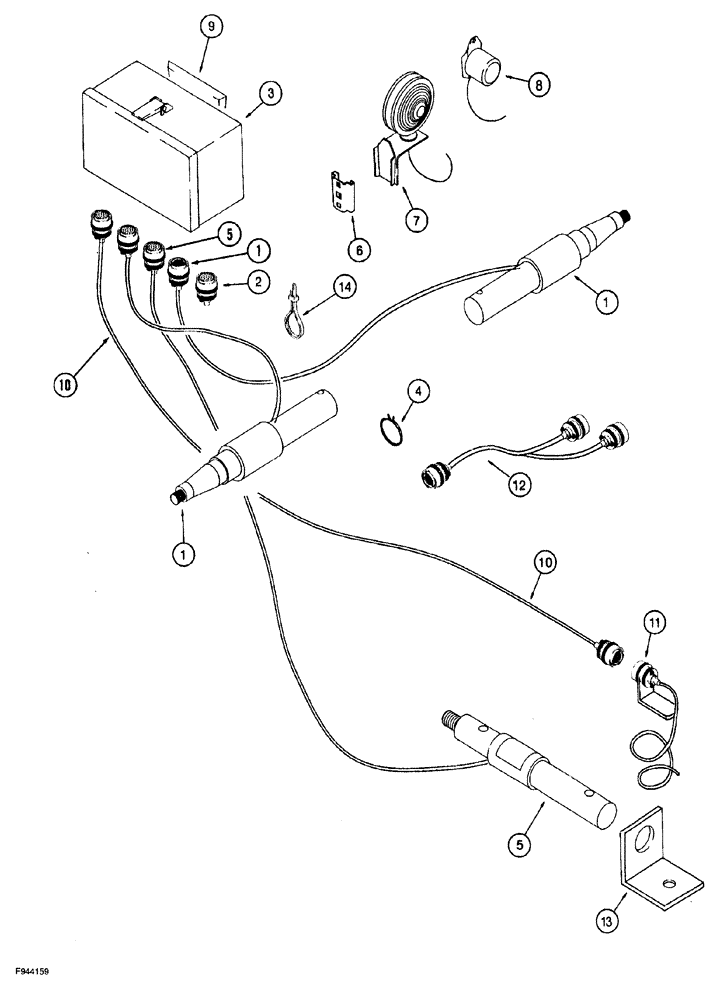

Схема запчастей Case IH 1260 - (4-002) - ELECTRONIC SCALES (06) - ELECTRICAL
3
5
4
12
1
1
10
14
13
8
10
7
11
5
2
9
5
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

1333867C1

AXLE

spindle weight bar, includes harness and connector, 1260 machines

2шт.

1

1333902C1

BAR

AXLE spindle weight bar, includes harness and connector, 1360 machines

2шт.

2

1333868C1

ADAPTER

indicator, 5 pin

1шт.

3

1333841C1

INDICATOR

digital, electronic scale, Weight-Tronix model no 1000, also order 1333868C1, see Ref. 2 above

1шт.

3

1995529C1

SCALE

INDICATOR digital, electronic scale, Weight-Tronix model no. 700E

1шт.

4

548152R1

CLIP

wire

3шт.

5

1978947C1

BAR

HITCH weight, includes harness and connector

1шт.

6

548141R1

BRACKET

mounting, lamp

1шт.

7

REF

INSTRUCTION

LAMP UNIT, order from Machinery Price List

1шт.

8

REF

INSTRUCTION

ALARM audible, order from Machinery Price List

1шт.

9

548151R1

BRACKET

indicator unit mounting

1шт.

10

1265799C1

CABLE

CORD power supply, digital indicator

1шт.

11

547761R91

CONNECTOR,ELECTRIC

female

1шт.

12

1281271C1

ADAPTER

HARNESS

1шт.

13

548148R1

CLEVIS

hitch

1шт.

14

58556C1

CABLE TIE

CABLE STRAP 14" long

12шт.
