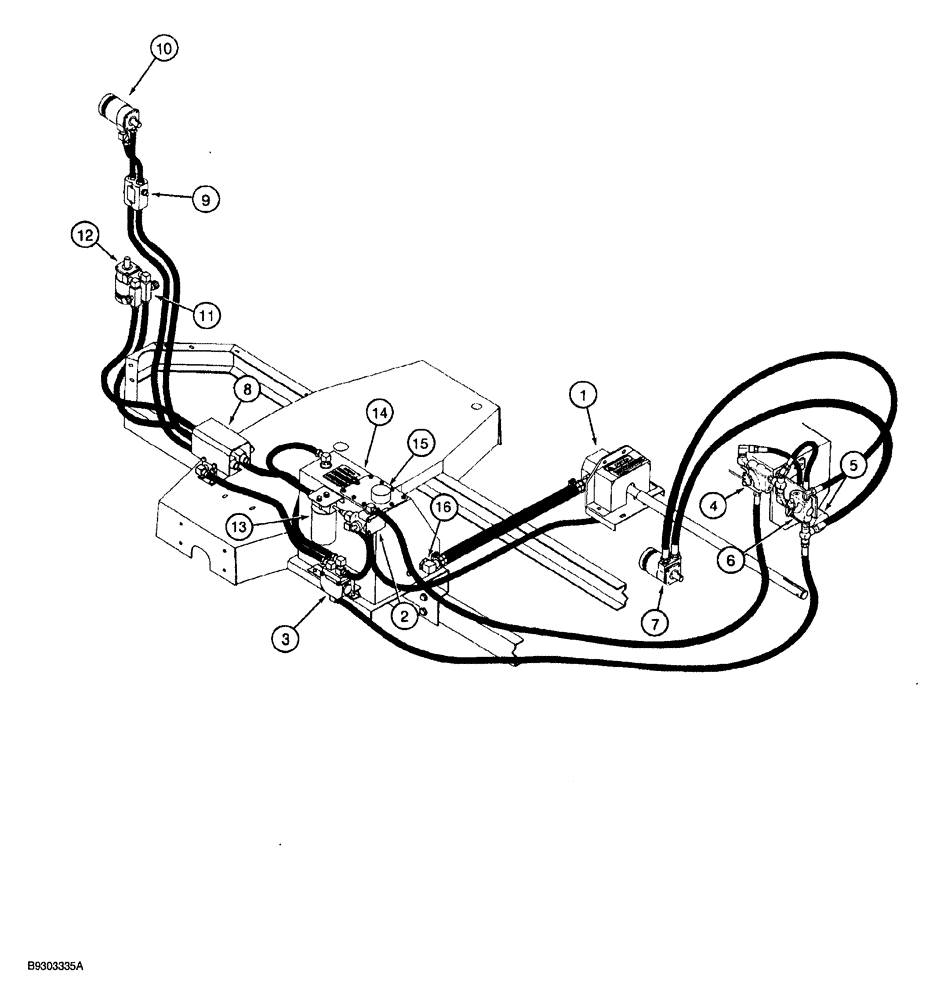

Запчасти Case IH 1260 (4-000) - ALPHABETICAL INDEX, ELECTRICAL (06) - ELECTRICAL

1

Hydraulic Pump (540 or 1000 rpm), See Page 8-17

1шт.

2

System Relief Valve, See Page 8-15

1шт.

3

Flow Divider Valve, See Page 8-15

1шт.

4

Adjustable Flow Control Valve for Auger Feeder Motor, See Page 8-7

1шт.

5

Auger Feeder Motor, See Page 8-7

1шт.

6

Adjustable Flow Control Valve for Roll Feed Motor, See Pages 8-9, 8-11

1шт.

7

Roll Feed Motor, See Pages 8-9, 8-11

1шт.

8

Directional Control Valve (Lift and Swing Motors), See Pages 8-19, 8-21

1шт.

9

Dual Relief Valve for Lift Motor, See Page 8-19

1шт.

10

Lift Motor for Discharge Auger, See Page 8-19

1шт.

11

Adjustable Flow Control Valves for Swing Motor, See Page 8-19

1шт.

12

Swing Motor for Dischange Auger, See Page 8-19

1шт.

13

Return Line System Filter, See Pages 8-13, 8-15

1шт.

15

Fill Cap with Breather, See Page 13

1шт.

16

Outlet Screen Filter, See Page 8-15

1шт.
