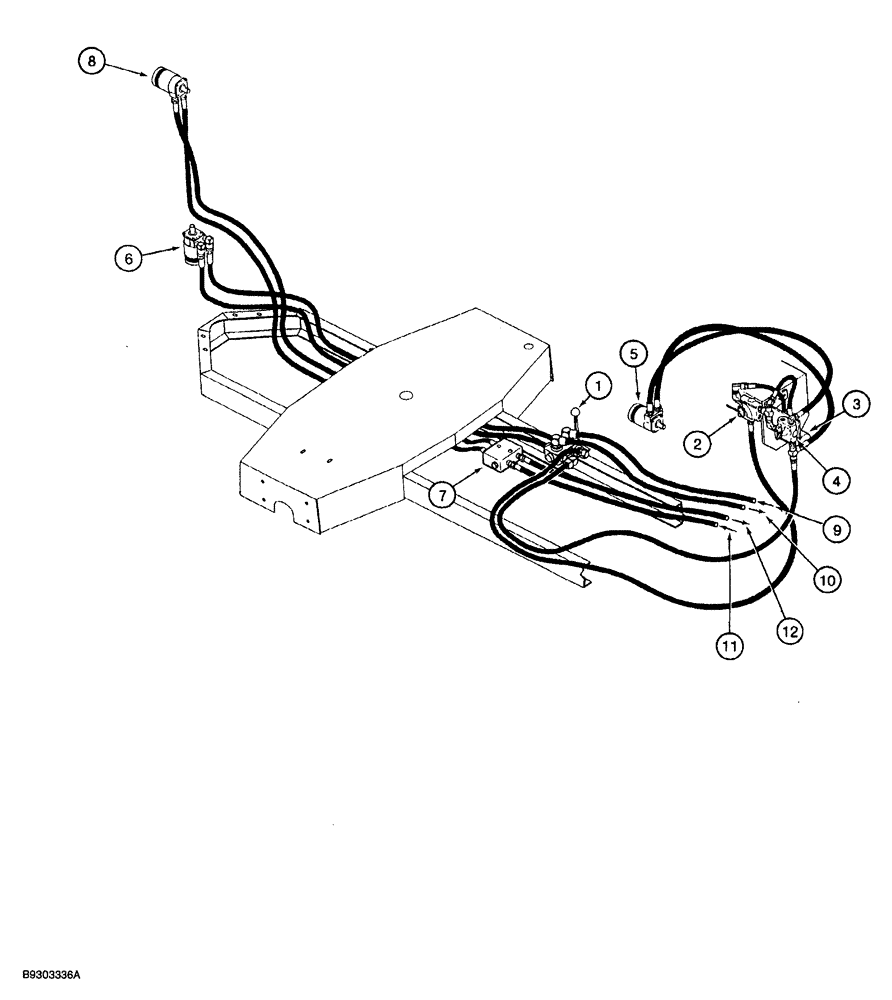

Запчасти Case IH 1260 (1-008) - PICTORIAL INDEX, TRACTOR SOURCED HYDRAULIC SYSTEM (00) - PICTORIAL INDEX

1

Double Selector Valve, See Page 8-3

1шт.

2

Adjustable Flow Control Valve for Auger Feeder Motor, See Pages 8-7, 8-9

1шт.

3

Auger Feeder Motor, See Page 8-7

1шт.

4

Adjustable Flow Control Valve for Roll Feed Motor, See Page 8-9, 8-11

1шт.

5

Roll Feed Moter, See Page 8-9, 8-11

1шт.

6

Swing Motor for Discharge Auger, See Pages 8-3, 8-5

1шт.

7

Relief Valve, See Pages 8-3, 8-5

1шт.

8

Lift Motor for Discharge Auger, See Page 8-3, 8-5

1шт.

9

Pressure Line from Tractor to Selector (Flow Control) Valve

1шт.

10

Return Line to Tractor from Selector (Flow Control) Valve

1шт.

11

Pressure Line from Tractor to Dual Relief Valve for Lift Motor, See Pages 8-3, 8-5

1шт.

12

Return Line to Tractor from Dual Relief Valve for Lift Motor, See Pages 8-3, 8-5

1шт.
