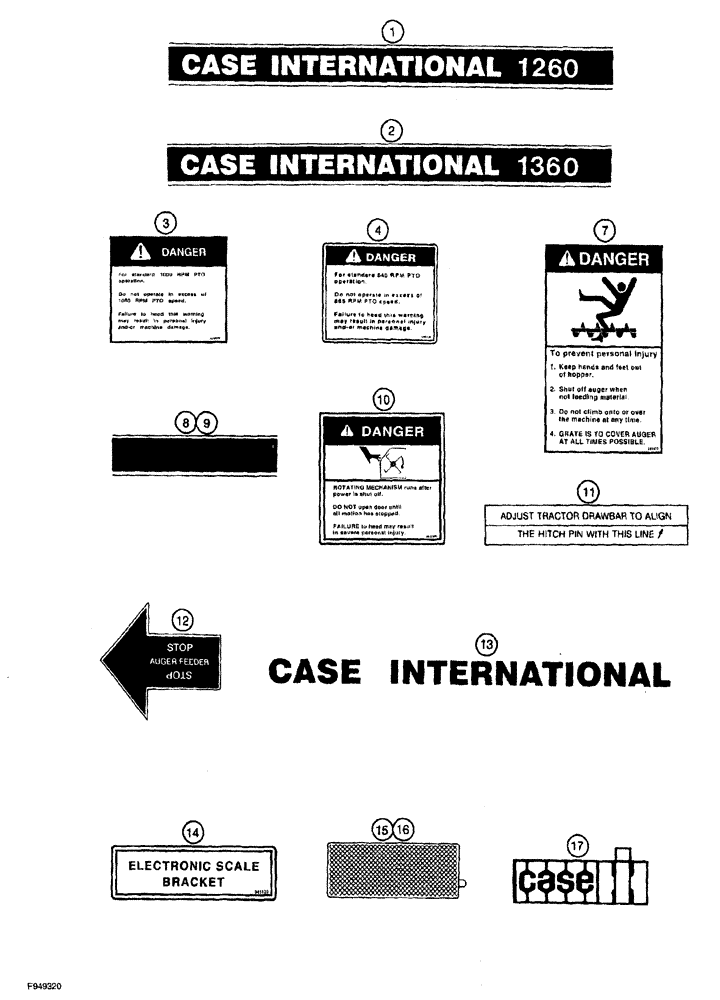

Запчасти Case IH 1260 (9B-034) - DECALS (12) - CHASSIS

1

183897A1

DECAL Case International 1260, left hand, left hand

1шт.

2

183900A1

DECAL Case International 1360, left hand, left hand

1шт.

3

1995698C1

DECAL

Danger, for standard 1 000 rpm PTO operation

1шт.

4

1995699C1

DECAL

Danger, for standard 540 rpm PTO operation

1шт.

7

1281251C2

DECAL

danger, to prevent personal injury

1шт.

8

183898A1

DECAL stripe, left hand, left hand

1шт.

9

183899A1

DECAL stripe, right hand, right hand

1шт.

10

189721A1

DECAL

danger, rotating mechanism

1шт.

11

1253795C1

DECAL

adjust tractor, Serial Range: drawbar-align

1шт.

12

79919C1

DECAL

Stop, auger feeder

1шт.

13

1973427C1

DECAL

Case International

1шт.

14

117050C2

DECAL

electronic scale bracket

1шт.

15

1284374C1

REFLECTOR,Reflector Red

red

2шт.

16

1284365C2

REFLECTOR

amber

1шт.

17

91401C1

DECAL

Case lH trademark

1шт.

18

1281333C1

DECAL

Important, do not add material to supplement hopper while grinding

1шт.

19

190611A1

DECAL

Model 1360 Grinder Mixer weight and measure guide

1шт.

20

190609A1

DECAL

Model 1260 Grinder Mixer weight and measure guide

1шт.

21

117057C1

DECAL

level indicator, 7-8-9

1шт.

22

117056C1

DECAL

level indicator, 4-5-6

1шт.

23

117055C1

DECAL

level indicator, 1-2-3

1шт.

24

79914C2

DECAL

Danger, check for clearance of overhead electrical wires

1шт.

25

189720A1

DECAL

Warning, moving part hazard

1-3шт.

26

128490C1

DECAL

grease symbol

3шт.

27

79921C1

DECAL

Check Oil Reservoir

1шт.

28

189727A1

DECAL

Caution, implement must be hitched to standardized drawbar

1шт.

29

80672C1

DECAL

Danger, rotating drivelme, contact can cause death

1шт.

30

79843C1

DECAL

star/stop unloading auger

1шт.

31

135706A1

DECAL

Caution, read operator's manual

1шт.

33

1000622R7

DECAL

DECAL Warning, do not open cover

4шт.

34

1256660C1

DECAL

DECAL discharge auger swing, in/out, auger feeder

1шт.

36

6849178

WALL

STRIP anti skid

2шт.

37

79920C1

DECAL

Important, auger must be properly engaged before clamping

1шт.

39

1978891C1

DECAL

Model 700E, scale indicator

1шт.

39

97768C1

DECAL

Model 1000, scale indicator, not shown

1шт.

41

1547361C1

DECAL

control pattern, tractor remote

1шт.

42

189726A1

DECAL

Warning, to prevent serious injury or death from moving parts

1шт.

1326528C1

DECAL

Danger, shield missing, do not operate, not shown

1шт.
