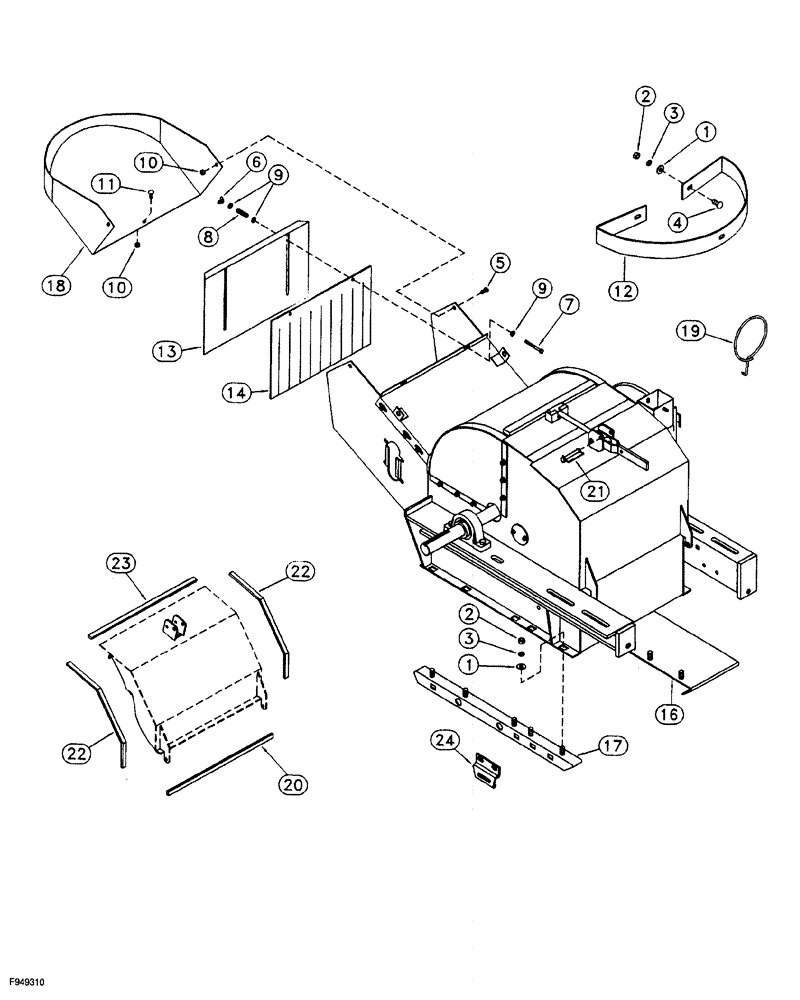

Запчасти Case IH 1260 (9B-024) - HAMMERMILL THROAT ASSEMBLY, 1260 MACHINES (12) - CHASSIS

1

495-21056

WASHER,1/2"

flat, 9/16 x 1-3/8 x 7/64 inch

12шт.

2

425-108

NUT,1/2" - 13, Gr 5

12шт.

3

80679

LOCK WASHER,1/20.507 CST ZND

12шт.

4

434-816

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5

carriage, 1/2 NC x 1 inch

2шт.

5

413-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

2шт.

6

129-419

WING NUT,5/16"-18

5/16 inch NC

2шт.

7

413-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

2шт.

8

475801R1

SPRING

compression

2шт.

9

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 3/32")

6шт.

10

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

3шт.

11

434-510

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 5/8", Gr 5

5/16 NC x 5/8 inch

1шт.

12

75908C1

SUPPORT

screen

1шт.

13

1281237C1

PLATE

feed control

1шт.

14

1281236C1

FLAP

hammermill throat

1шт.

16

175773A1

ANGLE

rear

1шт.

17

135600A1

ANGLE

hammermill

1шт.

18

135315A1

CONTAINER

BASKET, 20 inch, hammermill

1шт.

19

475805R1

HOOK

screen

1шт.

20

76973C1

SEALING STRIP

sealing, 3/8 x 1 x 20 inch

1шт.

21

76381C1

PIN

snap

1шт.

22

1281166C1

SEALING STRIP

sealing, 3/8 x 1/4 x 18-1/2 inch

2шт.

23

76971C1

SEALING STRIP

sealing, 1/4 x 3/4 x 20 inch

1шт.

24

183982A1

BRACKET

idler

1шт.

542049R1

SCREEN

1/8 inch diameter holes

1шт.

101320C1

SCREEN

5/32 inch diameter holes

1шт.

542050R1

SCREEN

3/16 inch diameter holes

1шт.

542051R1

SCREEN

1/4 inch diameter holes

1шт.

542909R1

SCREEN

5/16 inch diameter holes

1шт.

542052R1

SCREEN

3/8 inch diameter holes

1шт.

542054R1

SCREEN

1/2 inch diameter holes

1шт.

542055R1

SCREEN

5/8 inch diameter holes

1шт.

542056R1

SCREEN

3/4 inch diameter holes

1шт.

542057R1

SCREEN

1 inch diameter holes

1шт.

542058R1

SCREEN

1-1/4 inch diameter holes

1шт.

542059R1

SCREEN

1-1/2 inch diameter holes

1шт.

542060R1

SCREEN

2 inch diameter holes

1шт.
