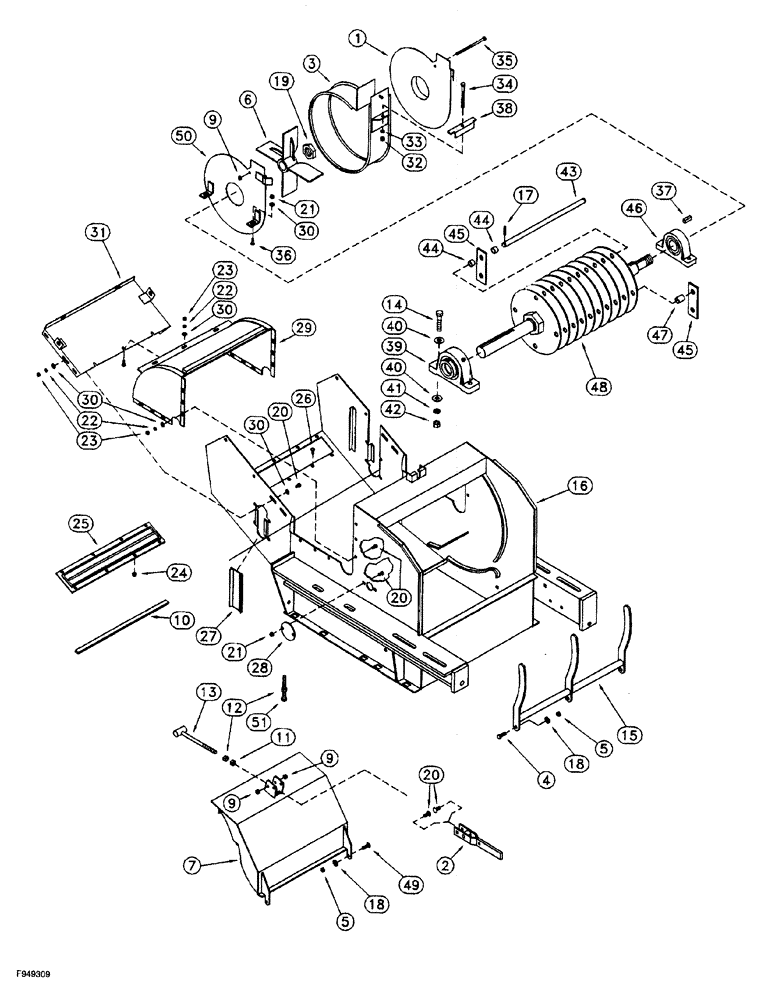

Запчасти Case IH 1260 (9B-022) - HAMMERMILL ASSEMBLY, 1260 MACHINES (12) - CHASSIS

1

79778C1

PLATE

rear side

1шт.

2

79739C1

HANDLE

locking

1шт.

3

79774C1

SUPPORT

HOUSING fan wrapper

1шт.

4

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

5

231-4146

NUT,3/8"-16, GB

4шт.

6

475768R1

FAN

dust collector

1шт.

7

133806A1

DOOR

hammermill

1шт.

8

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

5шт.

9

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

3шт.

10

76971C1

SEALING STRIP

sealing, 1/4 x 3/4 x 20 inch

1шт.

11

231-4148

NUT,1/2"-13, GB

hex, self locking, 1/2 inch NC

1шт.

12

425-108

NUT,1/2" - 13, Gr 5

4шт.

13

145747C1

HANDLE

T-bar

1шт.

14

413-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

4шт.

15

133808A1

SUPPORT

screen

1шт.

16

133810A1

HOUSING

main hammermill

1шт.

17

38-11620

PIN,1/4" x 1 1/4", Slotted

8шт.

18

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch)

4шт.

19

IH219779

NUT

hex, jam, 1-1/2 inch NF

1шт.

20

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

22шт.

21

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

22

492-11031

LOCK WASHER,5/16"

18шт.

23

425-105

NUT,5/16"-18, G5

18шт.

24

425-284

FLANGE NUT,Flg, 1/4"-20.G5

hex flange, 1/4 inch NC

8шт.

25

77986C1

MAGNET, 18 inch

1шт.

26

442-12512

SCREW,Cross Oval Hd, 1/4"-20 x 3/4"

machine, oval Phillip, 1/4 NC x 5/8 inch

8шт.

27

475848R1

COVER

hopper

2шт.

28

475809R1

RETAINER

PLATE hammer rod removal

1шт.

29

135926A1

HOOD

hammermill

1шт.

30

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 3/32")

24шт.

31

485863R1

COVER

roll feed

1шт.

32

425-106

NUT,3/8"-16, Cl 5

1шт.

33

492-11038

LOCK WASHER,3/8"

1шт.

34

413-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

hex, 3/8 NC x 3-1/2 inch

1шт.

35

413-580

BOLT,Hex, 5/16" - 18 x 5", Gr 5

1шт.

36

433-520

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 1 1/4", Gr 5

BOLT carriage, 5/16 NC x 1-1/4 inch

2шт.

37

Q87

KEY,3/8" Sq x 1 1/2", Par

square, 3/8 x 1-1/4 inch

1шт.

38

79775C1

CLAMP

pull down

1шт.

39

485936R91

BEARING CARRIER

pillow block

1шт.

40

495-11066

WASHER,5/8", SAE

flat, 21/32 x 1-5/16 x 3/32 inch

8шт.

41

492-11062

BEARING WASHER,5/8"

4шт.

42

425-1010

NUT,5/8"-11, G5

4шт.

43

475766R1

ROD

hammer

4шт.

44

555696R1

SPACER,3/4" Pipe x 5/8"

tubular, 3/4 x 5/8 inch

36шт.

45

476672R91

HAMMER

TOOL hammer, set of two

18шт.

45

491393R91

PACKAGE

HAMMER, set of 36

1шт.

46

475764R91

BEARING ASSY,5" OD x 2.38"

pillow block

1шт.

47

582542R1

SPACER,3/4" Pipe x 1 1/4"

tubular, 3/4 x 1-1/4 inch

18шт.

48

76457C1

SHAFT

hammermill, component parts not serviced separately

1шт.

49

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

1шт.

50

79777C1

PLATE

front side

1шт.

51

413-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

3шт.
